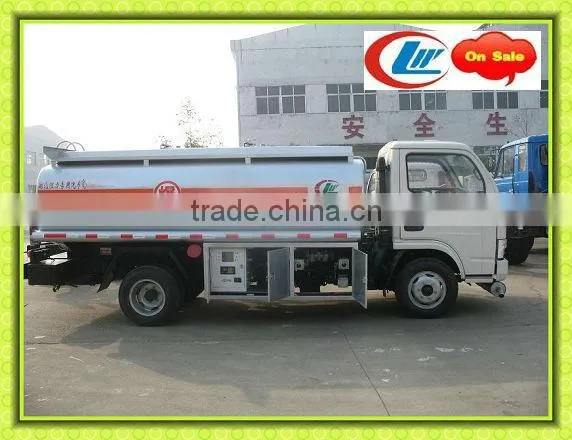

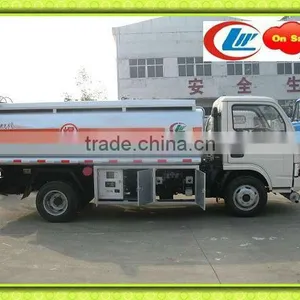

Fuel Truck DFAC 5cbm high-capacity oil tank truck,fuel tank truck

Item

unit

parameter

Vehicle model

CLW5051GJY Tank truck

Chassis model

EQ1051G51DJ3A

Overall dimensions

mm

5985×2000×2300

Body internal dimensions

3800/1450/900

Fact cubage

L

4000-5000

GVW

kg

Appro×5440

Rated loading capacity

Appro×1980

Mass in working order

Appro×3330

Wheel base

mm

3300

F/R track base

1506,1404,1380/1466,1458,1458

Front/rear overhang

962/1723,1032/1653

Approach/departure angle

°

21/14,17/14

Max speed

km/h

95

Engine

Engine model

Engine manufacturer

Exhaust

Power

CY4100ZLQ

Dongfeng Chaoyang Diesel Engine Co., Ltd.

3707

70

Fuel type

Diesel

Number of axles

2

Axle-load

1640/3800

Pieces of spring

6/8+4,8/9+5

Number of tires

6

Tire specification

6.50-16,7.00-16

Equipment

Meterial:5mm carbon steel.can choose flow meter, tankerpiston and bobbin disk
Tank can be separated to several unattached small tanks to fill different fuels

Introduction

The trucks are mainly used in the petrochemical sector of oil, chemical liquid transport, with oil, pump oil, a variety of oil equipment, sub-let and other functions. Independent sub-warehouses, equipment can be divided into different oil products, chemicals, food. Designed to achieve pump into pump-off form, into the pump, pump out the form, however, had artesian table, but the table functions.

Production cycle

5-7 days

Warranty

12 month,from the date of supply
