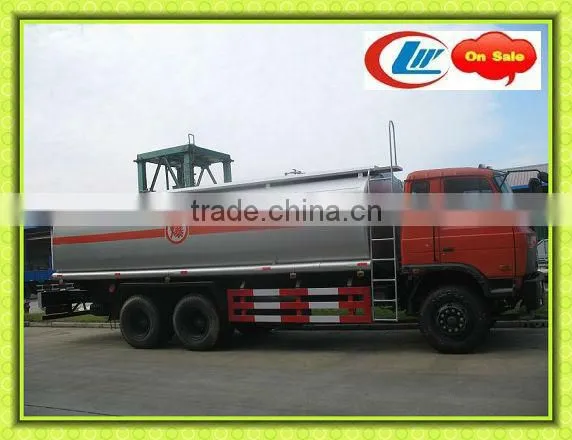

6X4 20,000L Oil Transportation Tank Truck, Oil Tank Truck,used Oil Trucks

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Storage:

Oil

Drive Wheel:

6x4

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Oil

Drive Wheel 6x4

Horsepower 150 - 250hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 15001 - 30000L

Engine Capacity 5880

Dimensions (L x W x H) (mm) 9600*2495*3500

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW5252GYY3

Gross Vehicle Weight 25000

Specifications

oil transportation tank truck
1.Brand:Dongfeng
2.Capacity: 20,000L
3.Engine: Cummins C210-20
4. OEM

1. Contact Information

2. Factory Certifications

the oil transportation tank truck are using to transport oil,diesel ,the trucks are certified by pressure vessel

Product	Dongfeng oil transportation tank truck
Chassis type	EQ1254GBJ
Cubage(cbm)	18-22
Parameters	Overall dimension length/width/height (mm)	9600×2495×3500
	Total Mass(kg)	25000

	Kerb Mass(kg)	10805
	Approach angle/ Departure angle(mm)	16/12
	Front suspension/rear suspension(mm)	962/1733
	Fuel Type	diesel
	Fuel Consumption/100 km
	Max Speed	90
Engine	Type	EQB210-20
	Displacement/Power(kw)
	Manufacturer
	Type
Chassis	Drive type	4×2
	Wheelbase(mm)	4350+1300
	Tread(front/rear)	1506,1404,1380/1466,1458
	Front axle	5T
	Rear axle	Double 10 T
	Steering gear	Duel-armed steering wheel,recirculating ball steering
	Transmission	5 forward gear,1 reverse gear,mechanical trasmission
	Clutch	Uniwafer,dry diaphragm spring clutch
	Braking system	Brake fluid system, drum brakechoose to fixair braking.
	Cab	Non-longheaded,single row cab
	Number of spring axle(front/rear)	6/8+4,8/9+5
	Tire Type	6.50-16
	Air-condition	Choose to fix
