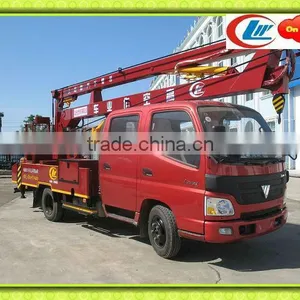

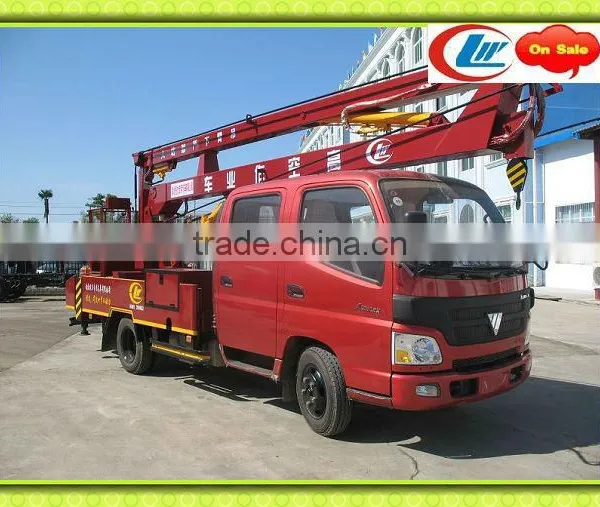

Foton 4x2 High-altitude Operation Truck,hydraulic aerial cage
- 500 Set / Sets per Month
- Any port of China
-
Foton 14m mobile platform truck,aerial operation vehicle
-
Foton electric platform truck,hydraulic platform truck
-
Foton truck with elevated platform,platform operation truck,high platform truck
-
Foton street high-working truck,overhead working truck
-
DongFeng 145 High-altitude Truck,high platform truck,platform operation truck
-
DongFeng 16m aerial lift,high platform truck
Product Details
| Transmission Type: | Manual | Condition: | New | Emission Standard: | Euro 2 |
| Fuel Type: | Diesel | Dimensions (L x W x H) (mm): | 6600*1900*2850 | Place of Origin: | Hubei, China |
| Brand Name: | CLW | Model Number: | CLW5052JGKC-2 |
Product Description
Specifications
High-altitude Operation TruckWith 3C
Passed the ISO9001-2000
Any quetions can contact me
OEM
High-altitude Operation Truck
Item | unit | parameter | ||
Vehicle model |
| CLW5052JGKC-2 High-altitude Operation Truck | ||
Chassis model |
| BJ1059VCAD6-2 | ||
Overall dimensions | mm | 6600x1900x2850 | ||
| Factual loading | kg | 200 | |
GVW | kg | Appro×4495 | ||
Rated loading capacity | Appro×160 | |||
Mass in working order | Appro×4000 | |||
Body internal dimensions | mm | 3370×1800×400 | ||
Wheel base | 3360 | |||
F/R track base | 1380/1458 | |||
Approach/departure angle | ° | 19/15 | ||
Exhaust/hp | ml/kw | 3707/70 | ||
Max speed | km/h | 95 | ||
Tire specification | 7.00R15,6.50-16 | Engine type | BJ1059VCAD6-2 | |
Traction system | 4×2 | transmission | 5-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 | |
Equipment | max operation height≥15m,max operation radius≥7.3m,max working platform height ≥11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension: 6600x1900x2850,360°turning(left or right),4 H-shape legs. clients can choose hydraulic parts made in China or Italy,to be mentioned. | |||
Engine | Beiqi Foton Motor Co., Ltd BJ1059VCAD6-2 95HP | |||
Production cycle | 25-30 days | |||
1. Contact Information
2. Factory Certifications
3. Production Pictures:
