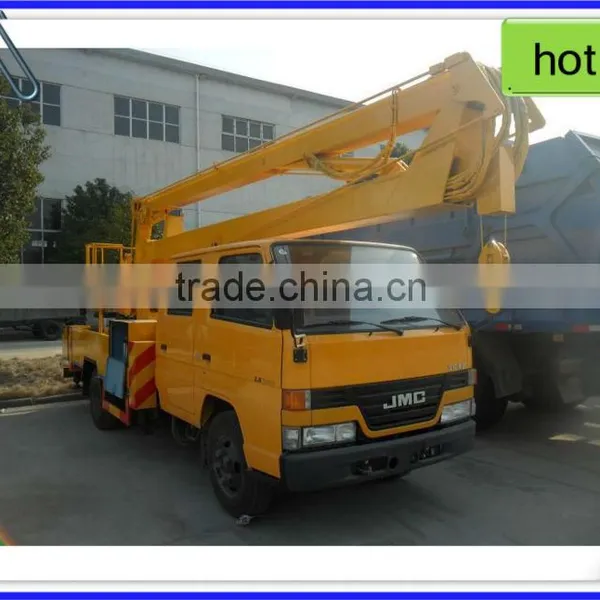

JMC 16m overhead working truck for hot sale,high platform truck

Specifications

JMC 16m overhead working truck for hot sale
1.Lifting up and down
2.360 rotation
3/3C,ISO
4/OEM

JMC 16m overhead working truck for hot sale
The main functions and features

1--- the high-altitude vehicles superior performance, the use of a machine, safe and reliable, compact, its maximum working height 18 meters, 8.6 meters maximum working range.

2-- adopt folding jib, novel structure.The rotary mechanism drives the turntable can rotate 360 degrees rotation, can conveniently, accurately will work in the bucket operating personnel to air required for the position.

3---equipped with maximum weight of 1.6 tonnes lifting device.

4---leg span, good stability, which can be operated simultaneously or individually, to adapt to a variety of conditions.The on and off interlock, effectively preventing wrong operation, safe and reliable.The multifunctional integral handle, convenient operation, smooth, comfortable.

5---equipped with emergency power unit, effectively deal with sudden failure

Vehicle information list
Truck brand	CLW
Gross weight	5490	Overall dimension	7300*2000*3100
Curb weight	5165	F/R overhang	1015/2025
A/D angle	27/11	Wheelbase	3360
Axles	2	Max speed	90
Axles loading	1940/3550
Chassis information list
Chassis model	JX1060TSG24
Brand Name	JMC
Overall dimension	7300*2000*3100	Tyre quantity	6
A/D angle	27/11	Tyre size	7.00R16LT
Leaf spring quantity	7/5+5	Front track	1385
Fuel type	Diesel	Rear track	1425
Standard	GB3847-2005,GB17691-2005 III
Engine model		Displacement	Power
JX493ZLQ4		2771	80
