Home > Transportation > Specialized Vehicle > Water Truck > DongFeng 140 8T Water Spray Truck,spray Valve Water Trucks

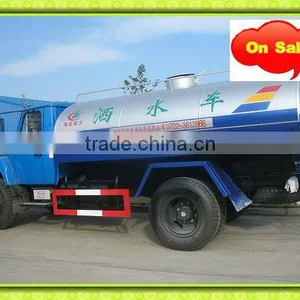

DongFeng 140 8T Water Spray Truck,spray Valve Water Trucks

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

4x2

Fuel:

Diesel

Transmission Type:

Manual

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x2

Fuel Diesel

Transmission Type Manual

Condition New

Sprinkling Area (m) 12 - 16m

Emission Standard Euro 2

Engine Capacity 4 - 6L

Tank Volume 5001 - 10000L

Dimensions (L x W x H) (mm) 7350*2470*2800

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW5090GSS

Gross Vehicle Weight 9550

Certification ISO

Specifications

DongFeng 140 8T water spray truck
Equipped with front(rear,side)sprinkler(sprinkling width>14m )
dongfeng 4x2
8000L
OEM

DongFeng 140 8T water spray truck

Item		unit	parameter
Vehicle model			CLW5090GSS Water Truck
Chassis model			EQ1092F19DJ
Overall dimensions		mm	7350×2470×2800
	Fact cubage	L	7000-8000
	GVW	kg	Appro×9550
	Rated loading capacity		Appro×4000
	Mass in working order		Appro×5355
	Body internal dimensions	mm	3800×2000×1150
	Wheel base		3950
	F/R track base		1810/1800
	Approach/departure angle	°	34/19
Exhaust/hp		ml/kw	4257/105
Max speed		km/h	85
Tire specification		9.00-20	Engine type	YC4E140-20
Traction system		4×2	transmission	6-speed with over drive
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	3
Equipment		Equipped with front(rear,side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with CLW pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze
Engine		Guangxi Yulin diesel engine
Production cycle		5-7 days
Warranty		12 month,from the date of supply
