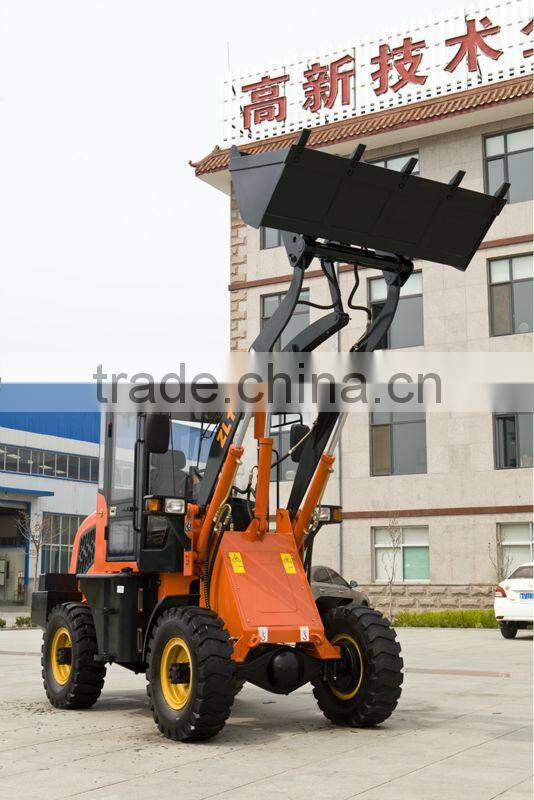

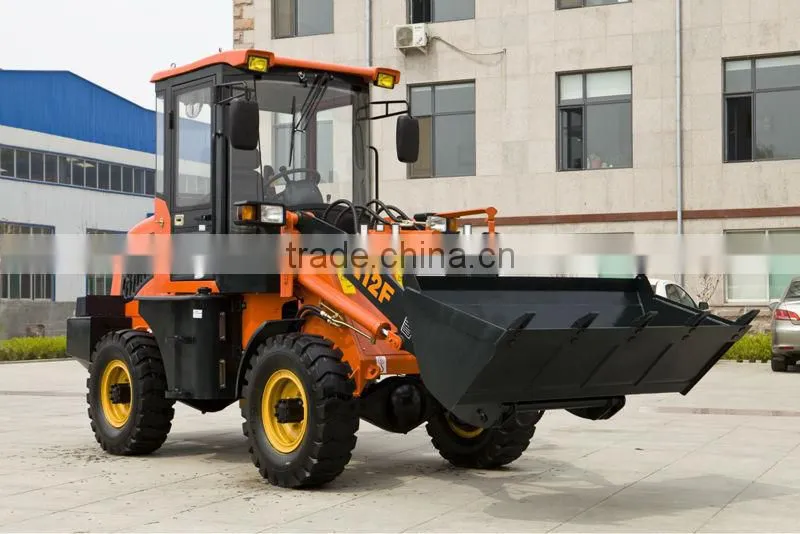

wheel loader mini ZL12F

Specifications

wheel loader mini ZL12F
1)CE mark
2)Changchai or Cummins Engine
3)Quick hitch
4)SEM Torque Converter

Features


1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation and achieves higher economical and production efficiency.

2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieve short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.

3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.

4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.

5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easyadjustment. The wheel loader offers the driver a comfortable drive and wide view.



Technical Specifications



Main Technical Parameter of ZL12F
Item	Parameter
Rated load (kg)	1200
Bucket capacity (m3)	0.6
Wheel tread (mm)	1400
Wheel base (mm)	2005
Min turning radius (mm)	4500
Min ground clearance (mm)	260
Dumping height (mm)	2650
Corresponding dumping reach (mm)	1020
Lifting time (s)	4
Hydraulic cycle time (s)	8.5
Maximum excavating force (KN)	36
Drive mode	Four are Drive
Machine weight (kg)	3100
Overall dimensions (mm) (Length*width*height)	4800*1730*2720
Engine model	Changchai4L68
Rated power of engine (kw)	37
Rated speed of engine (rpm)	2200
