LIUGONG best bulldozer

Name: LIUGONG best bulldozer
Brand: LIUGONG
Availability: InStock

FOB Price

USD $10,000 - $100,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangxi, China	Brand Name:	LIUGONG	Model Number:	CLGB230I
Condition:	New	Moving Type:	Crawler Bulldozer	Machine Weight:	24,539kg
Dimension(Long * Breadth * High):	688037253510mm	After-sales Service Provided:	Overseas service center available

Packaging Details

Bulk or as required

Product Description

Specifications

LIUGONG best bulldozer
High quality with competitive price
Excellent performance
Good after-sales service
ISO

LIUGONG best bulldozer

Introduce:

LIUGONG Bulldozer CLGB230I(D)

Prameters:

Model	CLGB230I(D)
Engine
Emission Regulation	Tier 1 / Stage I
Make	ChongQing Cummins
Gross Power	179 kW (243 hp) @ 2,000 rpm
Net Power	169 kW (230 hp) @ 2,000 rpm
Peak Torque	1,050 N m @ 1,400 rpm
Number of Cylinders	6
Aspiration	turbocharged
Displacement	14 L
TRANSMISSION
Transmission Type	Power shift
Maximum Travel Speed, fwd	11.8 km/h
Maximum Travel Speed, rev	14.3 km/h
Number of Speeds, fwd	3
Number of Speeds, rev	3
ELECTRICAL SYSTEM
System Voltage	24 V
UNDERCARRIAGE
Shoe Width	560 mm
Number of Shoes per Side	39
Number of Upper Rollers per Side	2
Number of Bottom Rollers per Side	7
Shoe Ground Pressure	83.1 kPa
Track on Ground	2,840 mm

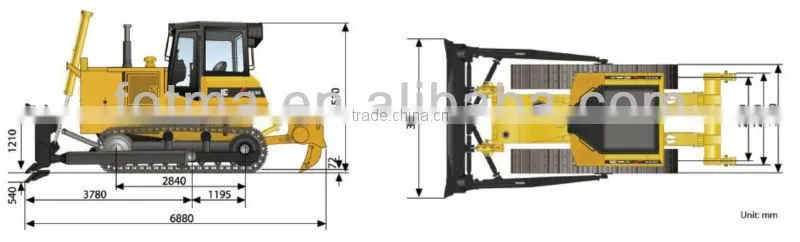

DIMENSIONS
Overall Length	6,880 mm
Height to Top of Cab	3,510 mm
Ground Clearance	405 mm
OPERATING WEIGHTS
Operating Weight	24,539kg
BLADE PERFORMANCE
Blade Type (referenced)	straight
Blade Capacity (referenced)	7.8 m3
Blade Width	3,725 mm
Blade Height	1,395 mm
Blade Depth below Ground	540 mm
Blade Lift above Ground	1,210 mm
Blade Tilt	735 mm
SERVICE CAPACITIES
Fuel Tank	480 L
Engine Oil	45 L
Cooling System	79 L
Hydraulic System Total	110 L
Transmission and Torque Converter	122 L
Final Drives, each	82 L
