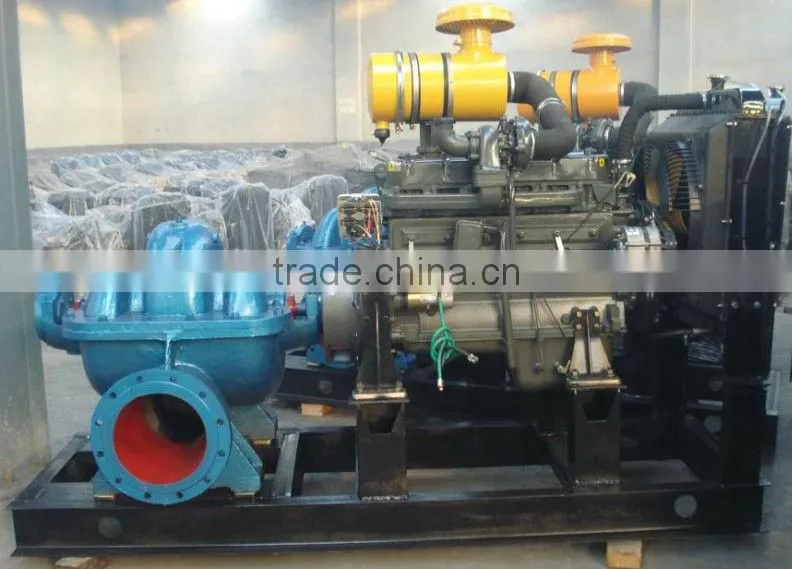

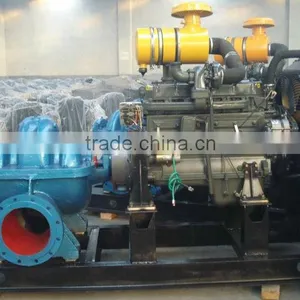

Diesel Water Pump for Fire fighting
USD $1 - $10,000
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Ningbo
You May Like
Product Details
| Brand Name | WD | Theory | Other, water pump | |
| Structure | Multistage Pump | Usage | Water | |
| Power | Other, diesel | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Fire |
Product Description
Specifications
1. Diesel Water Pump for Irrigation, Fire fighting, flood draining2. Ricardo DIESEL Engine
3. Single-stage centrifugal pump
Specifications
1. Diesel Water Pump for Irrigation, Fire fighting, flood draining
2. Ricardo DIESEL Engine
3. Single-stage centrifugal pump
4. Best technical support
5. Treated water: Fresh Water, river water
Rated Output/Max output(KW): 132KW(180HP)/145KW(198HP)
Rated Speed (r/min): 1500
Starting Method: 24V DC Electric motor
Cooling Method: Closed water cooling
Type: Closed water cooling, in-line, 4 stroke, humid liner, direct injection
| Water Pump Parameters | 14SH-19 |
| Type | horizontal,single stage,middle-split,double suction,centrifugal |
| Outflow | 1260m3/h |
| Head lift | 27m |
| Suction lift | 3.5m |
| Shaft Power | 102KW |
| Inlet diameter | 350mm(14inch) |
| Outlet diameter | 300mm(12inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | Stuffing seal |
| Control System | Display oil pressure,self-charge currency,water temperature,oil temperature.Electrical key,Start button. |
| Standard Equipments | Diesel engine: 1set |
| Water pump: 1set | |
| Steel mounting base: 1set | |
| Fuel tank:8hr working capacity | |
| Instrument panel: 1set | |
| Engine accessary kit box:1set | |
| Technic file: 1set |
| Optional equipments | 1.Maintenance battery:12v DC |
| 2.Weather canopy:four windows | |
| 3.Two-wheel trailer | |
| 4.Four-wheel trailer | |
| 5.Engine-control box |
