Home > Products > Construction Equipment > road recovery

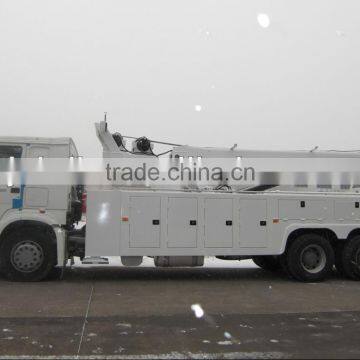

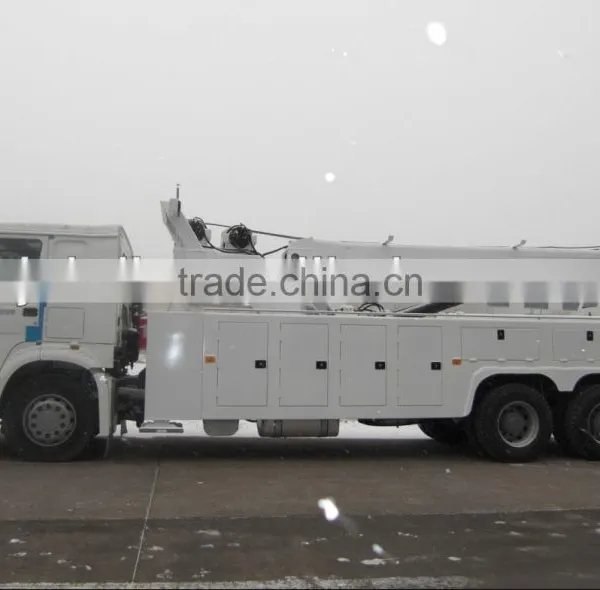

road recovery
- 200 Set / Sets per Month
- Tianjin
You May Like
Product Details
Fuel Type | Diesel | Emission Standard | Euro 3 | |
Condition | New | Transmission Type | Manual | |
Place of Origin | Shandong, China | Brand Name | tw | |
Model Number | st5251 |
NUDE
Product Description
Specifications
road recovery1.usa technology
2.360 rotator boom
3.from 5ton to 60ton
4.Sinotruk howo chassis
road recovery
TECHNICAL SPECIFICATION:
Wrecker Model | ST5381TQZCZ | ||
Chassis Model | ZZ1317N4667C | ||
Engine Model | WD615.95 WD615.96 WD615.95E WD615.96E | ||
kw/HP Engine Power | 247,276,247,276 | ||
Outline Dimension(L×W×H) mm | 11210,11235×2496×3820 | ||
Wheel Base (mm) | 1800+4600+1350 1800+4575+1400 1800+4600+1400 | ||
Track(front/rear)mm | 2022/1830 2041/1830 | ||
No. of Tire | 12 | ||
Tire Specification | 12.00-20 | ||
Approach Angle/Departure Angle | 16°/16° | ||
Front Overhang/Rear Overhang (mm) | 1500/1960 | ||
Free loading | Reorganize and outfit quality(Kg) | 27870 | |
Boom | Max. lifting mass (Kg) | 50000 | |
Extension Stroke (mm) | 6000 | ||
Max. Lifting Height (mm) | 12500 | ||
Max. Inclination Angle | 60° | ||
Rotating Angle | 360° | ||
Range of Inclination Angle | 0~60° | ||
Underlift | Original Lifting Mass Kg | 25000 | |
Rating Lifting Mass Kg | 12500 | ||
Rating Lifting Mass Fully Extended Kg | 7800 | ||
Max. Effective Length (mm) | 3390 | ||
Extension Stroke (mm) | 1850 | ||
Range of Inclination Angle | -9°~93° | ||
Folding Angle | 102° | ||
Outriggers | Longitudinal Span between Front Outrigger and Rear Outrigger (mm) | 7765 | |
Transverse Span of Front Outriggers (mm) | 6300 | ||
Transverse Span of Rear Outriggers | 4320 | ||
Rating Towing Mass Kg | 55000 | ||
Rating Pulling Power of Winch KN | 2×250 | ||
Length of Cable Wire m | 50 | ||
2.Specification Of Lifting
(m)Range | (Kg)Towing Mass | |
3.5 | 12500 |
|
4 | 11775 |
|
4.5 | 10234 |
|
5 | 8750 |
|
5.35 | 7800 |
|
Attention: 1.Range means the distance between the point of lifting and the center of rear axis
2. Lifting mass means the mass on the lifting point
3. The specifications are measured with outriggers retracted.
