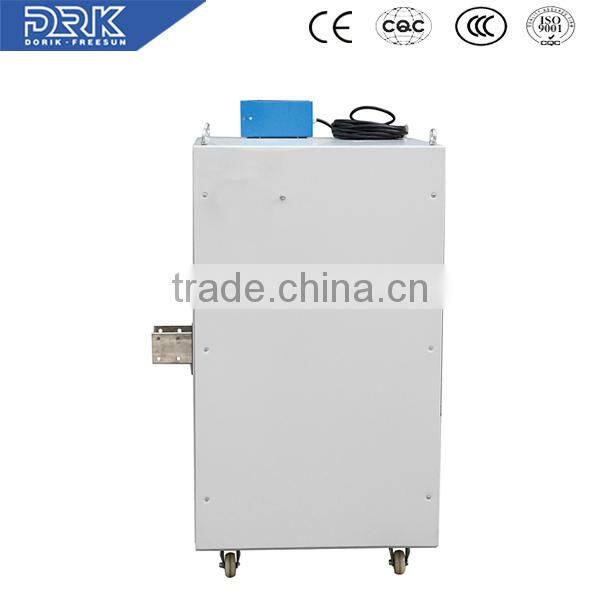

remote control box electrolychemistry power supply
Advantage:
1) small, light and high efficiency
2) High frequency pulse current output
3) flexible use, simple operation
4) Complete protection function
Application: Fine chemistry, sea water, blue-green algae, sodium chloride.
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 18V/36V/48V customizable |
| Output current | DC 2000A/3000A/5000A customizable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Shape dimension
Specification | Size(mm) Outline | ||||
| A | B | C | D | E |
DR-200A-48V | 460 | 460 | 150 | 380 | 60 |
DR-500A-48V | 480 | 520 | 180 | 350 | 80 |
DR-1000A-48V | 500 | 520 | 200 | 350 | 80 |
DR-1500A-48V | 500 | 540 | 600 | 350 | 100 |
2. Working principle & products details
Principle block diagram:
PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;
3.2Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used .
3.4 Full load testing before shipment ;
3.5 Complete protections
3.6 Meet CE requirement .
4.Packing &Shipment
5. Application Fields
Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali electrolysis, water electrolysis.
