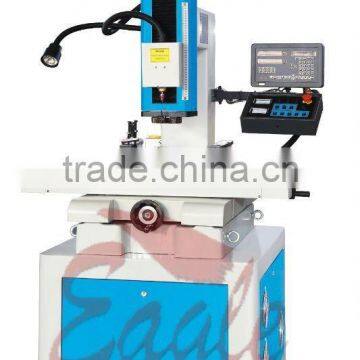

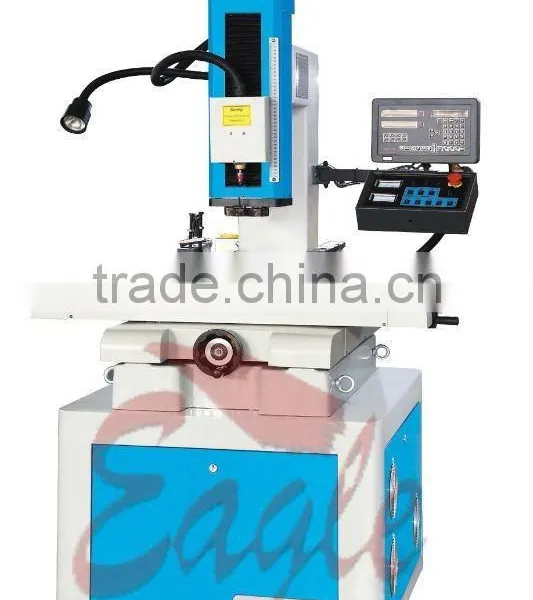

High speed spark erosion drilling machine
- 30 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Shandong, China | Brand Name | EAGLE | |
| Model Number | EDM30 | Certification | CE |
Product Description
High speed spark erosion drilling machine
1.The speed of drilling hole is 30mm-60mm depth per minuter(it is different for different material)
2.Can drill small holes on the various conductive materials,especially stainless steel,chilled steel,copper,aluminium and hard alloy etc.
3.Z axis with fixing function
4.Can dill deep hole with diameters 0.3mm-3mm(thedepth-diameter ratio is 300:1)
5.Can dill wire-cut starting hole,filter hole,jet hole,gas hole,group holes and hole of super depth etc.
6.Can drill on oblique and curved surface directly.
7.Can easily erode the drill and screw tap ect which is broken in the workplace and not destroy the screw thread of the holes.
| Model | EDM30×32 | EDM30A×32 |
| Dimension of working table (mm) | 320×440 | 320×440 |
| Travel of working table (mm) | 250×350 | 250×350 |
| Z axis travel (mm) | 350 | 350 |
| W axis travel (mm) | 300 | 300 |
| Max.distance director to work table (mm) | 50-350 | 50-350 |
| Max.machining current (A) | 30 | 30 |
| Electrode diameter (mm) | Φ 0.3- Φ 3.0 | Φ 0.3-Φ 3.0 |
| Load of table (kg) | 200 | 200 |
| Working liquid | Water | Water |
| Power supply | 380V/50HZ | 380V/50HZ |
| Max.power consumption | 3.5 | 3.5 |
| Machine dimensions (mm) | 920×950×1750 | 920×950×1750 |
| Machine weight (kg) | 600 | 600 |
| Digital display | Two-axis digital display(optional three-axis digital display) | |
| Function of turning | No | Yes |
| Item NO. | 161050 | 161051 |
