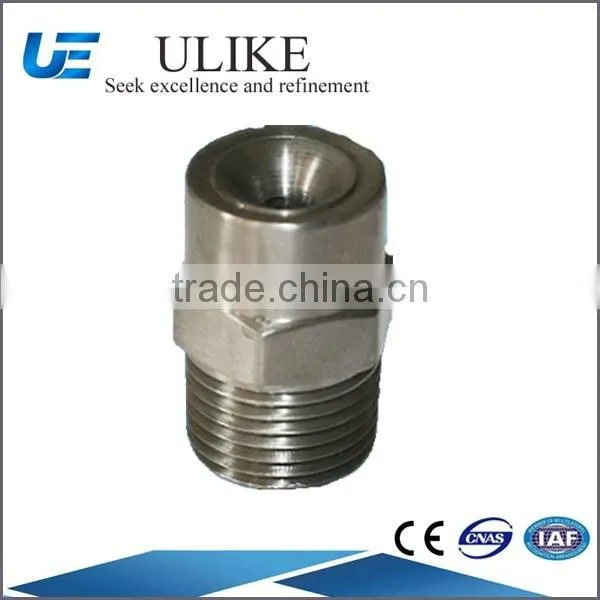

BB Series Full Cone Wide-angle Spray Nozzle

Features :

1. Producing solid cone spray shape and 43-120 degrees spray angle, spray area is round
2.Spraying equally and producing medium to the big droplets under the wide range flows and pressures

3.The leaf blade design is its design mechanism, it owns big and unimpeded channel and advanced jet control.
3.The nozzle can play a very good effect in the jet application areas that need cover a region completely.
4. BB series metal nozzles for male thread connector, B series metal nozzles for female threaded connector.
5. BB and B-series have their own standard angles and extensive angles, special instructions for demanding other angles.

6.Material is option :SS ,Brass ,plastic as choice .

The spray pattern of solid cone nozzle

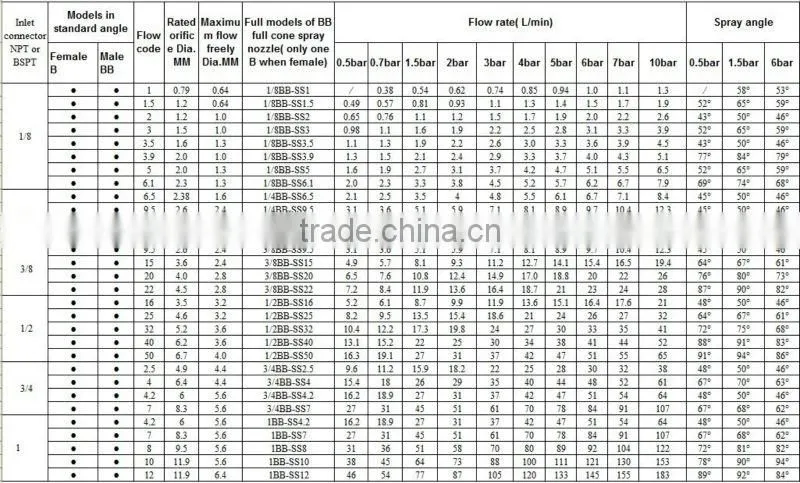

Performance Data:

General applications of full cone nozzle:

Phosphating of metal parts

Car rain test

High-pressure washing

PCB chemical cleaning

Silver plating in mirror manufacture

Net roller cleaning in paper mill

Beverage bottle washing in food industry

Removal of sulfur dioxide(SO2)

Control of nitric oxide(NOX)

Pipe and gas cleaning in tower

Steel continuous casting cooling

Waste gas washing

Quenching and cooling

Fire prevention

Eliminate dust control

Bubble removal

Spray application
