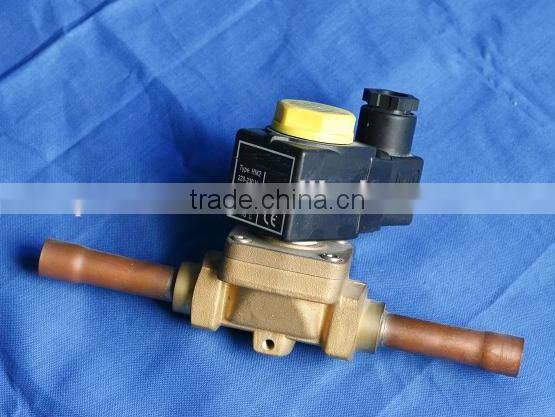

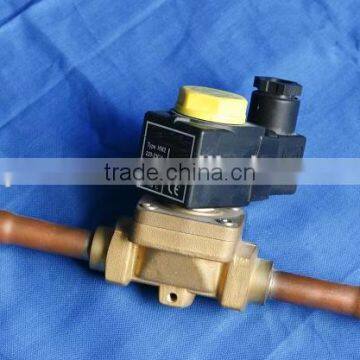

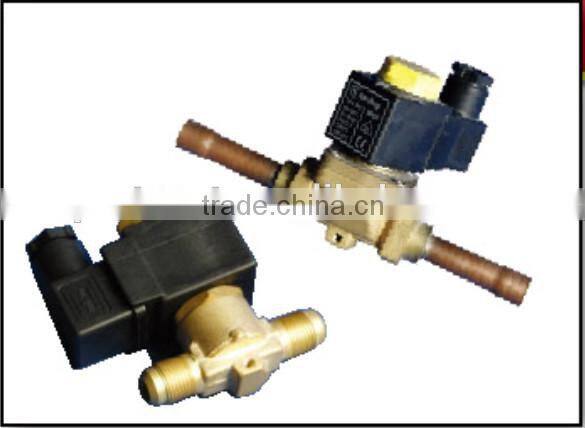

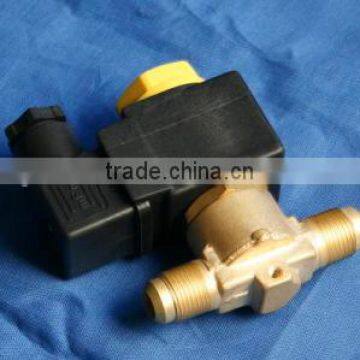

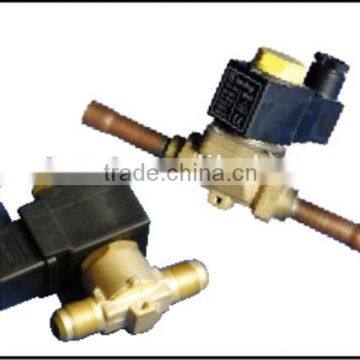

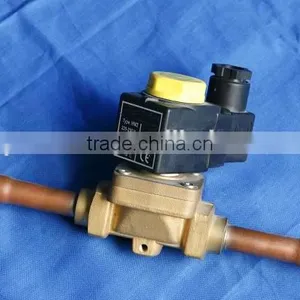

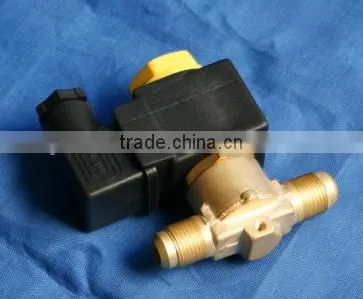

AC and refrigeration solenoid valve
- 10000 Piece / Pieces per Month
- ningbo
Product Details
Brand Name: | partsnet |
Packaging Details
standard package
Product Description
Item No. | Connection Type | Port Size(mm) | M.O.P.D.(bars) | Max pressure (bars) | Kv factor M3/hr | Nominal | Capacity | (KW) | |
R134a | R22 | R407C | R404A | ||||||
SV1020/2 | 1/4SAE | 2.5 | 21 | 32 | 0.175 | 2.95 | 3.15 | 3.28 | 2.08 |
SV1020/3 | 3/8SAE | 3.0 | 21 | 32 | 0.23 | 3.88 | 4.14 | 4.31 | 2.74 |
SV1064/3 | 3/8SAE | 7.0 | 21 | 32 | 0.8 | 6.8 | 9.4 | 9.3 | 8 |
SV1064/4 | 1/2SAE | 7.0 | 21 | 32 | 0.8 | 6.8 | 9.4 | 9.3 | 8 |
SV1070/4 | 1/2SAE | 12.5 | 21 | 32 | 2.2 | 18.7 | 25.7 | 25.6 | 22 |
SV1070/5 | 5/8SAE | 12.5 | 21 | 32 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1050/5 | 5/8SAE | 16.5 | 21 | 32 | 3.8 | 32.3 | 44.5 | 44.2 | 38 |
SV1050/6 | 3/4SAE | 16.5 | 21 | 32 | 4.8 | 40.8 | 56.2 | 55.8 | 48 |
SV1050/7 | 7/8SAE | 16.5 | 21 | 32 | 5.7 | 48.5 | 66.7 | 66.2 | 57 |
SV1090/5 | 5/8SAE | 16.5 | 21 | 32 | 3.8 | 32.3 | 44.5 | 44.2 | 38 |
SV1090/6 | 3/4SAE | 16.5 | 21 | 32 | 4.8 | 40.8 | 56.2 | 55.8 | 48 |
SV1090/7 | 7/8SAE | 16.5 | 21 | 32 | 5.7 | 48.5 | 66.7 | 66.2 | 57 |
SV1028/2 | 1/4ODF | 2.2 | 21 | 32 | 0.15 | 2.53 | 2.7 | 2.81 | 1.79 |
SV1028/3 | 3/8ODF | 3.0 | 21 | 32 | 0.23 | 3.88 | 4.14 | 4.31 | 2.74 |
SV1068/3 | 3/8ODF | 7.0 | 21 | 32 | 0.80 | 6.80 | 9.40 | 9.3 | 8 |
SV1068/4 | 1/2ODF | 7.0 | 21 | 32 | 0.80 | 6.80 | 9.40 | 9.3 | 8 |
SV1078/4 | 1/2ODF | 12.5 | 21 | 32 | 2.2 | 18.7 | 25.7 | 25.6 | 22 |
SV1078/5 | 5/8ODF | 12.5 | 21 | 32 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1078/6 | 3/4ODF | 12.5 | 21 | 32 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1079/7 | 7/8ODF | 12.5 | 21 | 32 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1098/5 | 5/8ODF | 16.5 | 21 | 32 | 3.8 | 32.3 | 44.5 | 44.2 | 38 |
SV1098/6 | 3/4ODF | 16.5 | 21 | 32 | 4.8 | 40.8 | 56.2 | 55.8 | 48 |
SV1098/7 | 7/8ODF | 16.5 | 21 | 32 | 5.7 | 48.5 | 66.7 | 66.2 | 57 |
SV1099/9 | 1-1/8ODF | 16.5 | 21 | 32 | 5.7 | 48.5 | 66.7 | 66.2 | 57 |
