DRO Horizontal Boring and Milling Machine TX68/TX619T

FOB Price

USD $100 - $1,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Yunnan, China
Brand Name	XIASHI	Model Number	Depends on model
Type	Horizontal	CNC or Not	CNC
Voltage	Depends on model	Power(W)	Depends on model
Dimension(LWH)	Depends on model	Weight	Depends on model
Certification	CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

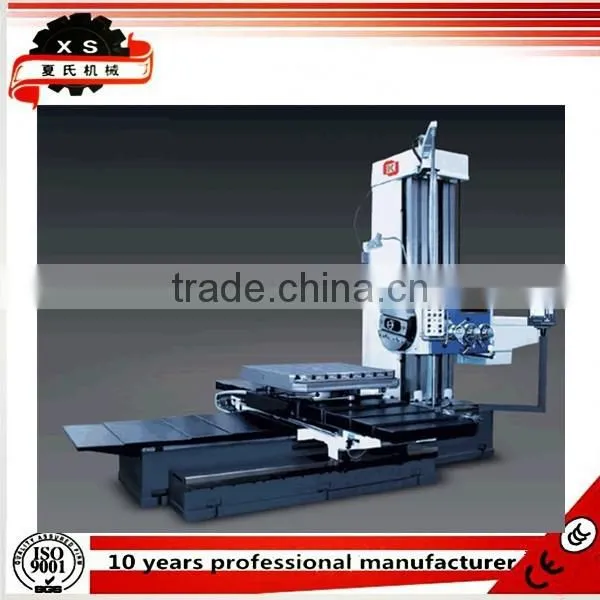

DRO Horizontal Boring And Milling Machine

Table type layout, entire bed design, Column fixed on the bed and spindle head suspend at the side of the column. The down carriage guideway form cross shape structure.
Rotary table models positioning adopts optical positioning device (4×90° manually positioning) or by using angle encoder to realized the 360° any angle indexing
For large models the bed equipped with monolithic auxiliary guideway to ensure the bed superior rigid and expand the cross travel of the machine.
Spindle bearings adopts three layer system composed by facing head spindle hollow spindle & boring spindle. The boring spindle material is 38CrMoAIA, and for hollow spindle use high quality alloy steel.
The spindle clamping method is disk spring clamping and hydraulic loose except the model TX68 and TX619T.

Main technical parameter:

Item	Unit	TX68	TX619T	TX6111D	TX6111C/2	TX6111C/3	TX6113D	TX6113C/2
Spindle diameter	mm	85	90	110	110	110	130	130
Spindle taper	-	Morse 5	Morse 5	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Spindle speed	r/min	20-1000	20-1000	9-1000	9-1000	9-1000	6.6-755	6.6-755
Range of facing head revolution speed	r/min	10-200	10-200	6-221	6-221	6-221	4.4-165	4.4-165
Table size(L X W)	mm	800×1000	800×1000	1100×1200	1100×1200	1100×1200	1400×1600	1400×1600
Max. load of table	kg	2000	2000	2500	4000	4000	10000	10000
Travel of X axis	mm	850	850	1100	1300	1600	2000	2000
Travel of Y axis	mm	757	755	900	1100	1400	1600	1600
Travel of Z axis	mm	1600	1600	1400	1400	1400	2000	2000
ravel of W axis(Spindle travel)	mm	600	600	600	600	600	900	900
Travel of U axis (Travel of facing head slide)	mm	170	170	170	170	170	200	200
