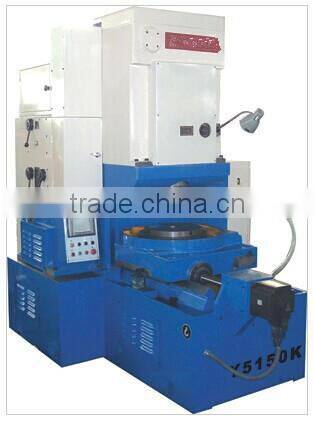

Odinary gear shaping machine Y5150K

 Notification will not be made if the products' colour and parameter change,and product is based solel
on latest sales sample.
Y5150K Gear Shaping Machine is designed for cutting cylindrical disc-type spur gear, cluster gear,
internal gear, external gear, and gear segment.
Upon special request, the machine can be provided with optional attachments for cutting gear rack,
shaft gear, helical gear and little tapered gear.
The machine is featured in smooth running .low noise, versatile function, nice adaptability, easy set-u
and simple operation.
Thus being well-suited for mass batch production of rears adopted on automobile tractors.
The machine can also be used for small batch and job-lot gear production.

Specification

Gear Shaping MachineY5150K  Technical parameter
Model  Unit Y5150K
Max work piece dia. external gear mm 500
Max work piece dia. internal   gear  mm 600
Max module  mm 8

Max stroke length of cutterspindle  mm120

Max width of teeth  mm 100
Distance from cutter center to worktable center mm 0-320
Dia. of work table face  mm 380
Dia. of work table bore  mm 80
rpm
Rough:80, 108, 144
192, 240, 320, 386,515rpm
Precise:108, 165,
192, 292, 320  480,515, 780
Circular feed (cutter dia. is100mm)
 mm 10.-0.56
Cutter spindle back-off at its up-most position 0.4-0.5
Drive motor power  Kw 15
Overall dimensions (L x W xH)  mm 2120X1475X2275
Net Weight 5000
Gross Weight 6000
