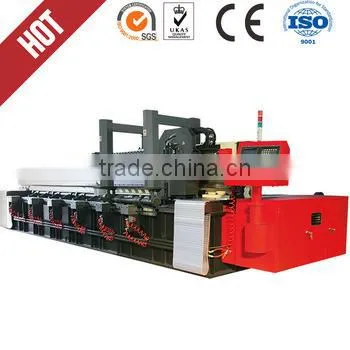

New product stainless steel CNC V groove machine,sheet metal V Grooving machine,V groover machine

FOB Price

USD $1 - $90,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Harsle	Model Number:	1220/4000
After-sales Service Provided:	Engineers available to service machinery overseas

metal plate v-cutting hydraulic grooving lathe /metal sheet grooving and slotting machine

This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced CNC system and innovative design with the advantages

of high processing precision, simple operation, no noise, no vibration and so on. It is widely used in the sheet metal V-groove, U-groove

and other irregular groove processing (including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and

other special plates.). Particularly, it is applicable to the V-groove processing of sheet metal before bending .

Features

1. Environment-friendly self-lubricating design, low-friction controller.

2. Equal load in four directions

3. High-precision, maintenance free

4. High-speed and low noise,

5. Slide block is interchangeable

6. International standard specifications,

7. Full oil seal

8. High-rigid in four lines of steel balls

9. Smooth function and novel circulation

Technical Parameters

Max. width of steel sheet to be notched:	1220mm
Max. length of steel sheet to be notched	4000mm
Maximum thickness of steel sheet to be notched:	3.0mm
Min. thickness of steel sheet to be notched	0.8mm
Max. distance of the beam movement (backward and forward )	1220mm
Resolution of beam movement (backward and forward)	0.001mm
Max. speed of beam movement:	800-2000mm/min
Max. distance of tool carrier movement (upward and downward)	100mm
Resolution of distance tool carrier movement (upward and downward)	0.001mm
Max. distance of sliding frame movement	4300mm
Max. speed of sliding rack	30m/min
Work-piece error within 4000mm	±0.05mm
Min. distance of V-trough edge	10mm
Positioning precision:	±0.05mm
Max. traveling length of tool carrier:	100mm
Control board height	660mm
Dimension:	630023001670(mm)
Gross weight	9000kg

Details pictures
