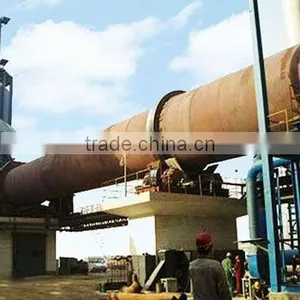

150 t/d active lime rotary kiln production line of Kefan

Specifications

active lime rotary kiln production line
1)environment-friendly,energy-saving;
2)Good quality,and high output;
3)CE,BV,ISO9001



Limestone:
Limestone main component is calcium carbonate (CaCO3). Lime and limestone can be used as a lot of building materials, but also many important industrial raw materials. Limestone can be directly processed into stone and fired into the quicklime. Lime is divided into quicklime and slaked lime. The main components of quicklime is CaO, generally blocky, pure white, containing impurities is light gray or light yellow. Lime absorb moisture or water to become hydrated lime, lime, also known as slaked lime, its main ingredient is Ca (OH) 2. The deployment into slaked lime, lime paste, lime mortar, as coating materials and tile adhesives.

Active lime rotary kiln production line description:
Qualified limestone stored in silos, by the elevator Lift and transported into the preheater at the top of the silo. Preheater top hopper, the bottom two material position control feeding quantity, and then through the next feeding tube will be evenly distributed to the preheater limestone indoor.

Limestone preheater kiln is heated to 900 ° C by 1150 ° C  flue gas and about 30% decomposition, by the hydraulic plunger push into the rotary kiln, rotary kiln sintered limestone and decomposed into CaO and CO2. Generated after decomposition of limestone, limestone into the cooler, the cooler was bubbled into the cold air cooled to 100 ° C at the discharge. The hot-swappable 600 ° C hot air into the kiln and gas combustion. Exhaust fan in blended with cold air entering through the baghouse, and then the exhaust fan into the chimney.

The lime is shipped into the lime products by the vibration feeder, chain conveyor, bucket conveyor, belt conveyor. Limekiln price can accord to customer requirements whether screening processes.

Design capability (t/d)

150

200

250

300

350

400

500

600

750

800

1000

Product

Active lime Light heat dolomite

Active lime Light heat dolomite

Active lime Light heat dolomite

Active lime Light heat dolomite

Active lime

Active lime

Active lime

Active lime

Active lime

Active lime

Active lime

Preheater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Round Prehe ater

Vertical Polygon Prehe ater

Vertical Polygon Prehe ater

Vertical Polygon Prehe ater

Rotary Kiln

Standards(m)

2.4×40

2.8×43

3×50

3.2×50

3,3×55

3,6×55

3.8×58

4×60/4.2×50

4.3×60

4.3×65

4.8×68

Effective volume(m3)

142

190

235

292

390

430

505

575/548

670

738

1005

Burning temperature(°C)

1350/ 1250

1350/ 1250

1350/ 1250

1350/ 1250

1350

1350

1350

1350

1350

1350

1350

Cooling

Vertical round cooler

Vertical round cooler

Vertical round cooler

Vertical round cooler

Vertical round cooler

Vertical square cooler

Vertical square cooler

Vertical square cooler

Vertical square cooler

Vertical square cooler

Vertical square cooler

Fuel

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

coal gas Coal fine

Heat Rate(kj/kg CaO)

5300/ 5000

5300/ 5000

5300/ 5000

5300/ 5000

5300/ 5000

5225

5100

5100

4810

4810

4810

Active lime rotary kiln production line key equipment:



1.Vertical preheater
Low voltage drop preheater,smoke in the preheater,reduce the resistance losses, reduce power consumption .From the high temperature ,hot flue gas inlet,directly through the material layer,and limestone fully preheated temperature heat, limestone can reach 900°C,about nearly 30% of limestone decomposition,emissions than 270°C temperature.
Adopts hydraulic push rod feeding to kiln.
Preheater coping with the bunker material level program control,the ultrasonic material level plan,ecr realize material level discretion alarm,interlocking feeding system,ensure preheater material layer highly stable.Preheater adopts hanging brick outside except the top ,the rest part adopts the fire-resistant pour families,brick  type is less ,masonry is simple.
Preheater sports equipment is less,equipment maintenance is small.

2.Rotary kiln
Adopt thick short type rotary kiln,Such as diameter 3.5m,kiln long 55m,saves the land.
Adopt speed motor drive kiln body,and is equipped with auxiliary motor,stable work,regulate  flexibly.
With spring of preheater sealing structure,simple,reliable and  the seal effect is good.

3.Prependicular type cooler
Cooler is divided into four regions,and can control alone.
Cooling wind  and heat materials contact directly and  cooling effect is good,the gray temperature higher than the environment temperature about 80°C,secondary air temperature can be preheated about above 600°C ,beneficial to the roasting.Cooler has no moving parts,equipment maintenance less.

4.By four-channel coal combustion pulverized coal burners(pulverized coal tube)
Four-channel coal burner device,is a big speed difference in the cement industry new burner,can be widely used.Using the principleof coincidental association flow has big speed difference,speed and angle of pulverized coal ejective adjustment,form in the area of the burner center,can promote second negative pressure area fully mixing wind and the coal,coal extremely block heats up,reach ignition temperature.
Once,about 8% less air combustionair quantity of theory;Coal in wind in nozzle out about 25-speed 35m/s; Spin in LiuFeng on the nozzle out approximately 120-speed 180m/s; Dc wind on the nozzle of the jet speed in 200m/s for 140-;Center for a wind of qir volume air about 2-6%.

5.End of waste gas treatment using LCM type long bag impulse precipitator.
The advantage of the filter bag for LCM type long bag impulse precipitator integrate points room counter blowing and pulse ash blowing clear , lengthen the compressed air power, play full role of blowing out dust to prevent dust control and attached again,so as to improve the filtering velocity,saving energy,extend out dust filter bag life effect.
The flame shape can be adjusted flexibly,to adapt to the roasting need plume lime.
The adaptability of coal,flam mable inferior coal.
Calcination won't be partial fire and brush kiln skin.
