PVC mixing Plant

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Sevenstars
Model Number	SRL-Z500/1000

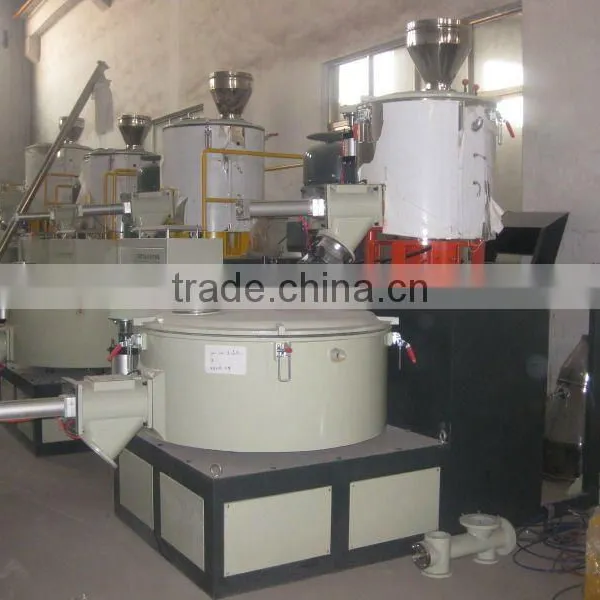

PVC mixing Plant
1.Used for drying ,colour .and mixing. PVC powder .
2.Heating mixer
3.High speed.

PVC mixing Plant

1	Model	/		SRL-Z500/1000 mixer group
Hot mixer
1	total volume of hot mixer		L	500
2	effective volume of hot mixer		L	375
3	material weight/batch		kg/batch	≤160
4	Output		kg/h	≤800
5	motor power		KW	55/75, double speed motor
6	Thickness of wall of barrel (stainless steel 304 )		mm	8
7	Thickness of bottom of barrel (stainless steel 304 )		mm	10
8	hot mixer rotating speed		r/min	430-860
9	Quantity of stirring blade		pcs	3(1Cr18Ni9Ti)
10	mixing time		min/batch	8-10
11	Heating method		Electric heating and self-mixing heating

cooling mixer
1	cooling mixer volume	L	1000
2	effective volume of cooling mixer	L	640
3	motor power	KW	18.5
4	material of cooling mixer blade	/	ZG1Cr18Ni9Ti
5	stirring blade rotating speed	r/m	60
6	Thickness of wall of barrel (stainless steel 304 )	mm	8
7	Thickness of bottom of barrel (stainless steel 304 )	mm	10
8	lift control method	/	pneumatic
9	Cooling method	/	water cooling
10	cooling time	min/batch	10-15
11	Total weigth of the overall machine	kg	5800
