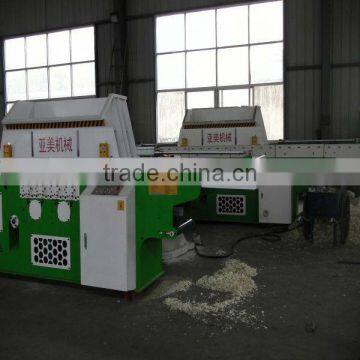

wood shaving machine yt-145

Specifications

1.wood shaving machine yt-145
2.Conveyor feeding shavings out
3. Safety Protection
4. Powerful working system

wood shaving machine yt-145 --supply wood shavings for your animal



Introduction

Shaving machine, also called wood crusher machine, wood shaving machine, wood chips machine. According to our domestic need and adopt Turkey process technology, we do some improvement on this machine.



Video link:

/watch?v=0Mi8R3D7hB8

/vblog/dv/201212/3164c1e0-faad-34b6-ea93-28d043bb5774.shtml

Feature

1.Advance technology, base on Turkey process technology, do some improvement on its design, in steady of welding connection, we use accurate punching and embed method which avoid loosing with the machine when its running



2. High quality spare part, for the blade, you have HSS and KS55 choice, for the bearing, it is FAG which can be use a long time and quite durable.



3. Hydraulic Transmission, stable performance and low noise



4. Widely use, our machine can produce small volume and light wood shavings which can be used in paper mill, transportation filler and animal bedding etc.

3. Advantage:

1. Preventative System for Wood Jamming
2. Adjust the size of shavings by yourself
3. Easy replace the blades
4. Conveyor feeding shavings out
5. Safety Protection
6. Powerful working system

4. Application

Shaving machine (wood shaving machine) can made wood, branch, crotch, leftover materials etc into shavings. As for the small size of the shavings, they are widely used in many fields. Shaving board in cabinet making factory, wood pulp in paper mill, protective filler for the fragile cargo in transportation, animal bedding in hennery. Etc.

5. Technical Parameters

Hopper length(cm)	145
Input material Dia.(cm)	45
Cutting head(set)	4
Blade(set)	6
RPM(r/min)	4500
Input material length (cm)	142
Power(kw)	18.5+18.5+0.37+5.5=42.87kw
Shaving depth(mm)	1-5
Hopper route(mm)	2200
Feeding speed (hydraulic)(m/min)	6-15
Dimensions(L*W*H)(cm)	515*115*180
weight(kg)	2850



YT-145		DOC(depth of cut)
		1mm	2mm	3mm	4mm	5mm
Speed	0.10 m/sec	427kg	654kg	880kg	1107kg	1.334kg
	0.15 m/sec	540kg	880kg	1.221kg	1.561kg	1.901kg
	0.20 m/sec	654kg	1107kg	1.561kg	2.014kg	2.468kg
	0.25 m/sec	767kg	1.334kg	1.901kg	2.468kg	3.035kg
