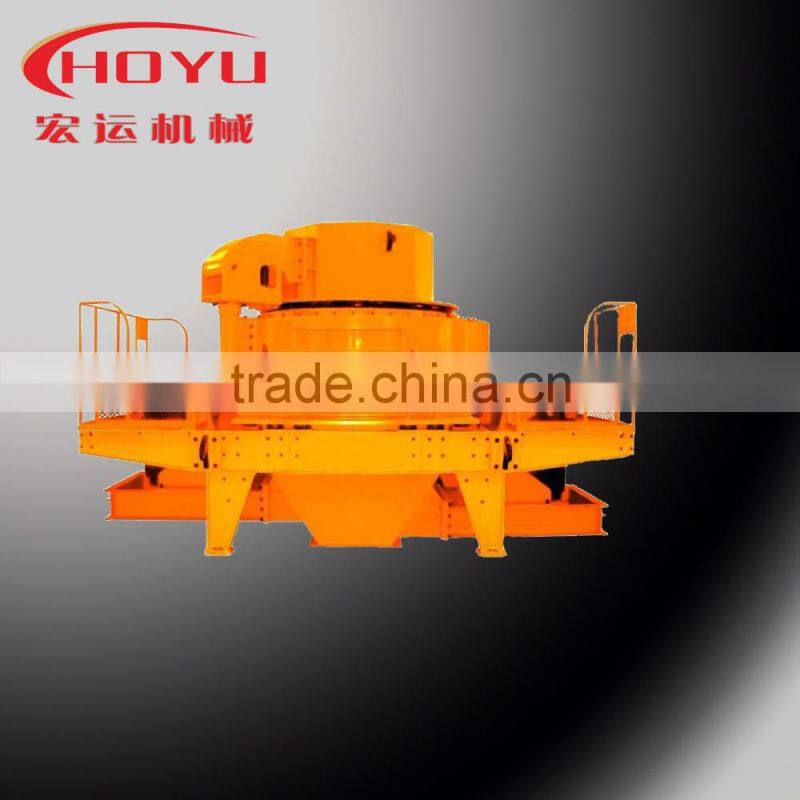

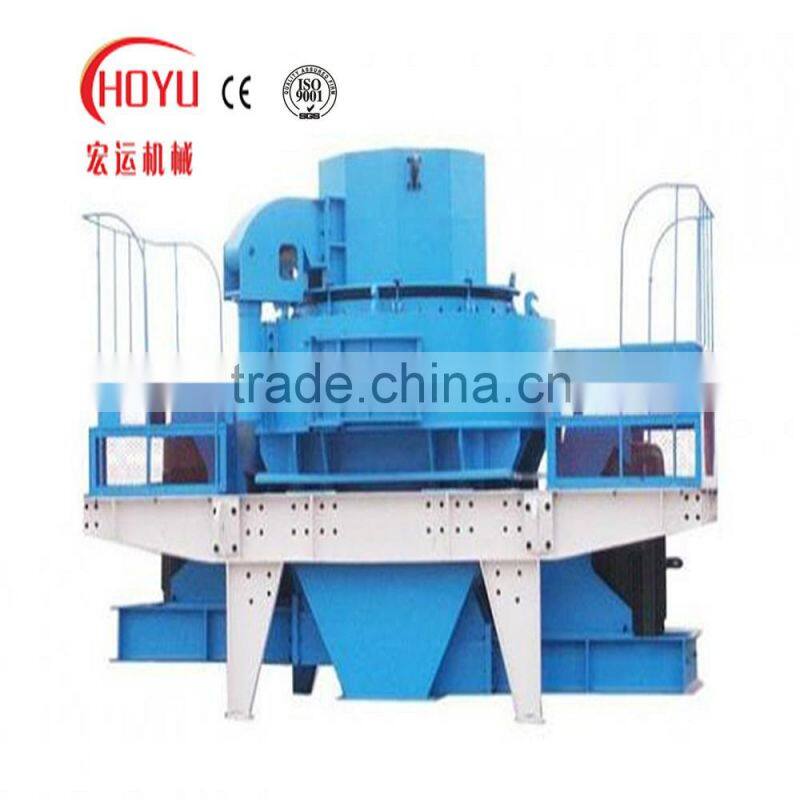

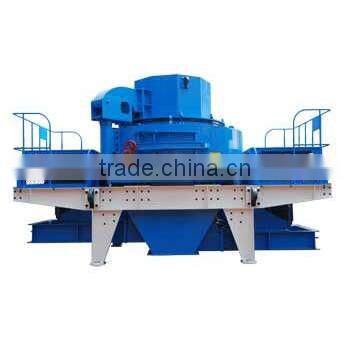

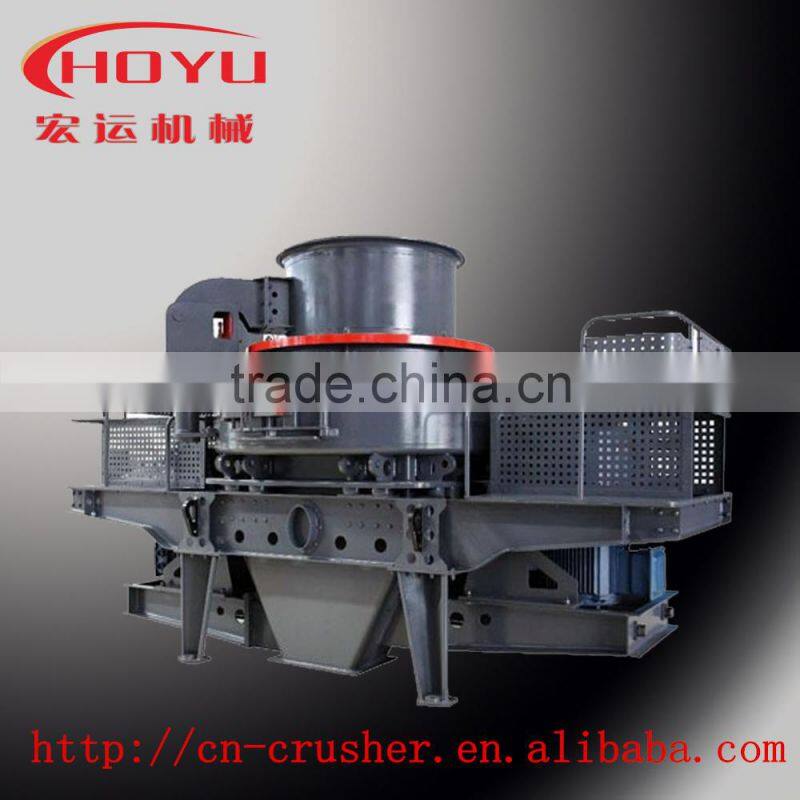

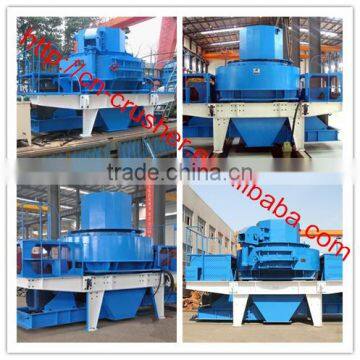

Ideal sand making machine/impact crusher

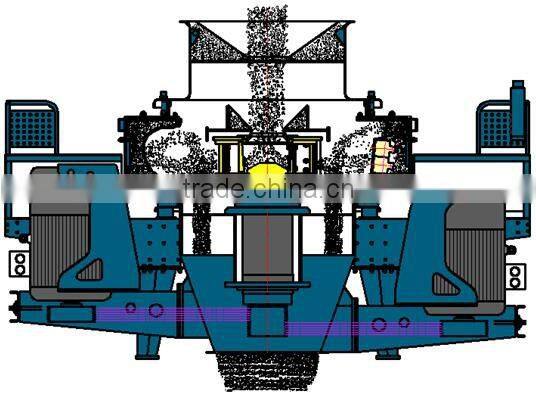

Mini sand making machine is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts.

Sand making machine using the centrifugal force and impact force which are brought by itselves’ high speed running.

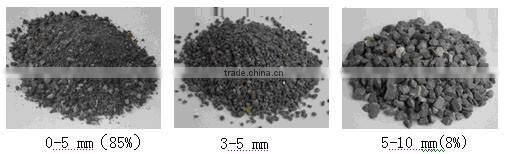

And the sand making machine can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size.

It can also be used to crush harder ore material and often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

PARAMETERS:

Model :XS2600/  XS3000/  XS3600

Screw Diameter(mm) 2600/ 3000/ 3600

Rotate Speed(r/min) 1-2/  0.8-1.5/  0.8-1.2

Capacity(t/h) 20-50/  50-100/  120-200

Power(kw) 5.5/  7.5/  11

Weight(kg) 5600/ 8100/ 9900

Dimension 3520×2390×2690/  3820×2640×3200/  4420×2930×3800  (L×W×H) (mm)

Main Features

 In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material

2 With high comprehensive using value, it can be used in different industries

Machine Parts

With double motor drive, the gearing can run smoothly and powerfully

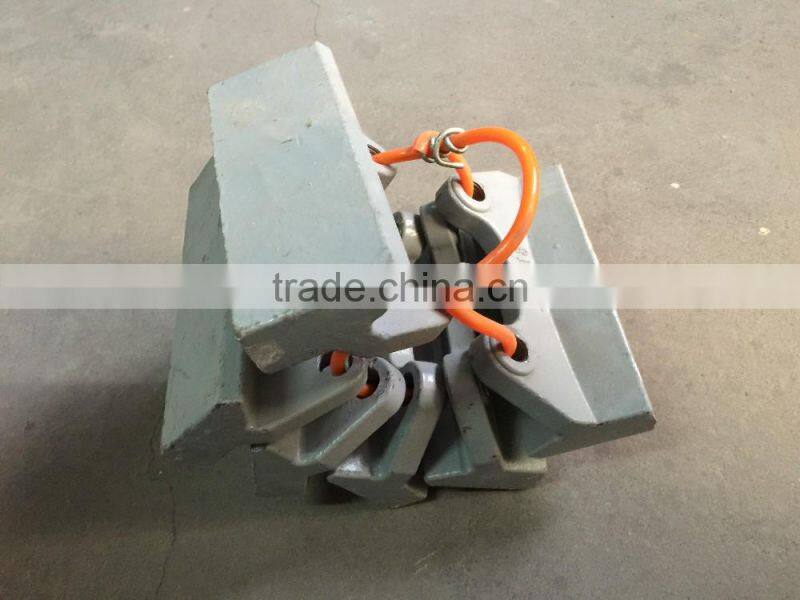

7 With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve the usability and wear resistance of the core crushing area
