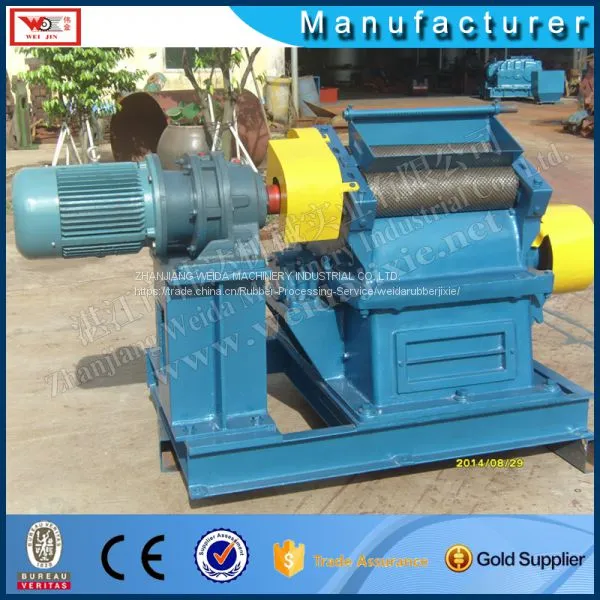

Dry rubber hammer mill machine in impact type
- 10 Piece / Pieces per Month
- Zhanjiang,Guangzhou, China
- T/T L/C Other
- 30 days
You May Like
Product Details
Brand Name | weijin | Place of Origin | China | |
Model Number | CM-550*370 | Type | Rubber Cutting Machine | |
Certification | / | After-sales Service Provided | Engineers available to service machinery overseas | |
Warranty | 2 years | Weight | customize | |
Dimension(L*W*H) | customize | Condition | New | |
Voltage | 380V | Power(W) | customize |
Product Description
Dry rubber hammer mill machine
Product Description
Product Name | Chinese hammer mill machine with best price |
Model No. | CM-550 X 370 |
Dimensions | 1200mm*1500mm*1030mm |
Weight | 1.6T |
Raw materials | Rubber |
Color | Blue, customized |
Type | Hammer Mill Machine |
Capacity | 0.8t/h |
Power | 15+3kwkw |
Voltage | 380V or as requested |
Speed of Rotor | 2000r/min |
Diameter of Working Rotor | 550mm |
After-sales service provided | Engineers available to service machinery overseas |
Brand | WEIJING |
Features | High quality, compact structure, best factory price, high efficiency,low noise,etc. |
Quality Warranty | one year |
Certification | CE |
Pyament Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay |
Dry rubber hammer mill machine Work Principle:
It is one of the main machines in the process of standard rubber. It is specially designed for removing impurity and shredding rubber sheet. with enlarging the surface-area of the rubber material by the hammer mill machine, it is easier to remove the moisture in hot wind drying system.
Function:
Dry rubber hammer mill machine consists of rotor, feeding roller, rack, discharge screen and power system. By the driving of the main motor through the belts, the hammers whirl at a high speed, hammering and cutting the rubber sheet which is sent in between the hammers and feeding rollers. The rubber sheet turns into rubber granule and falls through a screen from the bottom of the machine.Main technical data:
WORKSHOP:
PACKAGING:
Q: Installation
A: According to clients request, WeiDa machinery can provide installation Technologists to supervise and assist in the assembly and commissioning of the equipment.
Q: What about Warranty? what will we do if the machine is broken down?
A: The warranty period for all of WeiDa’s structural and mechanical equipment is normally one year. Wear parts are not covered in warranty unless the component part is found to be flawed.
Q: What should we need to do for if I want to get a suitable machine?
A: Hi, if you want to get the correct and exact selection of the model earlier ,please help us with following information 1).what is your raw material? How about the requires for final product. 2).the capacity (tons per hour ) 3).power supply(voltage & frequency)
Q: What could you help me to do for the business?
A: HIghly appreciate your trust , we can provide you with proposal chart for complete production lines, spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you choose the suitable equipments.
Q: What's your After sales Service?
A: All equipment provided by WeiDa Machinery is with the highest standard and very few customer complaint . Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client. And after selling, we keep monitoring the operation suitation about our machines monthly.
