1KW 96cc Single Cylinder Machinerysmall 4-stroke Engine Manual
- 6000 Set / Sets per Month
- China Chongqing port
- T/T L/C D/P D/A Credit Card PayPal
-
13HP Loncin Engine 4 Stroke Single Cylinder Motor Engine
-
13HP Honda Gasoline Engine Single Cylinder GX420 Engine
-
13HP Engine GX420 Engine Single Cylinder Gasoline Engine Made in China
-
Hot sale!factory price Low Consumption Muffler 13hp honda gasoline engine
-
Low Consumption Horizontal Shaft Small,portable air cooled 152f engine
-
Recoil start and electric start 13hp engine with Horizontal Shaft air cooled
Product Details
| Condition: | New | Usage: | Other, argriculture | Fuel: | Gasoline |
| Stroke: | 4 Stroke | Cylinder: | Single Cylinder | Cold Style: | Other, Air-cooled |
| Start: | Other, electric start or recoil start | Place of Origin: | Chongqing, China | Brand Name: | KEYE |
| Model Number: | 170F | Dimension(L*W*H): | 290*285*360mm | Weight: | 9kg |
| Certification: | ISO9001; CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

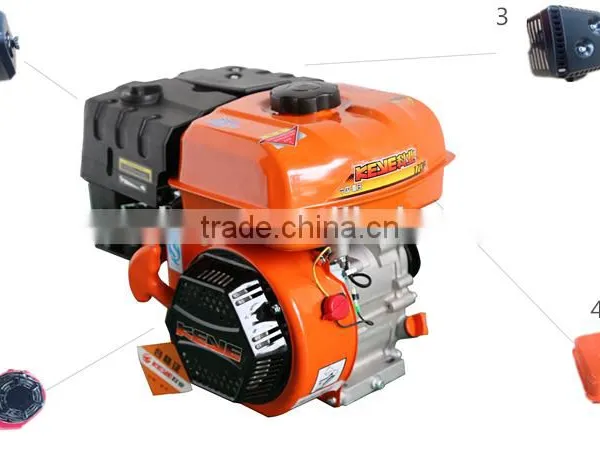

1KW 96cc Single Cylinder Machinerysmall 4-stroke Engine Manual
1.Output shaft with pulley can be used for various devices.
2.Optional lifting handle.
3.Oil alert to shut down engine automatically when low oil is detected.
4.New design recoil starter increases air intake and greatly reduce the heat.
The color of engine is optional.
Product Data :
TYPE: 152F
| Bore x stroke: | 52x46mm |
| Displacement: | 97.7ml |
| Compression ratio: | 7.0:1 |
| Maximum power: | 1.4kW/3,600rpm |
| Rated power: | 1.1kW/3,600rpm |
| Maximum torque: | 3.0N.m/2,600rpm±5% |
| Fuel tank capacity: | 1.3L |
| Engine oil capacity: | 0.3L |
| Oil consumption: | <=6.8g(kW/h) |
| Ignition system: | transistor magneto |
| Starting system: | recoil start |
| Engine type: | single-cylinder, OHV 25°inclined, four-stroke, |
| Dimensions: | 310 x 300 x 350mm |
| N/W(kg): | 13 |
| G/W(kg): | 14 |
| QTY(20'FT): | 800 set |
| QTY(40'FT): | 2000 set |
Applications
Packing : Carton Box/Wooden Cases.
Certifications:ISO9001,CE and other related certificates.
About us(12 years manufacturer):
Chongqing Keye Power Machinery Manufacture Co, Ltd., established in 2004, is a professional manufacturer in R&D, production and sales of gasoline engine series products and farming machinery. Located in Hailong Industrial Park, Baishiyi Town, Jiulongpo district of Chongqing,it covers an area of 35000m² with a manufacturing area of 10000m².
The major products include two categories: (1) power products such as gasoline engine and generator sets;(2) agricultural machinery such as mini-tiller and gasoline water pump. And the products are ISO, CE and GS certified. The brand KEYE POWER is awarded Chongqing Famous Brand. And KEYE have established long-term business relationships with agents in Eastern Europe, Southeast Asia, South Asia, the Middle East and Africa.
Factory view:(45,000 square meters)
Why do you choose us?
1.Insist quality best, all of our products have passed CE and European standards.
2.Excellent R&D Team and Test Equipments.Every piece of our goods is strictly tested one by one before packing.
3.Follow"Customers first", problems always be solved at first time.
4.Delivery on time, never delay.
5.We cooporate with ADEO who has the strict quality control system.
After-sales services:
1.One year guarantee for product quality.(People damaged is charged).
2.Maintenance and spare parts supply.
3.Free design of fixtures as customers required.
FAQ
1. Q: Are you factory or trading company?
A: We are factory. We have 20 years producing and exporting experience.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Hailong Industrial Park, Baishiyi Town, Jiulongpo district of Chongqing.You can fly to Chongqing Airport. You are warmly welcome you to visit us!
3. Q: Can I get some sample?
A: We are honored to offer you samples.
4. Q: What about the payment terms?
A: Usually, we accept T/T or L/C. 30% deposit first,
70% balance against the copy of B/L.
5. Q: How long for delivery?
A: Usually, it takes 10-30 days after depositing, anyhow, it depends on the order details.
6. Q: What is the MOQ?
A: The MOQ is 1pc.
7. Q: What about the warranty?
A: 1 year warranty for whole products, except e-damage parts.
