Diesel engine 170F

Name: Diesel engine 170F
Brand: Jiasheng
Availability: InStock

FOB Price

USD $40 - $1,000 / Set

50 Sets(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Usage:	Other	Fuel:	Diesel
Stroke:	4 Stroke	Cylinder:	Single Cylinder	Cold Style:	Other, Air-cooled
Start:	Other	Place of Origin:	Chongqing, China	Brand Name:	Jiasheng
Model Number:	JS 170F	Certification:	ISO9001	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Jiasheng diesel engines series

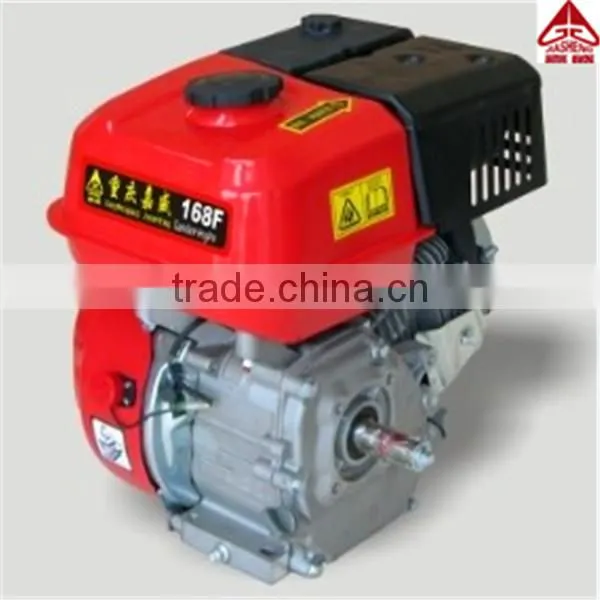

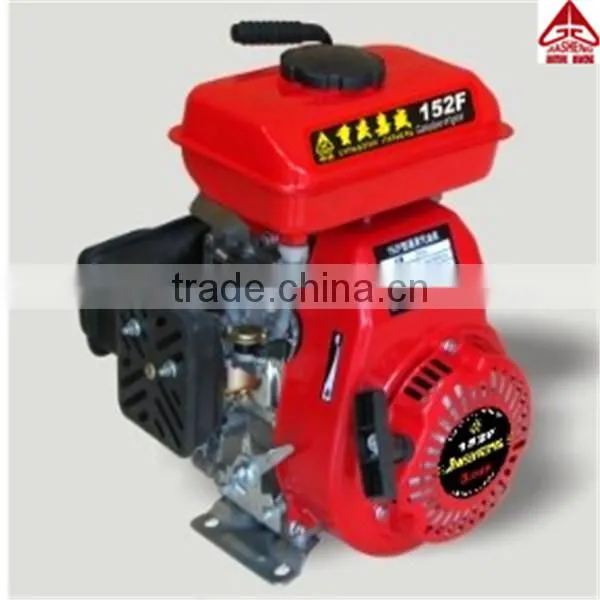

Model	152F	154F	160F	168F	170F
Engine type	Single cylinder,four stroke,OHC,forced air cooling	Single cylinder,four stroke,OHV 25°,forced air cooling
Displacement	98	87	118	196	216
Borestroke,mmmm	52*46	54*38	60*42	68*54	70*54
Compression ratio	7.0:1	8.5:1
Max.power,kw/rpm	1.1/3600	1.4/3600	2.2/3600	3.7/3600	4.0/3600
Max.torque,n.m/rpm	2.9/2500	3.0/2500	5.7/2500	10/2500	11.1/2500
Fuel consumption,g/kw.h	≤410	≤370	≤370	≤374	≤374
Min.stable speed,r/min	1500±150
Lubricating system	Lubrication by splash
Starting system	Recoil
Ignition system	CDI
Fuel designation	90#
Fuel tank/oil capacity,L	1.5/0.45	2.0/0.45	2.4/0.45	3.6/0.6
N.W/G.W,kg	9/10.5	10/11.5	14/15	16/17
Dimension,LWH mm	300290360	340285320	395340365	400340380
20FCL Loading quantity, sets	720	700	504
