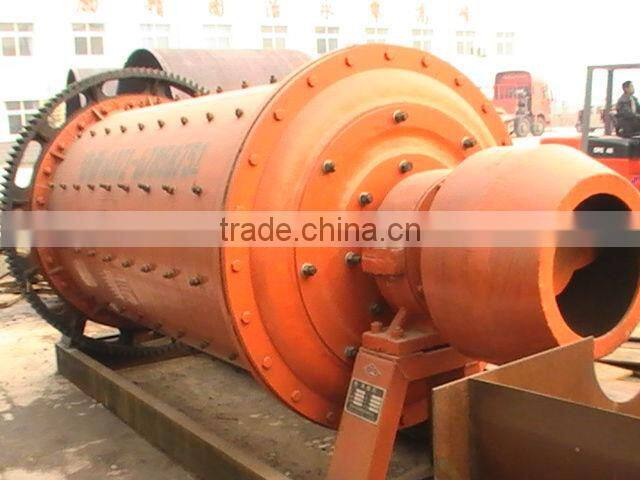

900*1800 Ball mill
- 100 Unit / Units per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
| Power(W): | 8.5KW | Place of Origin: | Henan, China | Brand Name: | GM |
| Model Number: | 900*1800 | Weight: | 4600KG | Certification: | CE |
| Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
900*1800 Ball mill:
Ball mill is the most commonly used grinding equipment, it is widely used in cement,silicate products, new building materials, refractory, fertilizer, non-ferrous metal, glass ceramic and other industries. It mainly grinds various ores and other grind-able materials,the type of the grinding include dry grinding and wet grinding. Ball mill is mainly composed by the components of cylinder, driving big gear ring,end cap,bearing and so on.
Structure Features of Ball mill:
The ball mill is composed by the feeding device,discharging device,rotating device, transmitting device and some other components. The hollow shaft of the ball mill is made of steel-casting, the liner is detachable, rotary gear hobbing processing with hobbing casting, and the cylinder of ball mill lining with wear-resistant plate, which decide the ball mill of good abrasion resistance. Thus, the ball mill is stable to operate and reliable to work.
Technical Parameters of Ball Mill:
Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
900*1800 | 36-38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 90 | 21 |
1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 28 |
1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 210 | 34 |
2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 42 |
2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 50 |
2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 370 | 52.8 |
2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 56 |
2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 400 | 94 |
2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 430 | 102 |
3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | Upon the process | 800 | 137 |
