Home > Products > Mining Machinery and Tools > Electric Hydraulic Splitter Machine/OEM
Electric Hydraulic Splitter Machine/OEM
USD $50 - $300
/ Carton
1 Carton(Min.Order)
- 100 Unit / Units per Month
- China any port
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Fujian, China | Brand Name: | GM | Model Number: | Electric Hydraulic Splitter Machine |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
Hydraulic Splitter Machine
Hydraulic splitter machine Hydraulic splitter machine Hydraulic splitter machine Hydraulic splitter machine Hydraulic splitter machine
Model | splitter dia. | splitter depth | Wedge length | Splite Width | Breaking Force | Real breaking force | Splitter weight/pc | |
| (mm) | (mm) | (mm) | (mm) | (T) | (T) | (kg) | ||
| GM-80A | 35-38 | ≥300 | 150 | 10~35 | 500 | 280 | 20 | |
| GM-80B | 38-42 | ≥400 | 200 | 10~40 | 700 | 500 | 22 | |
| GM-80C | 38-42 | ≥500 | 250 | 10~40 | 680 | 450 | 23 | |
| GM-90A | 38-42 | ≥600 | 300 | 10~40 | 600 | 420 | 28 | |
| GM-90B | 45-48 | ≥800 | 380 | 10~40 | 826 | 600 | 40 | |
| Engine Specification: | ||||||||
| Engine | Size(mm) | Weight(kg) | Oil Capacity(L) | Power | Working pressure(MPa) | Flow(L/m) | Splitter qty(Pc) | |
| Gasoline engine | 1200*1170*800 | 100 | 40 | 7.5Hp | 55-60 | 2--13 | 1--10 | |
| Diesel engine | 1150*1180*940 | 120 | 40 | 4.2KW | 55-60 | 2--13 | 1--10 | |
| Electric engine | 380*240*410 | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 4KW(380V) | 55-60 | 2--13 | 1--10 | ||
| 450*410*700 | 100 | 40 | 7.5KW(380V) | 55-60 | 13 | 1--10 | ||

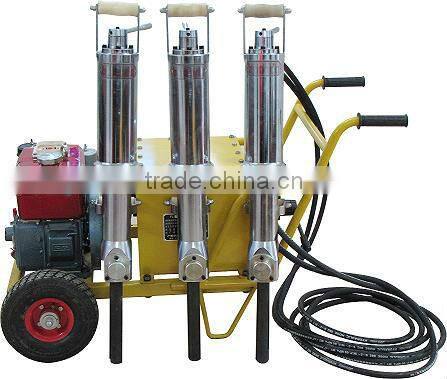

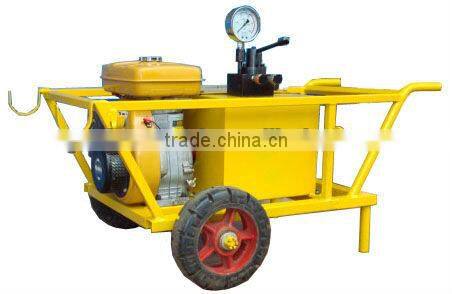

Gasoline Hydraulic splitter machine
Diesel Hydraulic splitter machine

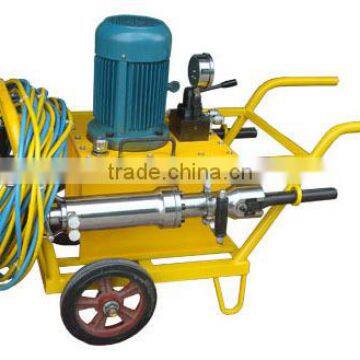

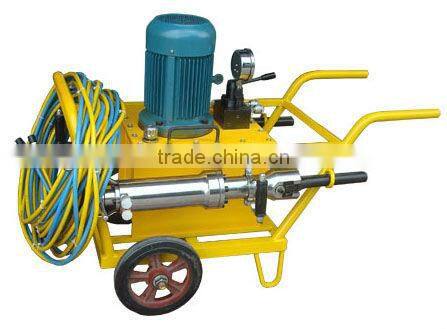

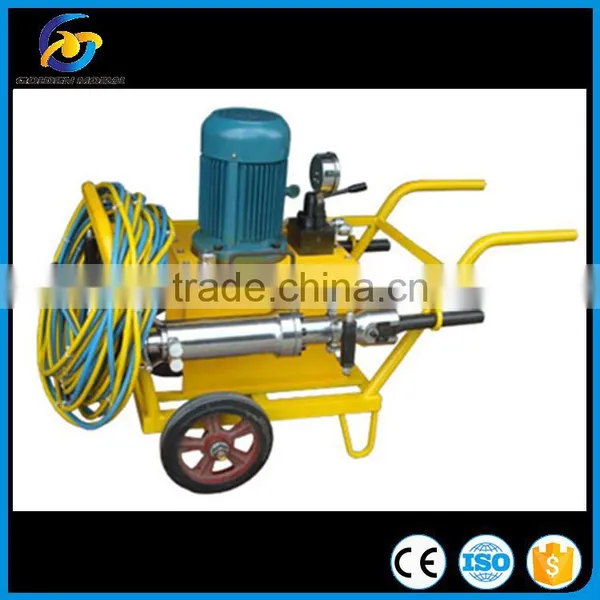

Electric Hydraulic splitter machine :
Pneumatic Hydraulic splitter machine :
