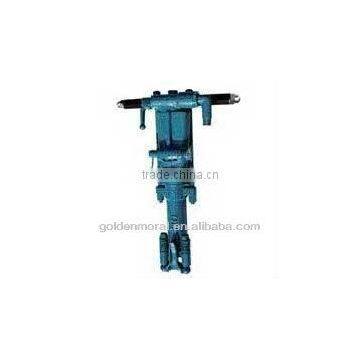

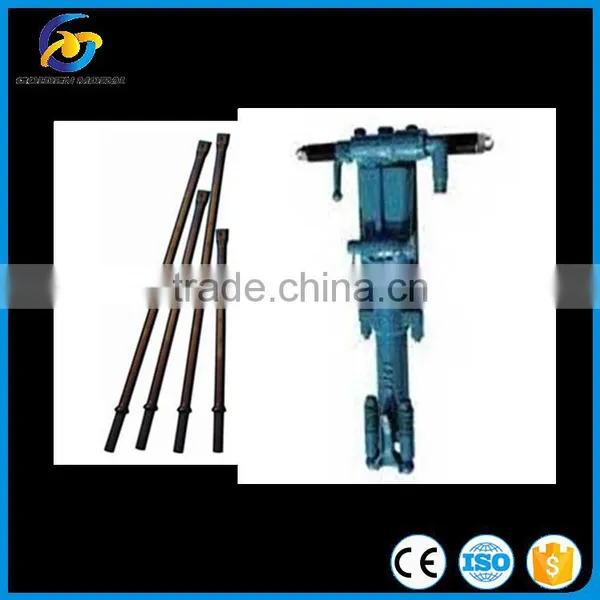

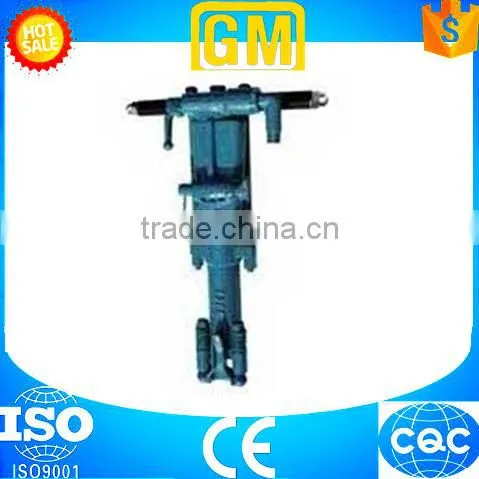

Y26 hand-hold rock drill
- 1000 Set / Sets per Month
- NINGBO
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GM | |
| Model Number | Y26 | Type | Air Hammer | |
| Average Air Consumption | 80L/S | Maximum Torque | Adjustable | |
| No-Load Speed | 000rpm |
Product Description
Y26 hand-hold rock drill
Operation Manual
Usage Range
Y26 type hand-hold rock drill is used at mines, Railway, irrigation and quarries to digging holes and for the second digging holes.
Y26 type hand-hold rock drill can be used be used to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock.
Specification
Rock drill & Oil injector
Weight | 26kg | Inner Dia.of air pipe | 19mm |
Overall length | 650*534*125 | Inner Dia.Of the water pipe | 13mm |
Dia.of cylinder | 70mm | Strike power | ≥30J |
Stroke | 70mm | Air consume of rock drill | ≤47L/S |
Rock drill frequency | ≥23HZ | Noise | ≤124(db) |
Idling rotational speed | ≥200r/min | Dia.of rock drill hole | 34-42mm |
Working water pressure | 0.3-0.35Mpa | Depth of rock drill hole | 5mm |
Checking tail size | 22*108mm |
|
|
Working Principle
When the machine running, high-pressure air(or Pressurized gas) enter into the air valve through handles by a running air valve which will lead pressure gas into front cavity and back cavity of the cylinder body, piston do high-speed raptly which pushed by pressure air, the waste air exhaust from the mouth.
