High Quality BOPP Adhesive Film Coating Making Line

1. Main Application

1.1. Used to produce BOPP packing tape;

1.2. Suitable material:

1.2.1. Base material: BOPP film (0.023-0.032mm) ;

1.2.2. Glue: acrylic acid glue, solid content no less than 55%, viscosity: 150~200CPS.

 2. Coating Technology

2.1. Coating type: Comma roller coating;

2.2. Technology process: Unwinding→→Coating→→Drying→→Cooling→→Winding

3. Main Techinical Parameters

3.1. Valid width: 1000mm;

3.2. Roller width: 1150mm;

3.3. Max. mechanical speed: 180m/min;

3.4. Operation speed: 100-150m/min (affected by glue and coating thickness)

3.5. Maximum unwinding diameter: 800mm;

3.6. Maximum winding diameter: 700mm;

3.7. Heating method: Electrical heating;

3.8. Edge winding uniformity: ±3mm;

3.9. Coating homogeneous degree: ± 0.001mm (dry glue);

1.10. Tension control accuracy: less than ± 0.15kg

1.11. Temperature control accuracy: less than ± 2°C

1.12. Max. temperature: 120°C

1.13. Mechanical power: About 125Kw

1.14. Heating power: About360Kw

1.15. Overall size: 42m (length) * 4m (width) *7m (Height)

1.16. Color of machine: Rose white (decided by customer)

4.Scope Of Delivery

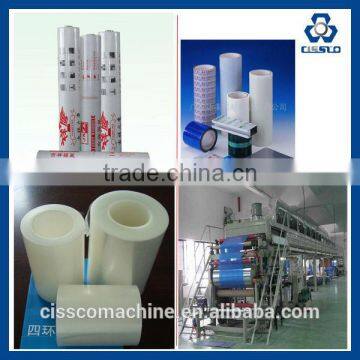

5.Pictures of

7.Contact Information for

Shelley  Huang

Skype:shelley2737

QQ:402911055

Cell:086-18602153584

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
