CE standard plastic cup making machine
- 50 Set / Sets per Month
- Shanghai
- FAST FOOD PACKAGING BOX EXTRUSION MACHINE, THERMOFORMING TAKEOUT PS BOX EXTRUDING LINE
- PS FOAM FAST FOOD BOX MAKING MACHINE
- POLYSTYRENE FOAM SHEET EXTRUSION LINE, POLYSTYRENE FOAM SHEET MACHINE
- Auto PSP Food Box Production Line,DISPOSABLE BURGER CONTAINER MAKING MACHINE
- Auto PSP BURGER BOX MAKING MACHINE TAKE AWAY PS CONTAINER MAKING MACHINE
- CE STANDARD PVC COIL MAT MAKING MACHINE, HIGH QUALITY PVC LOOP MAT PRODUCTION LINE
Product Details
Condition: | New | Product Type: | Plastic Cup | Place of Origin: | Shanghai, China |
Brand Name: | Plastic cup making machine | Model Number: | Plastic cup making machine | Voltage: | 380V/50HZ |
Power(W): | 38KW | Dimension(L*W*H): | 3300*1650*2250 | Weight: | 4.5T |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

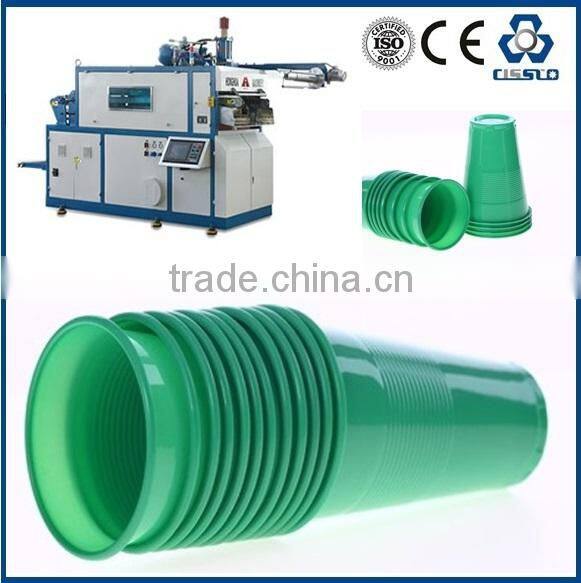

Plastic cup making machine
1. Introduction of Plastic cup making machine
HSC-660A thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It is operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting into one process.
2. Main features of Plastic cup making machine
It is used for forming PP, PS, HIPS, PVC and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.
3. Main technical parameter of Plastic cup making machine
1) Maximum forming area: 250*580mm | 2) Maximum forming depth: 120mm |
3) Maximum width rage of sheet: 300-600mm | 4) Thickness range of sheet: 0.2-2.5mm |
5) Maximum sheet roller diameter: 710mm | 6) Air pressure: 0.7Mpa |
7) Water consumption: 10 Liters/min | 8) Air consumption: 2000 Liters/min |
9) Manufacturing speed: 35mould/min | 10) Power: 3-N AC220V±15V 60HZ |
11) Heating motor power: 38KW | 12) Main motor power: 4KW |
13) Feeding motor power: 2.2KW | 14) Rewinding motor power: 0.55KW |
15) Weight: 4000kg | 16) Main machine(L*W*H): 3300*1650*2250(mm) |
17) Rewinder (L*W*H): 1250*800*1900(mm |

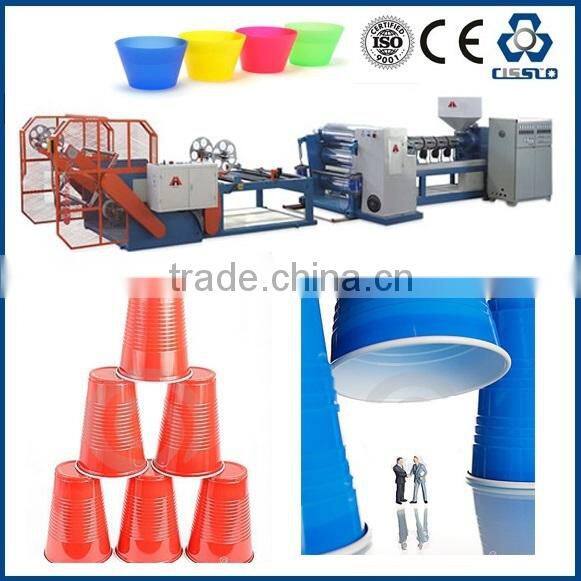

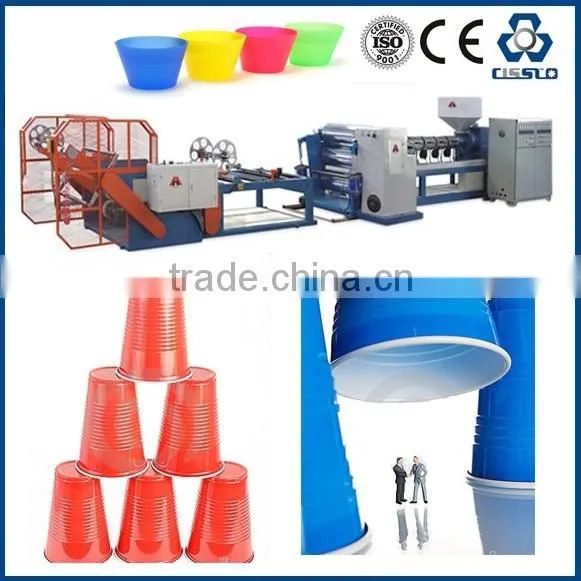

4. Machine show of Plastic cup making machine
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery is a fast forward professional supplier of complete plastic equipments and systems. At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world. we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs.
