PET PSF fiber production line production plant

PET FIBER PRODUCTION LINE, PSF PRODUCTION PLANT, PET FIBER PRODUCTION MACHINERY

1. About us : CISSCO MACHINERY CO., LTD

Cissco Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 10 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

2. About our Machinery: PET FIBER PRODUCTION LINE

This production line can be used to produce polyester, polypropylene, polyamide and other staple fiber. Corresponding to technical equipment adjustment, it will be used to produce three-dimensional hollow fiber and other special chemical fiber.

The mainframe is diveded into two main parts, the prevenient filature and post filature.

3. About the process: PET FIBER PRODUCTION LINE

Two processes including:

1.1 fore spinning Line:
Vacuum Dryer -> Hopper -> Screw Extruder -> Filter -> Spin Beam (Meter Pump System, Spin Pack, Spinneret) -> Quenching Unit -> Interfloor Duct -> Draw-off Wall -> Capstan Roller -> Sunflower Gearing unit -> fiber can traverse system

1.2 after spinning Line:
if 2-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tow Stacker -> Crimper Steam Box -> Crimper -> Tow Conveyer -> Relaxer -> Tow Tension Stand -> Cutter -> Chain Plate Conveyor -> Baling Press

if 3-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tension Control Device -> Tow Stacker -> Crimper Steam Box -> Crimper -> Silicon Oil Sprayer -> Tow Tension Stand -> Cutter -> Fiber Spreader -> Fiber Leveler -> Relaxer -> Chain Plate Conveying system -> Baling Pressrecycled psf production line

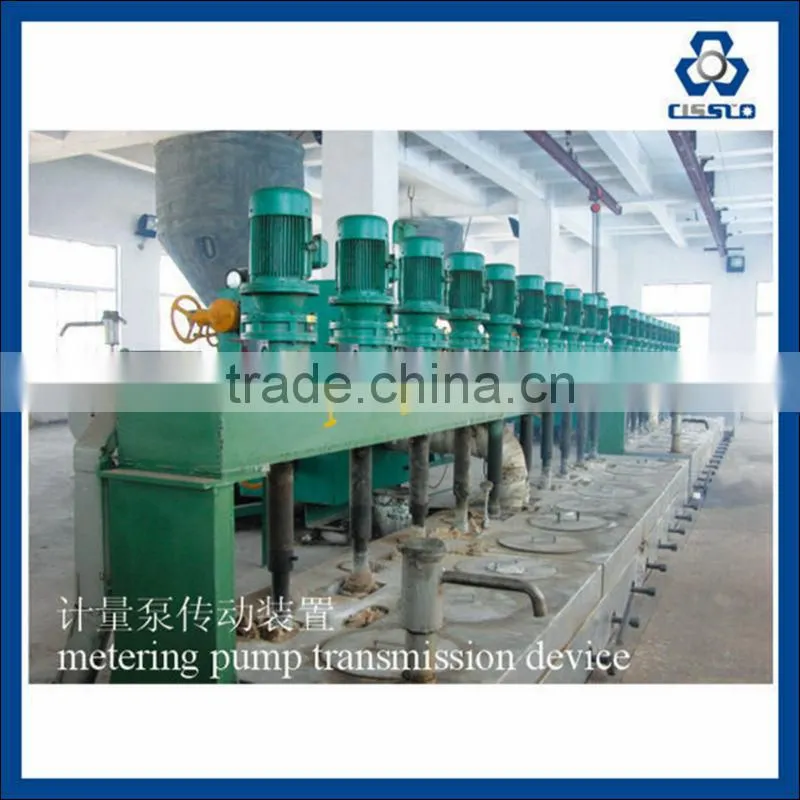

4. Photo Show  PET FIBER PRODUCTION LINE
