Laser Beam Detector for Dot and Cold Objects

Specifications

Product overview

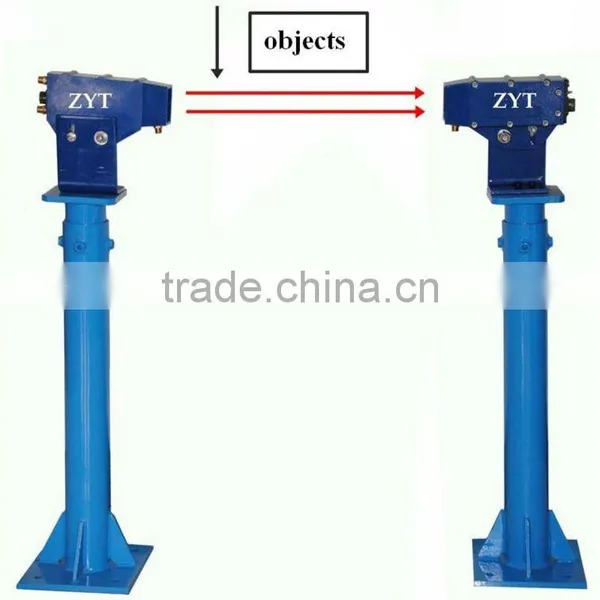

ZYT-94 Hot and cold object laser meter is a highly sensitive laser-beam detection device, mainly used in the automatic control system of the metallurgical industry It can also be used  for other industries, and be used as a automatic control switch for objects place detection, location, commutation, counting, control. It can substitute for similar foreign detector.

Equipment type

ZYT-94(N,P,Z)  N:NPN   P:PNP  Z:relay

Product features

1.Emission source adopt pulse modulation laser , high anti-interference performance

2.Can normal operation in the harsh environment (temperature, humidity, oil mist, mist, dust, etc.)

3.Can be stable for long periods, and reliable operation

4.Detection distance can be adjusted within 50 meters

5.Detector power supply, controller, signal output integration, easy installation

Technical parameters

1. Power supply voltage: DC24V
2. Power consumption: <5W
3. Detection range: 0 ~ 50m
4. Modulation Frequency: 30KHz
5. Detection object: 1250 °C the following objects
6. Minimum object diameter:10mm
7. Anti-light interference: 5000LX (constant light)
8. Operating temperature: -25 ~ 70 °C
9. Type of cooling: water or air-cooled
10.  Weight: 2.5kg
11. Signal output:

             Relay Output: DC30V 10A;

                                      AC220V 5A

             Level output: NPN or PNP,

                                  Maximum current 100mA (with protective equipment)
