Water Treatment System-Stainless steel sand filter

FOB Price

Negotiable / Strand

1 Strand(Min.Order)

Supply Ability 5000 Strand / Strands per Month
Port Tianjin&Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Beijing, China

Brand Name:

AIGER

Model Number:

A-S

Packaging Details

packing by wooden cases

Product Description

Specifications

1.Pure and good quality
2.We are manufactory
3.Automatic backwashing
4.High mechanical strength

Characteristic description

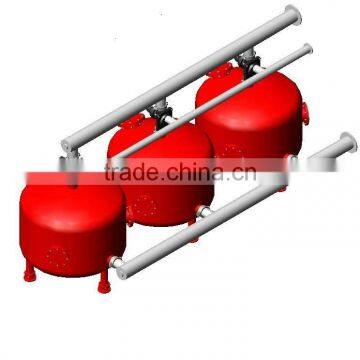

A-S series of Automatic sand filter for water treatment using quartz sand as filter media in a filter with high efficiency, can effectively remove the suspended substance in water, microorganisms, and other fine particles.So as to reduce water turbidity, water purification effect.The system is the automatic system, if without artificial operation, the system will automatically backwashing once every 24H (backwash interval reference number can be based on user conditions to change).

Technical parameters

Single filter water flow: 50m³/h
Pressure rating: 0.25Mpa~2.5Mpa
Working temperature range: 0 ~ 65 °C
Effluent turbidity:less-than three
Inlet and outlet Connection: flange
Backwash water: for total filtered water 1 to 3%
Control mode: pressure control; PLC timing control
Sewage way: automatic sewage suction nozzle or brush, safe and reliable
Rated operation voltage: 220V, 380V, 50HZ, three-phase
Installation: vertical, horizontal

Model and Specification

Model	D(mm)	D1(mm)	H(mm)	H1(mm)	weight(Kg)	filter area(m²)	The clean water (m³/h)
S605	300	37.5	116.5	150	42	0.07	2-5.6
S610	400	50	1105	180	45	0.12	4-9.6
S620	500	25-75	1210	180	47	0.2	8-16
S635	625	50-100	1200	180	58	0.3	12-24
S640	750	50-100	1070	300	125	0.44	17-35
S650	900	50-100	1110	300	197	0.63	25-50
S660	1200	50-100	1110	300	290	1.13	45-90

Size Chart

Real figure
