Home > Products > Sea Water Pump > Large Capacity Split Casing Stainless Steel Sea Water Pump
Large Capacity Split Casing Stainless Steel Sea Water Pump
- 2000 Unit / Units per Month
- Tianjin/Shanghai/Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Hebei, China | Brand Name | An Pump | |
Model Number | QS Stainless Steel Sea Water Pump | Theory | Centrifugal Pump | |
Structure | Single-stage Pump | Usage | Other, water ,fire,farm ,irrigation,sea,flood drain | |
Power | Electric | Standard or Nonstandard | Standard | |
Fuel | Diesel | Pressure | High Pressure | |
Application | Other, water ,fire,farm ,irrigation |
Product Description
Large Capacity Split Casing Stainless Steel Sea Water Pump
Technological Advantages for Large Capacity Split Casing Stainless Steel Sea Water Pump
1. Bearing spacing between both ends is short, pump running stable, low vibration noise, and can increases the speed of running properly, to adapt to a wider range of performance.
2. Inlet and outlet at the same line, so that the pipeline layout is simple and convenient, beautiful.
3. The rotation of the same rotor can be reversed, reducing the risk of damage caused by the water hammer.
4. Unique design of high temperature, use of intermediate support, thick body, sealed cooling, bearing lubrication, so that the pump can run up to 200 ºC occasions, especially for heating network requirements.
5. Pump can be vertical or horizontal installed according to using conditions, seal can be mechanical seal or packing seal.
Large Capacity Split Casing Stainless Steel Sea Water Pump Material of Flow Components
1.Pump casing made of gray cast iron, ductile iron or cast steel.
2.Impeller made of gray cast iron, silicon brass or stainless steel.
3.Spindle in stainless steel or high carbon steel.
4.Other materials can be used upon requirement.
Large Capacity Split Casing Stainless Steel Sea Water Pump Specification
1,Capacity: 5280~84000m3/h,
2,Head: 12~120m
3,Industrial pump
4,clean water pump

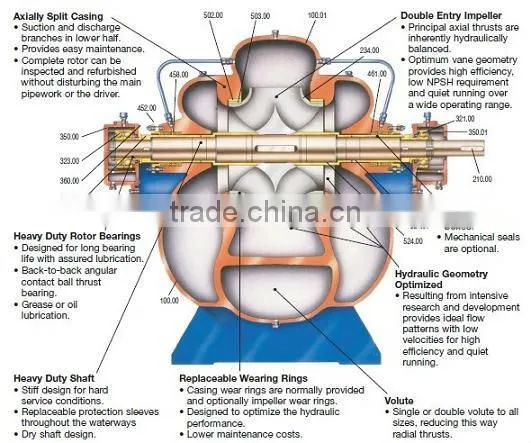

Large Capacity Split Casing Stainless Steel Sea Water Pump Structure
1.Cartridge Mechanical Seal
Cartridge style mechanical seal. and seal plate are mounted on the
shaft sleeve, as a single, cartridge style, assembly.
2. Service with ease.
The one piece cartridge assembly is easily removed for service.
The replacement assembly may be installed, just as easily, with no special seal adjustments necessary. Standard mechanical seal is an industry standard design, that is readily available at local seal supply houses.
3. Greater temperature and pressure parameters.
Various types of mechanical seals and packed glands, are available to extend the standard pressure and temperature parameters.
Large Capacity Split Casing Stainless Steel Sea Water Pump Parameter

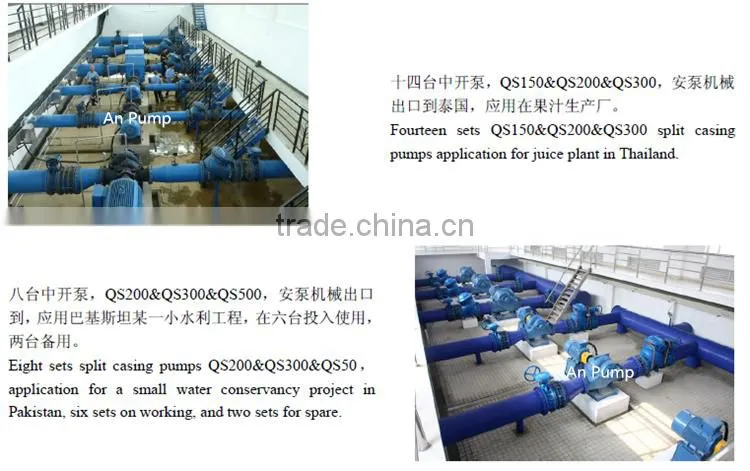

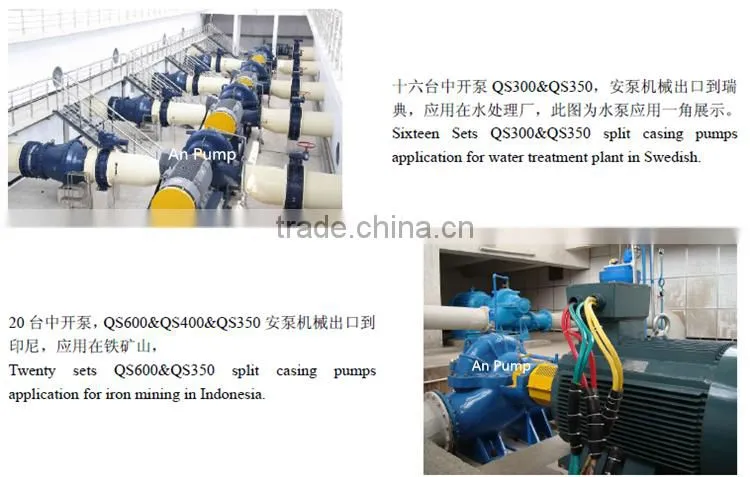

Large Capacity Split Casing Stainless Steel Sea Water Pump Application
Large Capacity Split Casing Stainless Steel Sea Water Pump Packing
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China,
produce with our own factory.
2. Q: what's your factory workshops ?
A: My factoryproduce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your pump price?
A: We are sure our price is factory price, and insist high quality for our long term cooperation.
4. Q: What is your pump material ?
A: We produce high Cr Mo Ni alloy, rubber liner, cast iron, stainless steel, etc.
Produce as your requirements is ok.
5. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
6. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple,customers can change it very easily. We will also supply you maintenance tools for free.
7. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.
8. Q: Can you install the motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
9: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiil calculate & select most suitable pump model for you, offer pump solution for you.
10. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data,
performance curve, dimension etc.
11. Q: What are your advantages,why should I choose you?
A: Higher Quality, our parts have 30% longer life than the originals
Short Delivery Time, for normal parts,we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have technical department, quality control department and a professional sales team,
we will offer professional service for you any time.
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
