Cooling Water For Irrigation Split Case Pump

Cooling Water For Irrigation Split Case Pump photo-1

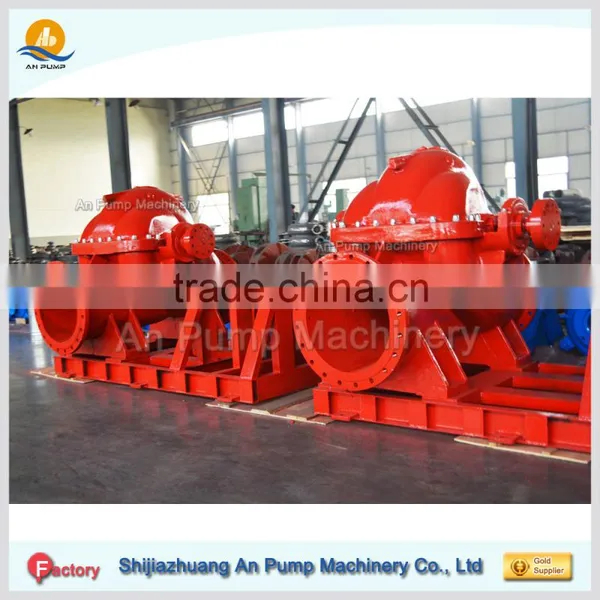

Cooling Water For Irrigation Split Case Pump photo-2

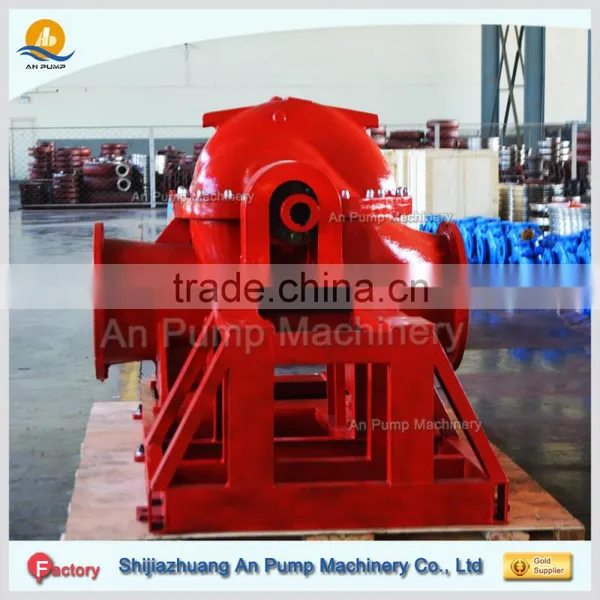

Cooling Water For Irrigation Split Case Pump photo-3

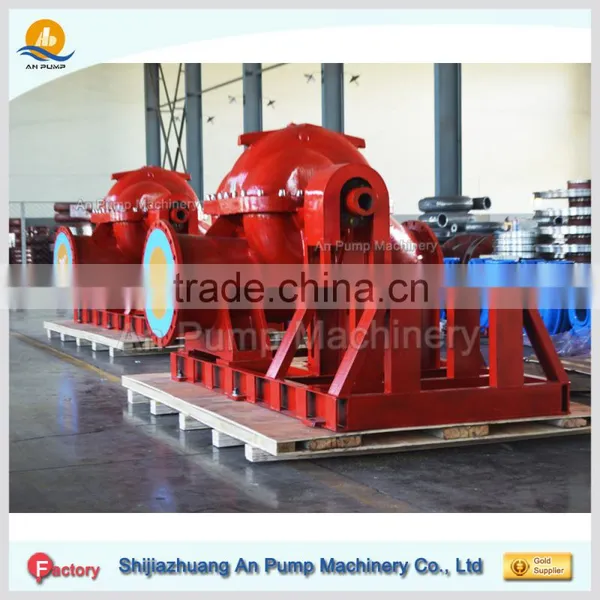

Cooling Water For Irrigation Split Case Pump photo-4

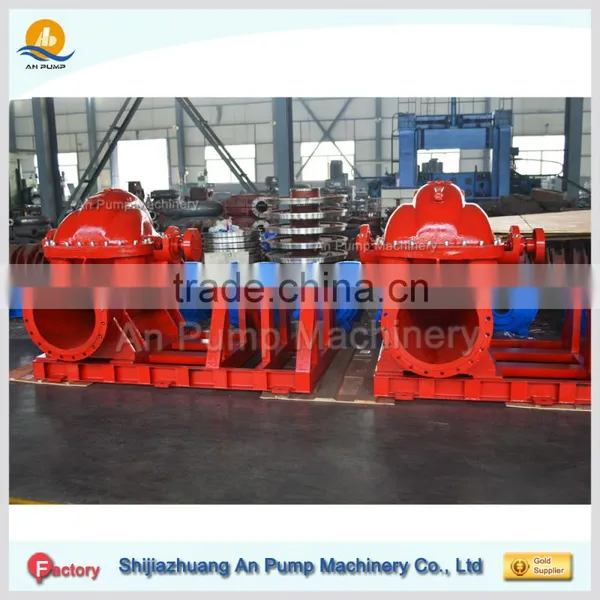

Cooling Water For Irrigation Split Case Pump photo-5

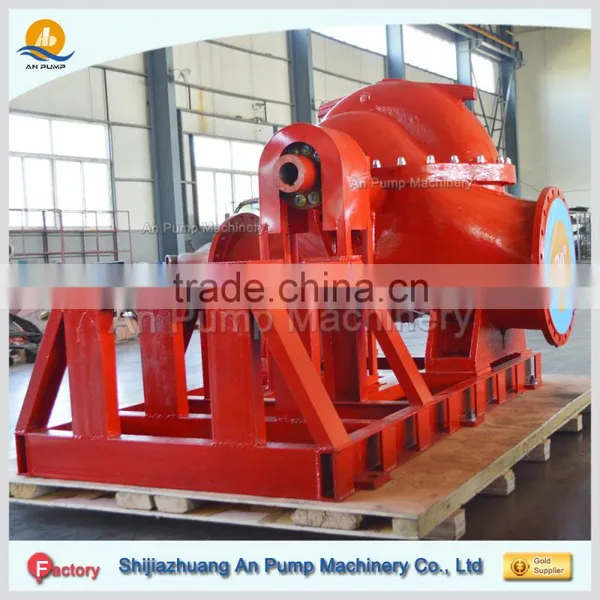

Cooling Water For Irrigation Split Case Pump photo-6
US$ 9 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
AN Pump
Model Number:
QS
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name AN Pump
Model Number QS
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Other, water supply,farm irrigation,water circulation system,
Power Electric
Standard or Nonstandard Standard
Fuel Other, motor or diesel or gasoline
Pressure High Pressure
Application Other, Cooling Water For Irrigation

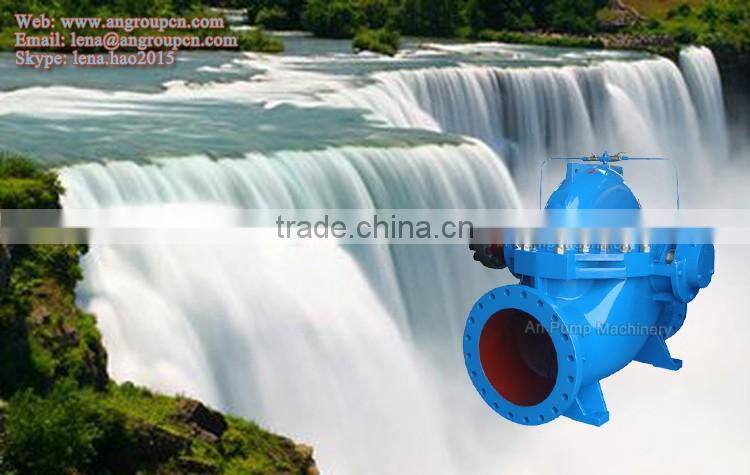

Cooling Water For Irrigation Split Case Pump

Cooling Water For Irrigation Split Case Pump

Product Description

 Secification- Cooling Water For Irrigation Split Case Pump

QS, QSH series single stage split casing centrifugal pump (double-suction pump)

Description: QS, QSH series single stage double-suction, horizontal split casing centrifugal pumps one of the main characters is large flow rate. It can reach 110m3/h—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physico-chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.



Design duty and features: (at design point)

Speed     n:     2900rpm and 1450rpm

Inlet diameter:     50 to 200 mm

Capacity  Q: 110to 10000 m3/h

Head     H: 6 to 145 m

 Cooling Water For Irrigation Split Case Pump

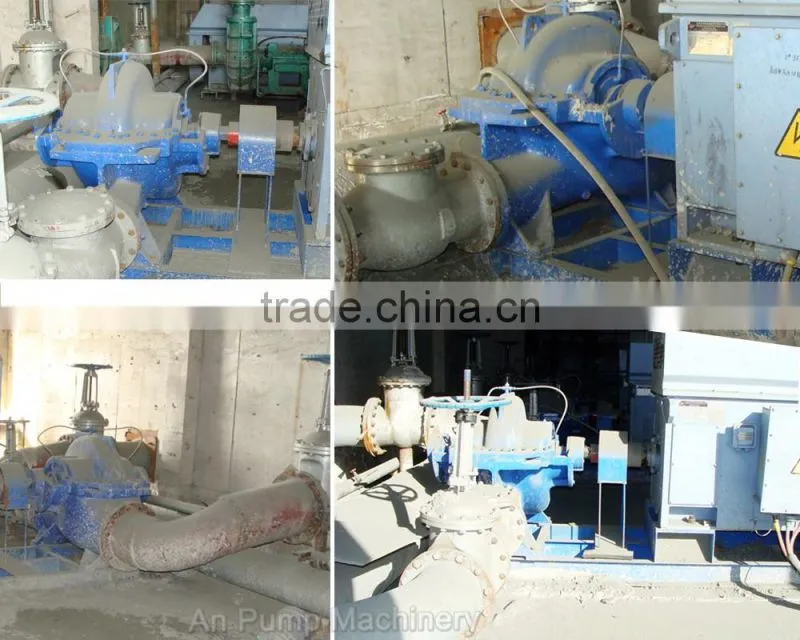

Application- Cooling Water For Irrigation Split Case Pump



Cooling Water For Irrigation Split Case Pump



Cooling Water For Irrigation Split Case Pump

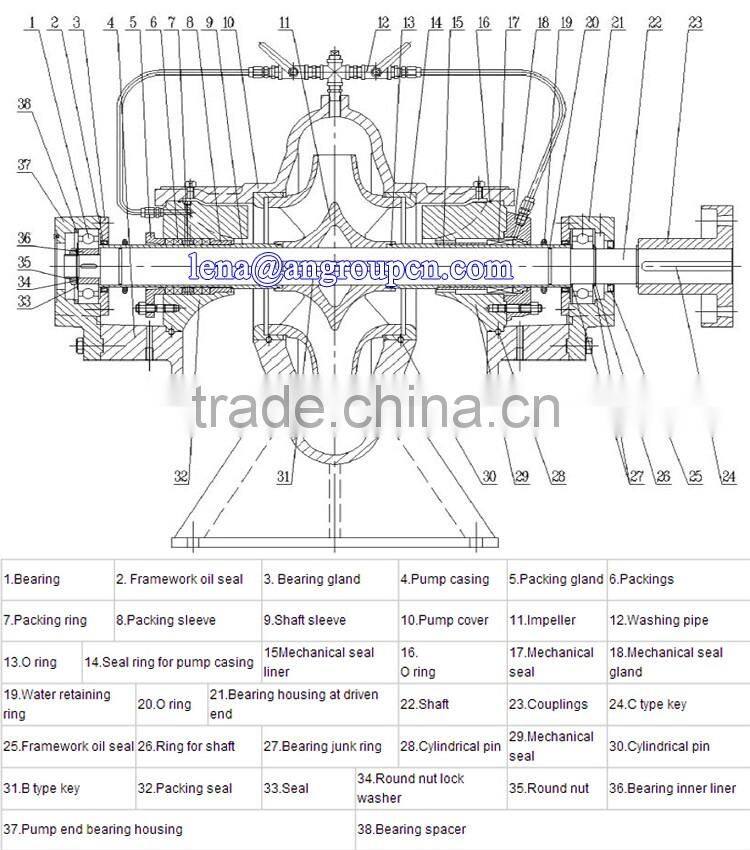

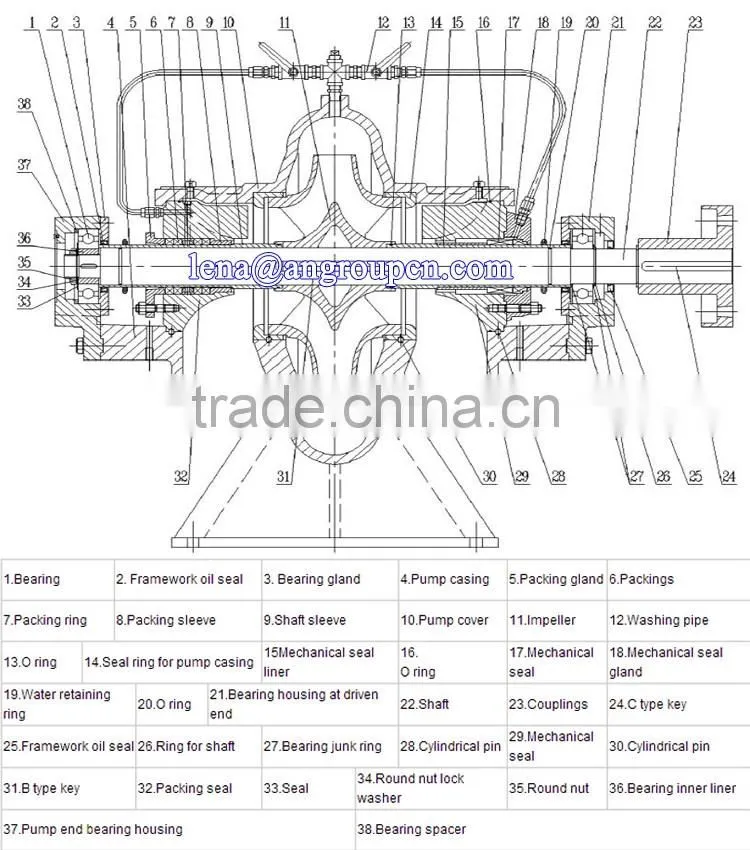

Structure - Cooling Water For Irrigation Split Case Pump



Cooling Water For Irrigation Split Case Pump





Performance chart - Cooling Water For Irrigation Split Case Pump



Cooling Water For Irrigation Split Case Pump



Company Information

 Factory information

Cooling Water For Irrigation Split Case Pump



Our Services

 You will get technical support





Our Advantages

 You will got products and service advantages





*About 30 years Design, produce and service experience.







*Price is suitable. We are directly factory, own finished foundry model, cost only including original materials fee, machinery fee, worker fee.







*Quality, our materials used high chrome, reached above 27%, 28%, wear resistant and corrosion resistant , pump use life longer. High products quality, All our pump material is wear-resistant high Chrome alloy or nature rubber. All our products Pass ISO9001:2008 and CE certificate







*After sale service, we can offer 2 years quality guarantee, also have a very strong technical support department and special after sale service department. When you have any need future, we can sent you professional technical man to Russian help you.  We also have one of group high quality technicians who can help you solve any question during the process







*When received your order, we have very professional manufacture process and supervision process. For you, i also will to plant supervise manufacture and take photo for you per day in person. So can keep you do not worry.







*After finish manufacture, we will test each pump.  take a video  and make a testing report for you. If available, you also can to our factory to supervise testing in person.







*Fast Delivery: For pump standard parts, we have large stock, so we can arrange delivery very soon







*Rich export Experience. we had export USA, Germany,Canada , Australian and so on developed country and South Africa, Southeast Asia,south America, North America, Russia and so on many country. our products get high reputation at home and abroad.







Certificate, your reliable



Cooling Water For Irrigation Split Case Pump



Reliable Experience

 Pumping word



Cooling Water For Irrigation Split Case Pump

Our Team

 Cooling Water For Irrigation Split Case Pump







Contact us



Lena Hao
Internation Trade Manager



WhasApp:+8618732129616
Skype:anpump-lena
Email:lena(at)
Web:

 Cooling Water For Irrigation Split Case Pump











Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2012
Factory Size
50,000-100,000 square meters
Total Employees
201 - 300 People
