Underground Irrigation System,Automatic Drip Irrigation System Agricultural,System Irrigation

Name: Underground Irrigation System,Automatic Drip Irrigation System Agricultural,System Irrigation
Brand: HIT-THINGS
Availability: InStock

FOB Price

USD $1 - $999 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

HIT-THINGS

Model Number:

M3D8

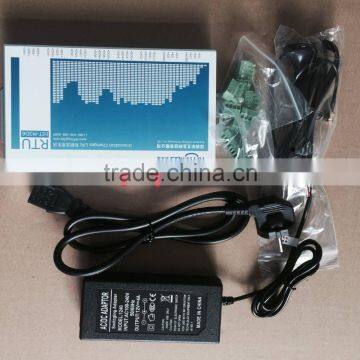

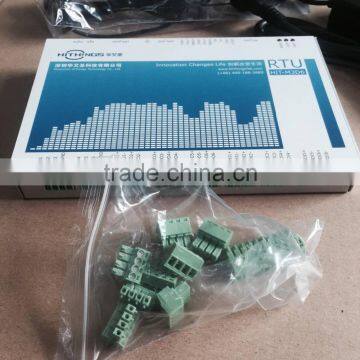

Packaging Details

Colour box Package
M3D8 RTU
POWER ADAPTER,
GSM ANTENNA
RS232 CABLE
TERMINAL BLOCK.

Product Description

Underground Irrigation System,Automatic Drip Irrigation System Agricultural,System Irrigation

Contact:

Whatsapp :008613923710189

skype:angelina870914

Wechat:antecheng_angelina

Product Description

Gsm gprs wcdma module	Industrial GPRS wireless module, frequency range850/900/1800/1900MHz
Ethernet	Support 10M Base-T/100M Base-TX Ethernet protocol, twisted-pair self-adaption(Auto-MDIX)
WIFI	WIFI function module, serial port communication
Lora	Lora function module, serial port communication
ZigBee	ZigBee function module, serial port communication
Serial port	2channelsRS-232, 2channelsRS-485(Of which second channe lcan be Configured as RS-232 according to the demand of client),communication speed:1200bps~115200bps
Power	input range 9-24V,power output including 12V/2.5A,4V/2.5A, 3.3V/2.5A
Power voltage acquisition	Can collect the external supply voltage and the internal standby supply voltage.
Analog input	8 channels;External signal range:0~5V or 4~20mA;Acquisition accuracy 16 bits (0.08 mV or 0.3 uA),the acquisition circuit can be configured as voltage mode or current mode via wire jumper or resistor
Digital input	8 channels, can be configured as active or passive input via resistor, adopting interrupt I/O port, can collect the level and pulse signal
Digital output	8 channels, can be configured as the relay output mode or transistor output mode via wire jumper, the max load are respectively (10A/250V AC) and (500mA/12V DC)
Data storage	Can store historical data and real-time data,possess8MB serial FLASH, can be expanded to 16MB and 32MB,possess256KB serial FRAM
Micro SD Card	Can external connect TF card, support FAT32 file system
Real-time clock	Adopting high precision clock chip, the error does not exceed 5 seconds / year, ensuring 3 years operating under the case of power down for the back-up battery .
Power dissipation	Data doesn't transmit state≤60mA Data transmitting state≤100mA
Working environment	Temperature:-40~85℃ Humidity:≤95%RH(40℃)
LCD display and touch input function	Support (Serial port expansion peripheral)

Our Services

Why Choose Us

Brief:

* Professional with many years experience from 2007

* IOT Brand:Hithings,Antecheng,Atinternational

* Most competitive price from material supplier base on huge orders to them.

* Experienced and Effective inner cost control system through whole process.

Quality Control:

* Twelve quality control staff, monitor in production line

* Providing relative solution Of IOT

* Testing from material to final products according to international standard

* ISO, SGS, , CE, FDA approved factory

Service:

* OEM / ODM service and support

* Free Sample Development

* Free Promotion Material mixed with container

* Clients Service One-to-One

* Effective Communication within 24 hours

* Attend Canton Fair to meet customer face to face

* New design and style collection updating for customer

FAQ

1.Are you a manufacturer with Research ability and customized services ?

A: We are an ISO, SGS, CE, FDA approved manufacturer specialized in IOT system solution provider, Remote Terminal Units ,Telemetry Devices , M2M Modem ,Data logger .. ,customized Services for monitor software and hardware is available

2.What is your MOQ?

A: RTU MOQ : Sample

Monitor Software : We can provide with a demo version of the relevant industry

3.What is your delivery date?

A: The delivery date is about 3-15days after receipt of payment.

4.What is your payment terms?

A:10%-30% deposit in advance and extra balance before shipment.

5.Can you send free samples?

A: After customer confirm bulk order ,we can provide the free sample for testing that meet customer’s function

Application

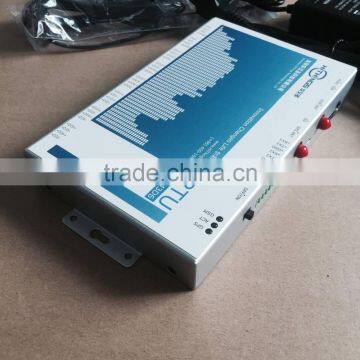

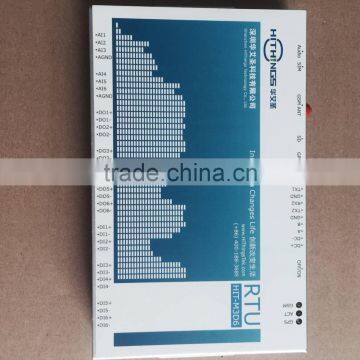

Products pictures

Product Size

Main products

Model	I/O Interface	Communication port	3G HSDPA	SMS	TCP/IP over cellular
M3G2	2AI+2DI+2DO	2 RS232+1 RS485	N	Y	Y
M3G6	6AI+6DI+6DO	2 RS232+1 RS485	N	Y	Y
M3D2	2AI+2DI+2DO	2 RS232+2 RS485+EHTERNET	Y	Y	Y
M3D4	4AI+4DI+4DO	2 RS232+2 RS485+EHTERNET	Y	Y	Y
M3D8	8AI+8DI+8DO	2 RS232+2 RS485+EHTERNET	N	Y	Y

The M3 series RTU default is GSM module, 3G module is option

if you have more interesting ,Click -----> view more

Monitor Software

Configure software :

Company Informatiom

Gsm modbus rtu M2M gsm gprs monitor M3D8 gsm rtu sms controller

Company Profile

Shenzhen Antecheng Technology Co., Ltd.

Shenzhen Antecheng technology Co.,ltd is one of the subcompany of HiThings . Located in shenzhen city .Antecheng is a leading factory in china of M2M M2H H2H Technology Application Fields that provide the IOT system solution in Intelligent water resources management system, Intelligent electric power management system,Intelligent agricultural management system,Intelligent environment monitoring system,Intelligent industrial control management system and so on ,
Specialized in RS232 RS485 USB RJ45 GSM /GPRS /CDMA/WCDMA/FDD-LTE/ TDD-LTEwireless remote data monitoring data acquisition terminal RTU DTU ,8 /16 /32/64 industrial modems & modem pool
As a products and total solution of services provider . Our products are exported to America . South America . Europe . Southeast Asia and middle east countries . Around nearly 200 countries and region
We can supply updated OEM and ODM products to our customer . Our principle is " be responsible for the trust of customer "!
Antecheng are alibaba Top 10 Global E-business champion which means antecheng is an enthusiasm team and can delivery what clients are looking for every time , the best products ;Most useful information . And best service .
Our mission is to provide our customer with the highest quality . While keeping our products affordable . There have more 100 kinds of Rtu , modem . Modem pool . Wireless terminal and different designs and strong research of rtu . Modem . Warmly welcome customer from at home and abroad to establish cooperation and create a bright future together !

Application :
1) SMS/MMS/Voice solutions Remote data transmit
2) POS Machine Recharging system
3) Vending machine Power/Oil/Gas system
4) Remote LED system Environmental detection
5) IPC system Remote meter reading
6) Remote controlling system
7) Singlechip remote data communication system
8)temperature sensor
9)Environmental monitoring for example : Intelligent agriculture
10)industrial water pressure monitoring
11)pressure monitoring
