Gsm remote controller switch 12v DC,remote ON/OFF equipments

FOB Price

USD $89 - $110 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status:	Stock	Style:	External	Type:	Wireless
Interface Type:	Other, RS232/RS485	Transmission Rate:	14.4Kbps	Certification:	CE
Brand Name:	HIT	Model Number:	HIT-M3D2	Place of Origin:	Guangdong, China

Packaging Details

Neutral Packing

Product Description

Gsm remote controller switch 12v DC,remote ON/OFF equipments

Start Cooperation

Contact: Sherry

Cell/WhatsAPP (24hours English services ) : +86 15718478855

Skype: live:atca_9

Product Description

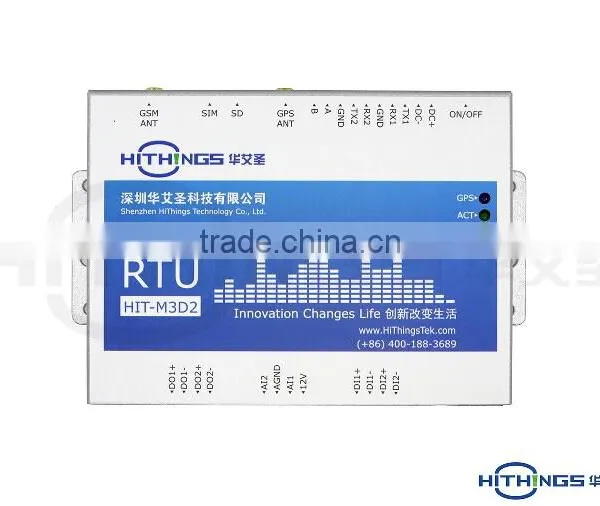

HIT-RTU series products are the wireless remote control terminal developed by Shenzhen

HiThings Technology Co., Ltd. The internal adopts the STM32 series high-performance ARM
controller chip from the industry-leading STMicroelectronics company and combines the
industrial wireless communication module from Quectel company, RTU has the characteristics of
strong stability, high reliability, real-time, and wide application. It is a new generation of remote
monitoring and control terminal combine the telemetry, telecontrol, telecommunication,
remote-adjust function with RS232,RS485 communication function.
HIT-RTU wireless remote control terminal series products are the high-performance
monitoring and control device which integrates analog signal acquisition, digital signal acquisition,
relay control output and wireless data communication function. Can be directly connected to the
standard sensors output analog signals ,various level signals, dry contacts, pulse signals, etc. Can
be used as the master station of industrial Modbus-RTU protocol to connect the various
instrumentation of Modbus-RTU protocol(customized).It's the best way for the small-scale
process signal to implement wireless monitoring and control.

Product Pictures

Functions

GSM/GPRS/CDMA communication function

Serial port communication function

Analog input acquisition function

Digital input acquisition function

Digital output functions

Data storage function

SD card access data function

Real-time clock function

Low power consumption function

GPS function (option: internal gps module)

Power management function

LCD display and touch input function(option:Serial port expansion peripheral)

WIFI function(option:Serial port expansion peripheral)

Lora communication function(option:Serial port expansion peripheral)

ZigBee communication function(option:Serial port expansion peripheral)

Performance Parameter

Item	Technical Parameters
gps module	Industrial GPRS wireless module, frequency range850/900/1800/1900MHz
GPS Module	Level accuracy:2.5m Space accuracy:0.1m/s Heading accuracy:0.5° Cold start time:≤30s Hot start time:≤1s serial port communication
WIFI	WIFI function module, serial port communication
Lora	Lora function module, serial port communication
ZigBee	ZigBee function module, serial port communication
Serial port	2 RS-232,1 RS-4852,communication speed :1200bps~115200bps
Power	input range 9-24V,power output including 12V/2.5A,4V/2.5A, 3.3V/2.5A
Power voltage acquisition	Can collect the external supply voltage and the internal standby supply voltage.
Analog input	6 channels;External signal range:0~5V or 4~20mA;Acquisition accuracy12 bits (1mV or 5uA),the acquisition circuit can be configured as voltage mode or current mode via wire jumper or resistor
Digital input	6 channels, can be configured as active or passive input via resistor, adopting interrupt I/O port, can collect the level and pulse signal
Digital output	6 channels, can be configured as the relay output mode or transistor output mode via wire jumper, the max load are respectively (10A/250V AC) and (500mA/12V DC)
Data storage	Can store historical data and real-time data,possess8MB serial FLASH, can be expanded to 16MB and 32MB,possess256KB serial FRAM
Micro SD Card	Can external connect TF card, support FAT32 file system
Real-time clock	Adopting high precision clock chip, the error does not exceed 5 seconds / year, ensuring 3 years operating under the case of power down for the back-up battery .
Power dissipation	Data doesn't transmit state≤60mA Data transmitting state≤100mA
Working environment	Temperature:-40~85℃ Humidity:≤95%RH(40℃)

Application

Company Profile

Shenzhen Antecheng Technology Co., Ltd.

Shenzhen Antecheng technology Co.,ltd is one of the subcompany of HiThings . Located in shenzhen city .Antecheng is a leading factory in china of M2M M2H H2H Technology Application Fields that provide the IOT system solution in Intelligent water resources management system, Intelligent electric power management system,Intelligent agricultural management system,Intelligent environment monitoring system,Intelligent industrial control management system and so on ,
Specialized in RS232 RS485 USB RJ45 GSM /GPRS /CDMA/WCDMA/FDD-LTE/ TDD-LTEwireless remote data monitoring data acquisition terminal RTU DTU ,8 /16 /32/64 industrial modems & modem pool
As a products and total solution of services provider . Our products are exported to America . South America . Europe . Southeast Asia and middle east countries . Around nearly 200 countries and region
We can supply updated OEM and ODM products to our customer . Our principle is " be responsible for the trust of customer "!
Antecheng are alibaba Top 10 Global E-business champion which means antecheng is an enthusiasm team and can delivery what clients are looking for every time , the best products ;Most useful information . And best service .
Our mission is to provide our customer with the highest quality . While keeping our products affordable . There have more 100 kinds of Rtu , modem . Modem pool . Wireless terminal and different designs and strong research of rtu . Modem . Warmly welcome customer from at home and abroad to establish cooperation and create a bright future together !

Application :
1) SMS/MMS/Voice solutions Remote data transmit
2) POS Machine Recharging system
3) Vending machine Power/Oil/Gas system
4) Remote LED system Environmental detection
5) IPC system Remote meter reading
6) Remote controlling system
7) Singlechip remote data communication system
8)temperature sensor
9)Environmental monitoring for example : Intelligent agriculture
10)industrial water pressure monitoring
11)pressure monitoring
