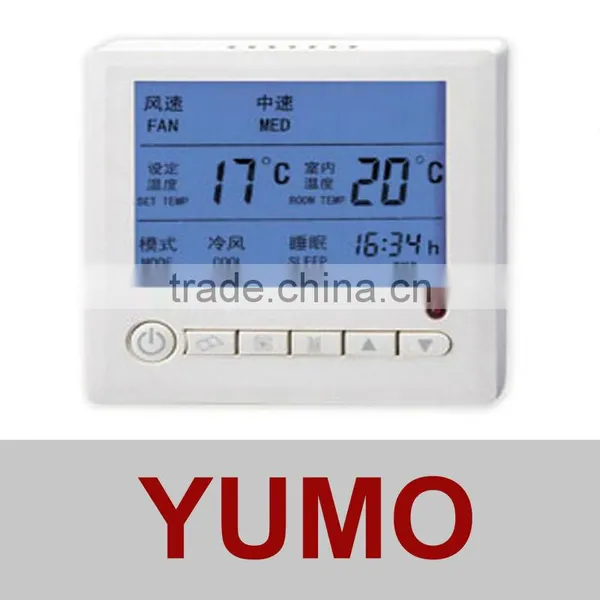

AC803 Series YUMO Thermostat LCD programmable digital room Thermostat

General

AC803 Series Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized valve,motorized fan and valve of heating only,cooling only and heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with the set-point so as to automatically keep the room temperature stable.

Characteristics

1.NTC
2.Digital LCD display,EL Backlight(optional)
3.Setting Turn on/off within 24 hours
4.Adjustable manual 3-speed or automatic fan speed control,High,Medium
and Low
5.Attractive modern styling and smart out-looking(12mm only for
surface board)
6.May connect to main system
7.Manual operation available
8.Data Memory:If the power cut off accidentally,it could be continuing
to work by order if the power returns

Technical Data

Sensor: NTC
Power supply: 220V/AC 50/60HZ
Rated Current: 3A
Set-point Range:5-35℃
Accuracy: ±1℃
Measured Temperature: 1-40℃
Power consumption:≤1.5W
Shell: White PC plastic
Ambient Condition:-5℃-55℃
Relative Humidity: <92%(no condensing)

Applicable

1.Basic func:
Setting Turn on/off within 24 hours;
Adjustable manual 3-speed or automatic fan speed control,High,Medium
and Low;
May connect to main system;
Manual operation available;
Data Memory:If the power cut off accidentally,it could be continuing
to work by order if the power returns.
2.Available for:
Fan coil unit
Two-line Motorized Valve
Three-line Motorized Valve
Solenoid Valve
Heating Equipment
Three-speed angle fan valve
