HKT56 servo motor 500ppr encoder dc motor optical YUMO small min rotary encoder servo motor encoder

Name: HKT56 servo motor 500ppr encoder dc motor optical YUMO small min rotary encoder servo motor encoder
Brand: YUMO
Availability: InStock

FOB Price

USD $30 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	YUMO	Model Number:	HKT56
Usage:	Position Sensor	Theory:	Optical Sensor	Output:	Digital Sensor

Product Description

HKT56 servo motor encoder servo motor encoder

Product Description

YueQing YUMO electric Co., Ltd is set research and development, manufacturing and sales as one of the international

science and technology enterprise integrated automation, The company dedicated to industrial automation control products (encoder,

sensor, safety light curtain, automatic matching accessories and other products). R & D and manufacturing, has been committed

to technological innovation, combined with the height of the perfect.

product quality and excellent corporate culture, for the wholeBall industrial automation customers to provide professional technical

support and solutions. Products and widely used in the servo motor, CNC machine tools, automotive, glass, ceramic, elevator, paper, food,

textile machinery Machinery, packaging machinery, wind power generation, industrial assembly automation control field.

Companies adhere to the "integrity-based, quality first, the user is supreme, the development strategy of "strong in technology research

and development as a starting point, to Professional international management team as the driving force, focus on customer needs.

enhance core competitiveness, to build the brand of automation technology.

VERSION OF TYPE SERIES:

1	I(Incremental encoder)			A(Absolute encoder)
2	S(Solid shaft)	H(Hollow shaft)		C(Cone shaft)		N(No shaft)
3	C(Common type)	H(Shock resistance type)		M(Manual type)		F(Flameproof type)
	T(Wide working temperature range)			A(Through-hole hollow shaft type)
	L(Flange adapters type)		R(High response frequency)		N(Synchronous flange type)
	W(Sine ware type)		S(Airtight type)		U(With UVW phase type)

ORDERING CODER:

ISC 38 06 401 G 1024 BZ 1 --- 5 L

1 2 3 4 5 6 7 8 9 10

ISC: Type series

38: housing diameter φ38mm

6: Shaft diameter φ6mm

401: Sequence number

C: Plug radial

H: Plug axial

G: Cable axial

E: Cable axial

J: Rectangle plug radial

T: Rectangle plug axial

1024: Number of pulses

Output signals

A: A phase

AL: A phase and Z phase

AZ: A phase and Z phase

B: A,B phase

BL: A,B phase and Z phase

BZ: A,B phase and Z phase

Width of Z phase (Tz)

No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T

Supply voltage

5:5V DC

5-12: 5-12V DC

12-24: 12-24V DC

Output circuit

C: Open collector NPN

F: Push pull

E: Voltage

L: Line driver AM26LS31

H: Line driver MC3487

D: Line driver SN75113

T: Line driver 26ET31B

Features:

* ASIC devices internal, good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.

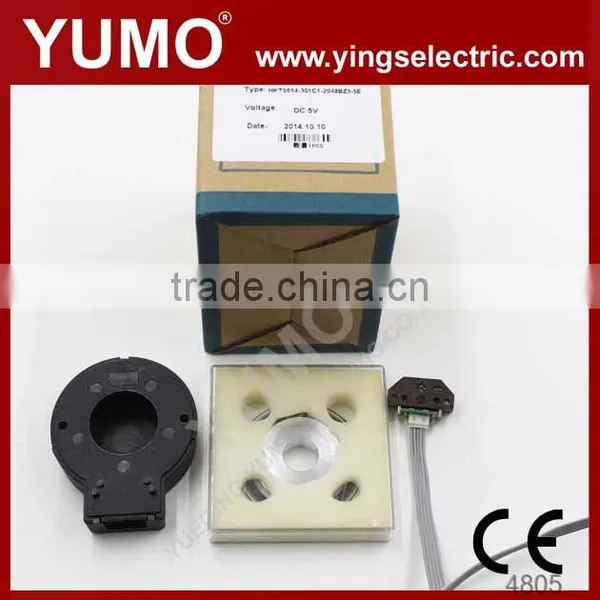

HKT56 SERIES

The HKT56 series are high performance two and three

channel optical incremental encoders .

These encoders emphasize high reliability, high resolution,

and easy assembly. Each encoder contains a lensed LED

source (emitter), an integrated circuit with detectors and

output circuitry, and a code-wheel which rotates between the

emitter and detector integrated circuit. This index is an

active high pulse that occurs once every full rotation of the

code-wheel. Resolutions up to 2048 counts per Revolution

are available in the two and three channel versions.

Features:

Two or three channel quadrature output, with optional index

pulse, TTL compatible single Ended outputs on HKT56

series, 100℃ operating temperature, Ender assembly, NO

signal adjustment necessary, Resolutions up to 2048 counts

per revolution, Maximum shaft diameter of 20 mm.

Applications:

The HKT56 series provide motion detection to a very high

resolution and accept a variety of shaft of shaft sizes up to a

maximum of 20 mm

Output waveform

90º Output phase difference, CW rotation

(CW rotation as seen from fit surface)

Pitch error of period: ±0.01T

Pitch error of phase position : ≤1/18T

Z phase: Tz=1/4T (1T, 1/2T, 1/4T…)

Period of pulses: T=360 º/N(N: output pulses)

Signal accuracy: Xn=1/4T±1/12T(n=1,2,3,4)

A leads B clockwise when viewing the encoder shaft end,

The position of Z phase against A,B phase is not specified.

TECHNICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS
Output wave	Square wave
Output signals	A,B phase or A,B,Z phase
Current consumption	≤40mA
Output current	0~5mA
Response Frequency	0~100KHz
Output phase difference	90º±45º
Supply voltage	5VDC
Signal level	VH≥85% Vcc, VL.≤0.3V
Number of pulses	1,000,102,420,002,040
Number of pulses	(Other number of pulse available on request)
Output circuit	Line driver, Voltage
MECHANICAL SPECIFICATIONS
Rotor inertia of code-wheel	Appr.6.0×10^-8kgm²
Hollow shaft diameter	≤φ20mm
Shock resistance	980M/S²,6ms, 2 times each on XYZ
Vibration proof	50M/S²,10~200Hz,2 hours each on XYZ
Working life	MTBF≥50000h(+25℃,2000rpm)
Weight	Appr.25g(with 0.5 meter cable)
ENVIRONMENTAL SPECIFICATIONS
Working humidity	30~85%(No condensation )
Storage temperature	-40℃~110℃
Working temperature	-25℃~100℃
Weld temperature	≤260℃
Protection class	IP54

Terminal assignment

Cable code	1	2	3	4	5	6	7	8
Cable Color	Black	Red	Green	Brown	Grey	White	yellow	Orange
Line driver output	0V	Vcc	SIG A	SIGA(_)	SIGB(_)	SIG B	SIG Z	SIGZ(_)
Cable code	1	2	3	4	5	-	-	-
Cable Color	Black	Yellow	Green	Red	white	-	-	-
Voltage output	0V	SIG Z	SIG A	Vcc	SIG B	-	-	-

Ordering code

_HKT56- ₀₈_WZ_{-- 001 G}_-_{500 BZ -- 5 E}

Series Hollow Shaft Encoder Sequence Connection Number Output Supply Output

Diameter Module Number of Pulses Signals Voltage Circuit

Dimensions
