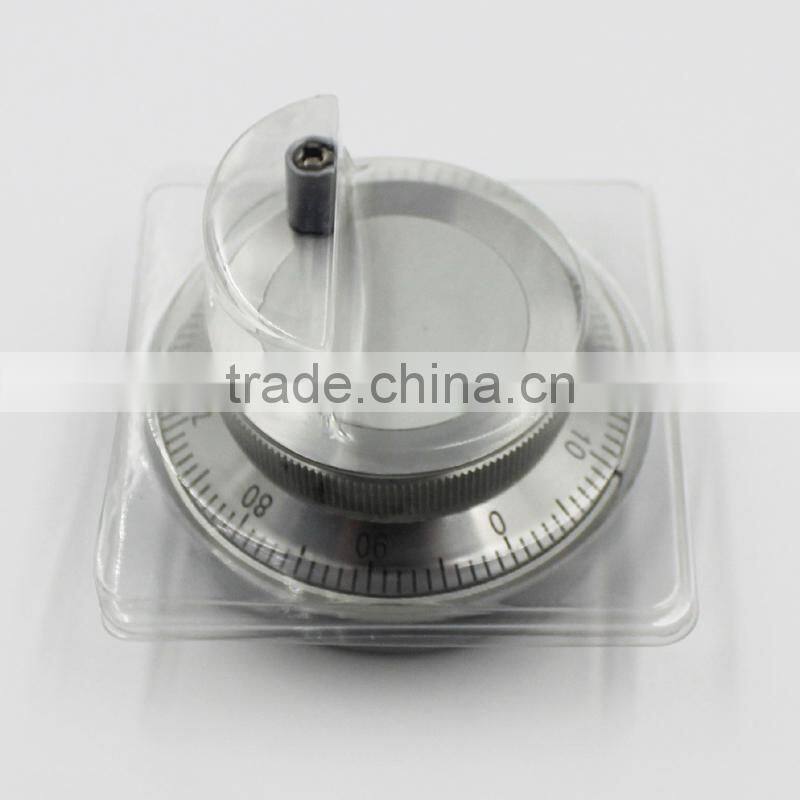

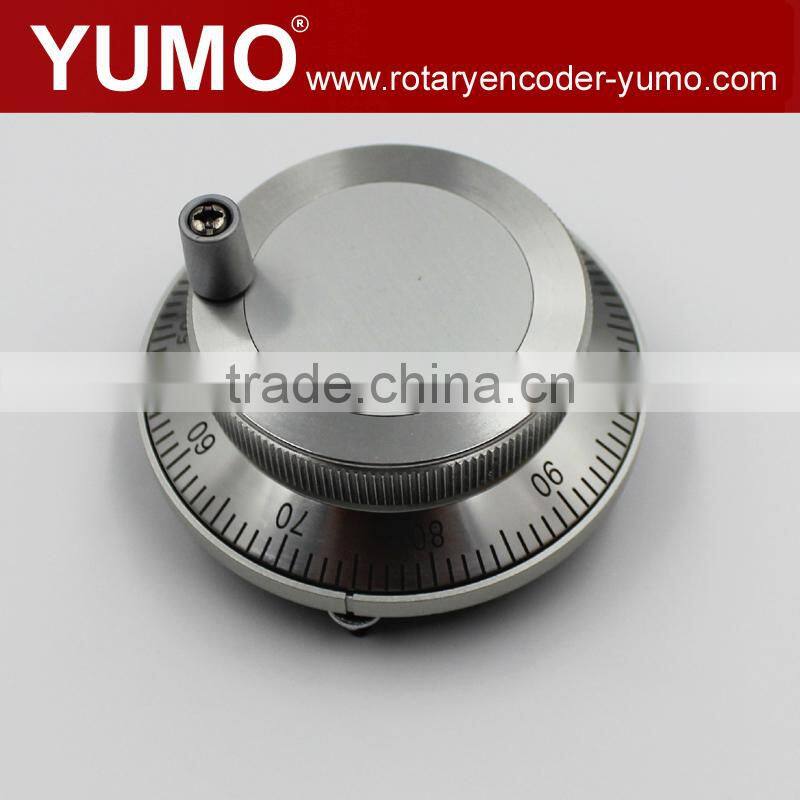

ISM8060 China Best Products Hand Encoder Pulse Generator Manual Pulse Generator CNC Handwheel MPG

Suitable for manual pulse input type such as NC or Milling machinery

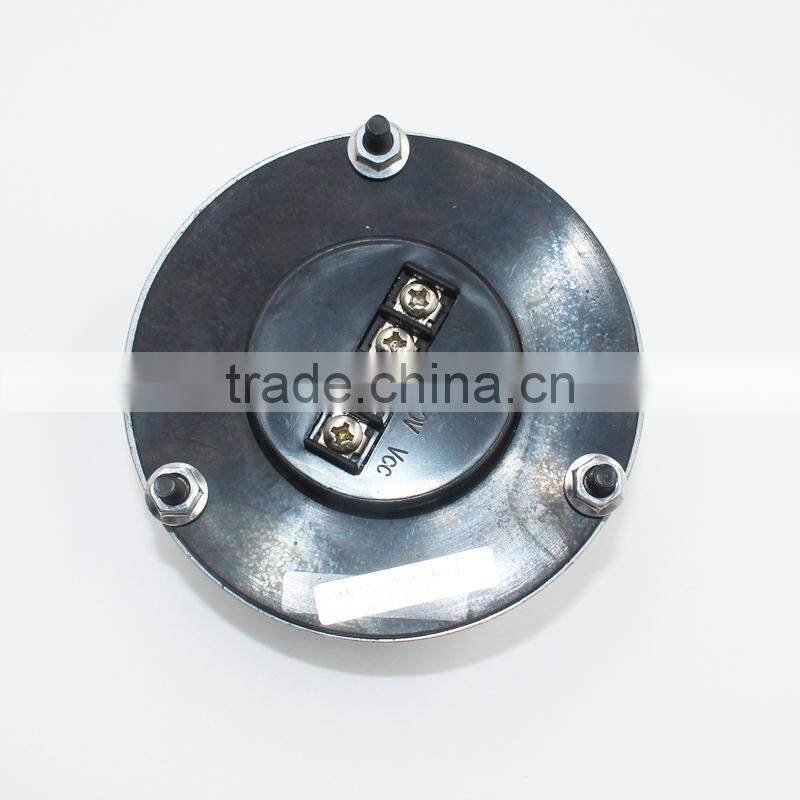

High reliability, terminal connection type

Power supply: 5V DC, 12V DC, 24V DC

Customer's logo is available

Application
Industrial tooling machinery

1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave

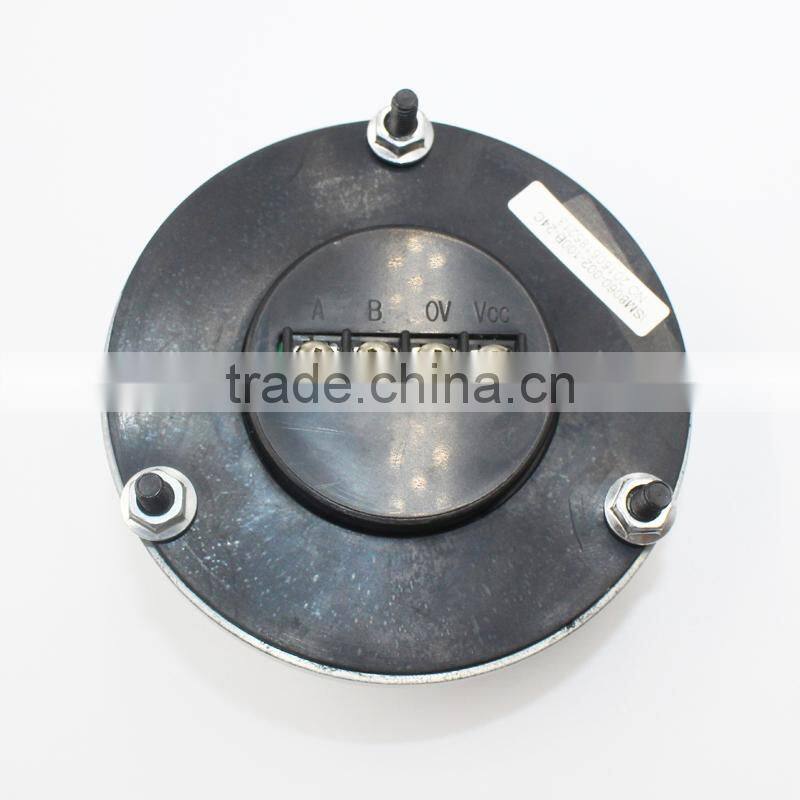

B). Output signals: A, B, (Line driver output A, A, B, B phase)

C). Current consumption: d100mA

D). Response Frequency: 0~20KHz

E). Output phase difference: 90*

F). Supply voltage: 5V DC, 12V DC

G). Signal leve: LVHe85%Vcc, VLd0.3V

H). Number of pulses: 100 (Other number of pulse available on request)

I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage


2. MECHANICAL SPECIFICATIONS

A). Signal position: 4 kind

B). Speed without sealing: 500rmp

C). Starting torque without sealing: d1.0x 10-2Nm (+25*C)

D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ

E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ

F). Working life: MTBFe10000h (+25*C, 2000rpm)

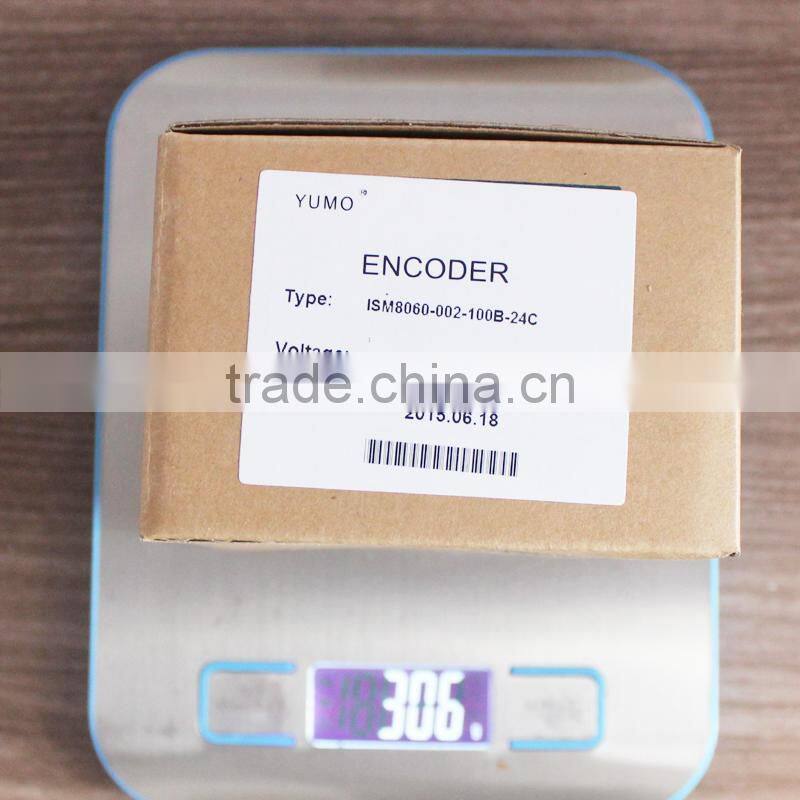

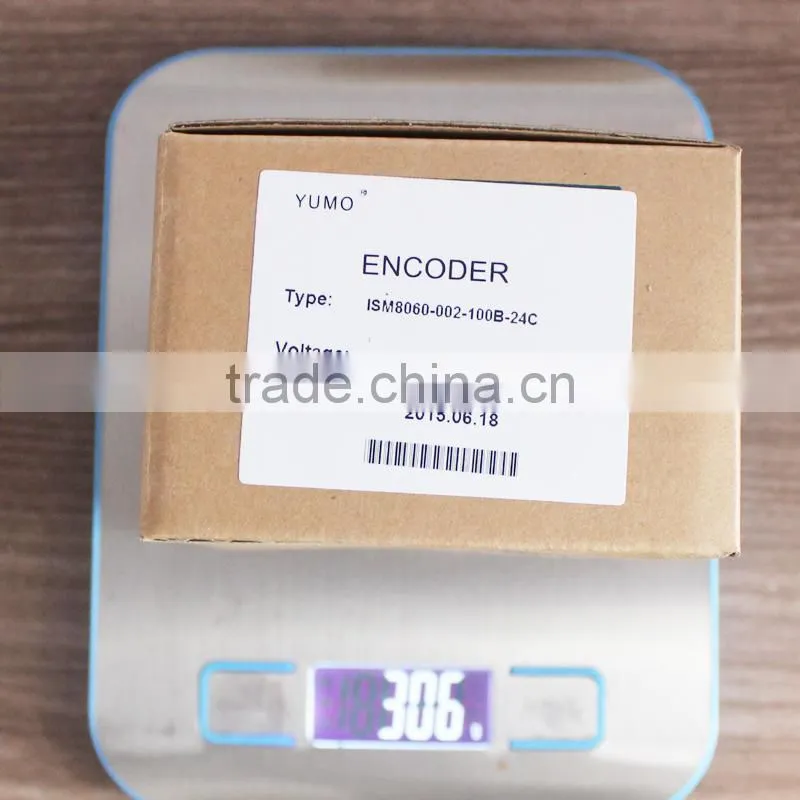

G). Weight: Appraisal 275g


3. ENVIRONMENTAL SPECIFICATIONS

A). Working humidity: 30~85% (No condensation)

B). Storage temperature: -30*C~85*C

C). Working temperature: -10*C~70*C

D). Protection class: IP54
