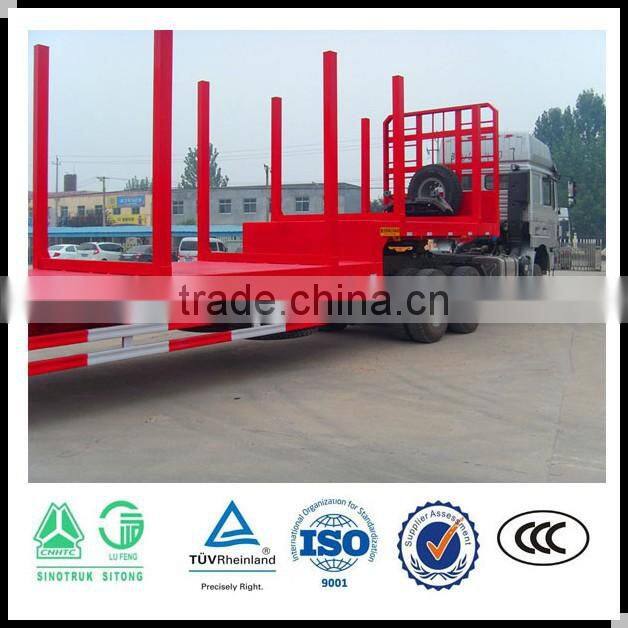

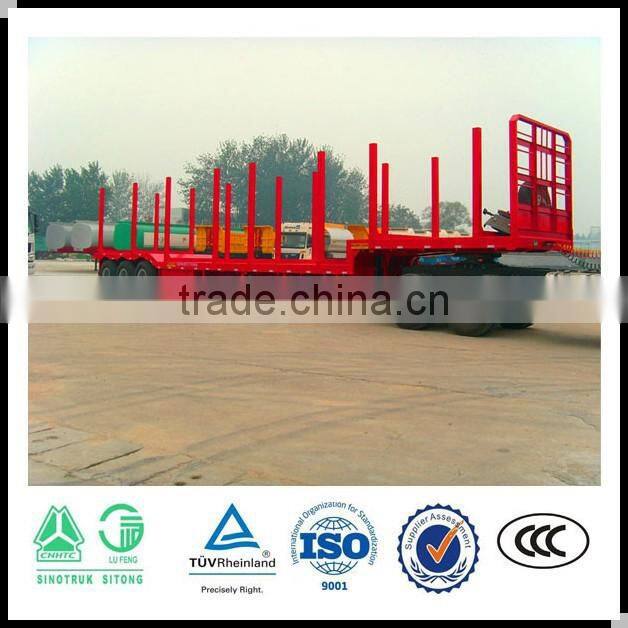

Best selling atv wood trailer for sale

Type

  3 axles wood transport semi trailer

Shipping Terms

Shipping by containers

Delivery time

 13 workdays for one set drop side semi trailer

Weight:

Tare Weight

7T

Loading Capacity

20--60T

Specification:

Axle number

Two/three

Axle specs.

FUWA

Suspension

 mechanical suspension

Wheel

12.00R20

King Pin

JOST 50# traction pin

Dimensions
 (LxWxH)

10000×2350*3980mm,

Support legs

28Tons/Jost D200T

Rim

8.5-20

Wheelbase

5980+1310+1310mm,

Steel Spring

10/10/10 pieces per axles

Tire:

Number of Tire

8 pieces

Spare Tire Carriers

2 pieces

Frame: (specs. and materials)

The material of
Main beam

The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm.

Side board

The height is from 600-1500mm ,

Platform plate

3mm Diamond Plate

Brake:

Brake

Kemi Brand of China

Brake Chamber

Four double and two single chamber( TKL brand  )

ABS system

without

Electrical:

Voltage

24V

Receptacle

7 ways(7 wire harness)

Light color:

Side marker lamp

Orange

Rear lamp

Red

Turn signal lamp

Orange

Miscellaneous:

Painting

According to the requirement of the buyer

Marking

According to the requirement of the buyer

Side Guard

According to the requirement of the buyer

Tools box

One pieces or According to the buyer
