Home > Instruments & Meters > Electronic Instrument > Oscilloscope > Spectrum Analyzers GSP-810

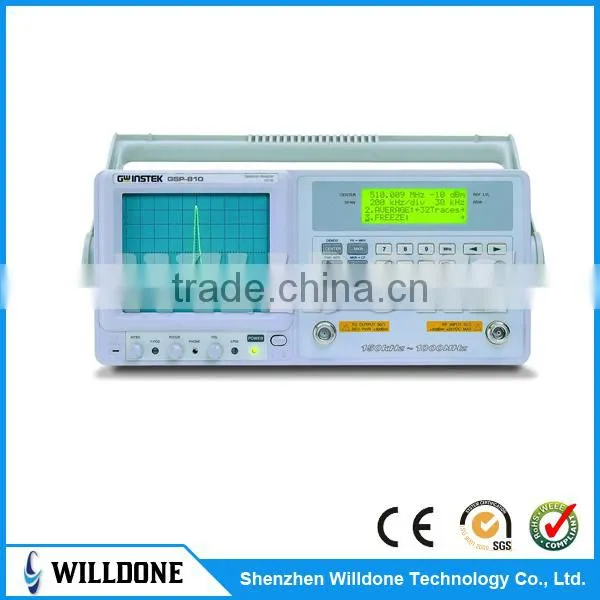

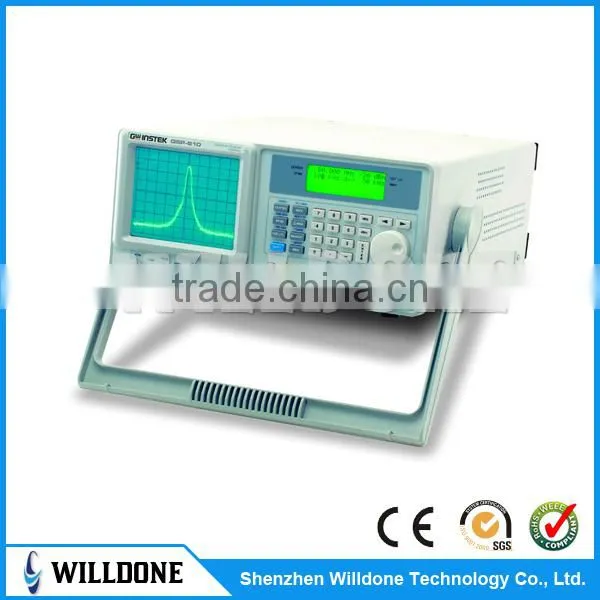

Spectrum Analyzers GSP-810

Name: Spectrum Analyzers GSP-810
Brand: GW Instek
SKU: 141226960
Availability: InStock

Shenzhen Willdone Technology Co., Ltd.

US$ 1 - 1,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

GW Instek

Model Number:

GSP-810

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name GW Instek

Model Number GSP-810

Features

Frequency Range: 150kHz ~1GHz
Fully Digital Phase Locked Loop Technique Design
High Frequency Stability:±10ppm
RBW : 3K, 30k, 220k, 4MHz
High Input Protection Level : +30dBm,±25VDC
Reference Level Range : -30dBm~ +20dBm
Two Markers for Absolute and Relative Measurement
Support standard RS-232C Interface to connect with PC
Options: Tracking Generator, Power Meter, Remote Control Software

The GSP-810 Spectrum Analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 is also designed for rugged use with 1-watt input protection. With a compact size and feature packed functions, the GSP-810 is an affordable, expandable, and high quality instrument for the most demanding needs.

FREQUENCY
Frequency Range	150kHz~1GHz
Aging Rate	± 10ppm, 0~50°C, 2ppm/yr
Span Range	Zero, 2kHz~100MHz/div in 1-2-5 sequence
Phase Noise	-77dBc/Hz @ 1GHz 30kHz offset
Frequency Resolution	1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
Frequency Display	6 1/2 digit setting
Frequency Control	Digital phase locked
RESOLUTION BANDWIDTH
RBW Range	3kHz, 30kHz, 220kHz, 4MHz
RBW Accuracy	15%
Video Bandwidth Range	1.6kHz/90kHz couple with RBW
AMPLITUDE
Measurement Range	-100dBm~+20dBm
Overload Protection	+30dBm continuous, ± 25VDC
Reference Level Range	-30dBm~+20dBm
Amplitude Display Range	75dB
Amplitude Accuracy	±1.5dB typical @ 0dBm, 80MHz
Frequency Flatness	±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz
Amplitude Level Linearity	± 1.5dB over 70dB
DYNAMIC RANGE
Average Noise Floor	-95dBm @30kHz RBW, -100dBm typical / -75dBm: 150kHz~10MHz
Third Inter-Modulation	<-70dBc, @-40dBm input, 2tones, 2MHz apart/ <-45dBc:150kHz~10MHz
Harmonic Distortion	<-40dBc, RF input < selected reference
Non-Harmonic Spurious	<-60dBc typical down from reference level, average, 5MHz/div
DISPLAY SYSTEM
Display Device	CRT Display, 8 x 10 graticule, 6-inch waveform screen LCD Display, 4 line x 20 character data screen
Display Function	Center Frequency Control, Bandwidth, Reference Level, Span Range, Amplitude
FUNCTIONS
Marker Mode	Absolute, relative, PK->marker, marker->center
Number of Markers	2
Marker Resolution	0.1dB, 1kHz
Marker Accuracy	0.1dB±amplitude accuracy
Memory	10 save/recall memory
Trace	Max. hold, average(2~32 traces), freeze(Hold)
Setup	Access parameters
Demodulator	WB FM, 120kHz deviation MB FM, 75kHz deviation NB FM, 30kHz deviation AM Outputs : Internal speaker, 3.5mm stereo jack, wired for mono operation
Calibrate Signal	80MHz, -30dBm
Interface	RS-232C standard & remote display software (The software will be downloaded from GW Web-Site.)
POWER SOURCE AC
	100V/120V/220V/230V ±10%, 50/60Hz
ACCESSORIES
	User manual x 1, Power cord x 1
DIMENSIONS & WEIGHT
	310(W) x 150(H) x 455(D) mm Approx. 8.5kg
