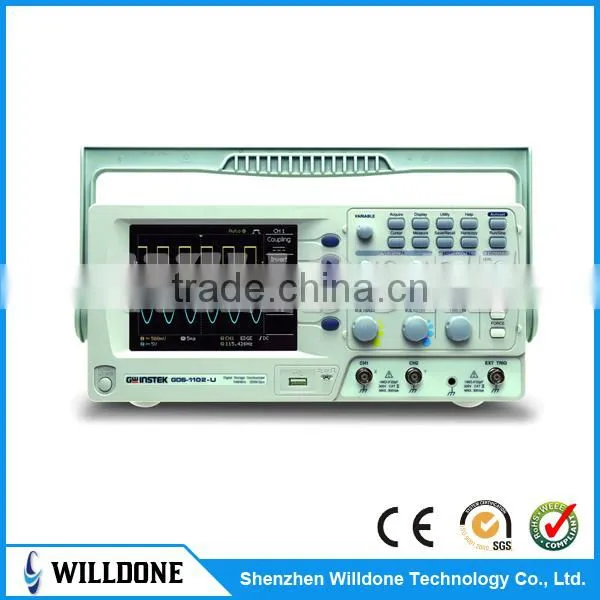

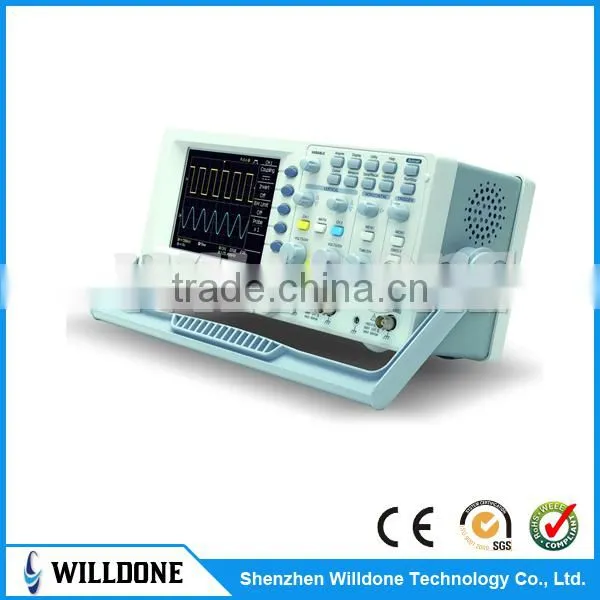

Digital Storage Oscilloscopes GDS-1000-U
USD $1 - $1,000
/ Piece
1 Piece(Min.Order)
- 20 Parcel / Parcels per Month
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin: | Taiwan | Brand Name: | GW Instek | Model Number: | GDS-1000-U |
Product Description
Digital Storage Oscilloscope,
Features
- 100/70/50 MHz Bandwidth with 2 Input Channels
- 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.7" TFT Color Display
- 19 Auto Measurements
- Arithmetic Operators - Add, Subtract, FFT
- USB Port for PC Connection
- Data Logger
- Limited Lifetime Warranty
The GDS-1000-U Series offers 100MHz, 70MHz and 50MHz digital storage oscilloscopes with 5.7" color TFT LCD displays. With dual sampling modes, a 4,000 point record length, a real-time sampling rate of 250MSa/s and an ET sampling rate of 25GSa/s, the GDS-1000-U Series DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device port support. The GDS-1000-U Series is designed to meet today's most demanding engineering requirements and budgets.
| GDS-1102-U | GDS-1072-U | GDS-1052-U | |
| Waveform Technology | - | ||
| Display | 5.7" TFT LCD Color | ||
| Bandwidth (MHz) | 100 | 70 | 50 |
| Number of Channel | 2 | 2 | 2 |
| Memory Depth | 4k Points | ||
| Sample Rate | 250MSa/s (RTS) | ||
| Vertical Resolution | 8-bit | ||
| Vertical Sensitivity | 2mV/div ~ 10V/div | ||
| Time Base Range | 1ns/div ~ 50s/div | ||
| Input Impedance Selection | 1MΩ | ||
| Auto Measurement | 19 | ||
| Waveform Memory | 15 | ||
| Panel Setup Memory | 15 | ||
| Auto-Set | V | ||
| Auto/Normal Trigger | V | ||
| ALT Trigger | - | ||
| TV Trigger | V | ||
| Cursor Readout | V | ||
| XY Mode | V | ||
| Zoom | V | ||
| Go/NoGo | V | ||
| Zoom FFT | - | ||
| Counter Function | V | ||
| Function Generator | - | ||
| Logic Analyzer | - | ||
| Data Logger | V | ||
| Digital Storage | V | ||
| Go/NoGo Output | - | ||
| Interface | USB Host/Device | ||
| SVGA Output | - | ||
| Buzzer Alarm | - | ||
| PictBridge Compatible | - | ||
| Battery Power Operation | - | ||
| LED Indicators | - | ||
| Z-Axis Input | - | ||
| LabView Driver | V | ||
| Power Source | AC 100V ~ 240V | ||
