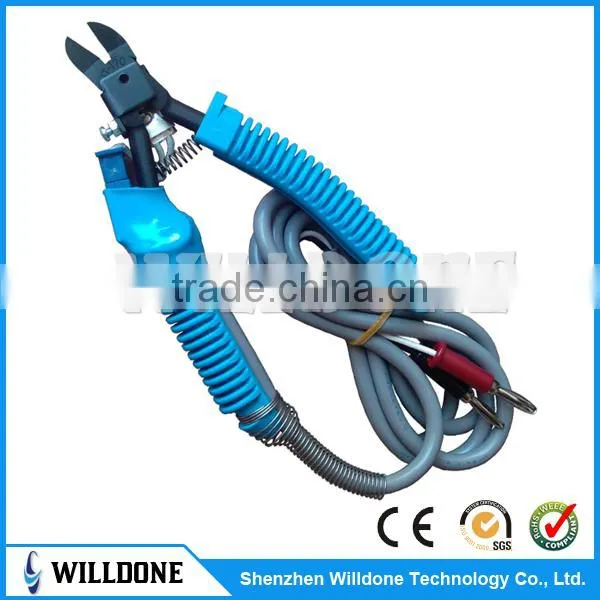

Muromoto heat nipper

Diagonal cutting pliers

HT-170  Muromoto heat nipper

Place of Origin: Guangdong, China (Mainland)

• Brand Name: MERRY
• Model Number: HT-170
• Type: Diagonal Pliers
• Material: CRV
• Application: Cutting
• Model: HT-170
• Materail: CR-V
• Length: 150mm
• weight: 325g
• Cutting Capacity: 4mm
• Equivalent To Other Brands: W19
• Blade temp: 140℃

Using method:

* power cable plug in the AC220V power outlet

* Please insert the banana plug electric scissors transformer OUT PUT socket.

* Please put the switch in the ON position.

When the temperature of the electric heating needs more cutting edge at high temperature, adjusting knob to the direction of HIGH, low temperature, transferred to the LOW direction

Maintenance method

1. When not in use must clean the blade surface adhesive residue, and wipe on a layer of thin oil, lest blade stuck, affecting the timeliness of the work!

Simple maintenance

When the electric heating film can not heat:

1. The first three meter testing scissors part of the circuit is smooth (such as circuit barrier, most electrothermal aging damage, the need to replace the electric heating sheet, the replacement of the electric heating plate, if the circuit is also unreasonable, said other contact contact undesirable or wire breakage and repair shall be)

2 turn on the power of the transformer to inspect whether the power supply is shining (if the power light is not on, the external fuse) is needed.

3 open the transformer housing, inspect the PC board on the fuse is damaged (if the damage is replaced)

4 did confirm the above three steps, still cannot be used normally, it shall be repaired.
