Extrusion/ expanded/ puff fryer

Specifications

1.automatic fryer and continus fryer
2.excellent frying quality
3.kinds of energy
4.Extrusion/ expanded/ puff fryer

Our company can produce kinds of Fryers

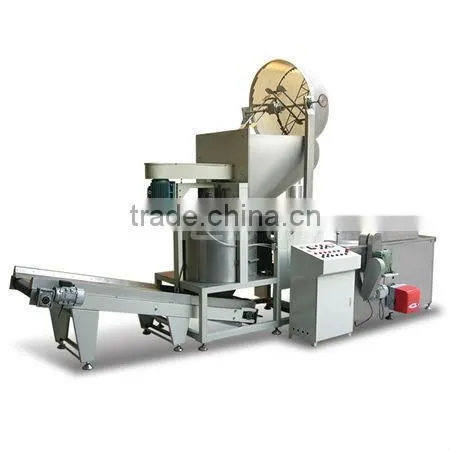

ZYG  Automatic Fryer





1 Integrating frying and de-oiling with conveying under compact structure.
2 Controlled by PLC, high automation.
3 Advanced temperature controller and stirring device have the frying to the optimum.
4 Diesel (gas) burner ensures temperature up quickly with high thermal efficiency.
5 Automatic and manual operation are available.





 Technical Parameter



Model	ZYG Automatic fryer
Capacity	150~250kg/h
Driving power	5kw
Heating temperature	~250°C
Oil consumption	8~1kg/h
De-oil time	3~20s
Burner	150,000kcal
Dimension	4800×2230×2900mm









 LXZ 6000  Continuous Frying Line



De-oil Line





 1 Recirculation heating by hot oil furnace keeps the frying oil temperature up quickly and small fluctuation
  2 Dynamic oil filter makes it easy to clean waste at any moment on the process to keep oil fresh and avoid oil deteriorated
  3 Optimized fryer structure ensures small consumed oil and high oil velocity
  4 Separated frying and conveying part makes it easy to clean., and vibrating feeder guarantees the equal feeding
  5 Energy resources such as diesel, gas or coal are available



Technical Parameter



Model	LXZ4000	LXZ6000	LXZ8500
Capacity	400-600kg/h	800~1500kg/h	1000-1500kg/h
Driving power	18.66kw	18.66kw	19.35kw
Heating temperature	~250°C	~250°C	~250°C
Frying time	6-60s	10~90S	13-120s
Dimension	15500*8000*2800mm	17500×8000×2800mm	20000*8000*2800mm
Boiler	Hot oil boiler	Hot oil boiler	Hot oil boiler



We also can design new shape or new capacity upon on customer request.





Jinan Dayi Extrusion Machinery Co., Ltd. Is the advanced professional manufacturer of Extrusion Food Machinery in China.



Our single-screw & double-screw extrusion machines have been used to produce a lot of snacks, such as, extrusion leisure snacks, breakfast cereal food, pet food, aquatic feeds, textured proteins, vegetarian meat, etc;



We will serve the best for you, both quality and technology. Contact me~
