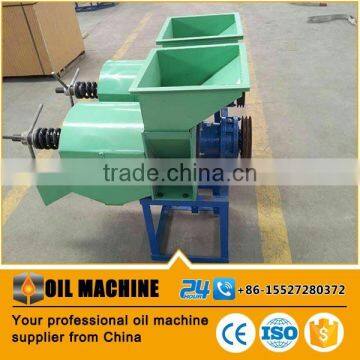

Small Capacity palm kernel oil mill machine palm oil extraction machine price

1. What is the section of the palm oil mill?

(1)Raw materials receiving: Fresh palm fruit bunch will be loaded on a slope. Under the slope, there are some cages to receive the palm fruits.

(2)Sterilizing: fresh palm fruits bunch are airtight sterilized in sterilizer. The purpose to prevent enzymes broken down, avoiding FFA content in oil further increase.

(3)Threshing: The purpose of threshing is the oil palm fruits be separated from the fruit bunch through strong vibration,

(4)Pressing: Oil palm fruit pressed is divided into two parts: oil, water, solid impurities mixture and the press cake (fiber and nuclear). Oil, water, solid impurities mixture by the crude oil gutter inflow to oil purificationsection; press cake by breaking screw conveyor into the fiber- recovery section.

2. What is the section of palm oil refinery & fractionation workshops?

(1)Degumming: This is the most important section of hydrate de-gumming, manage the adding water (there is a little P-acid in the water) amount, temperature and add water speed, usually water adding amount is about 3 times of phospholipid content, that is 3-10% oil weight, water temp needs to be higher than oil temp.

(2)Deacidification:This part adopt alkali refining method, that is use alkalis like (NaOH) to neutral the free fatty acid in oil, during this process it will produce soapstock , then separated from the oil by setting several hours. NAOH solution, not only neutral free fatty acid, also can act with other matters like protein, mucus, phospholipid, pigment. After settling, release the soapstock from the tank bottom. Adding hot water to rinse, remove off the leftover lye , soap and some unhydrated phospholipid in the oil. Finally pumping out soapstock from the tank bottom

(3)Decolorization: In normal situation , there is pigment in the crude oil , we need to using the active clay to absorb the pigment away , after 20 mins , we use the vibrating filter to filter the waste clay away . If you want to get light color oil , you need to add more active clay . That is mean , the customer can accord to his requirement to control the oil color. This process is carried out under the vacuum condition.

What is the palm oil mill consumption in operation?

Why choose us?

1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing edible oil machine,best production capability,best quality control, Best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.

Company view

Our certificate

FAQ

Q1: What is the Warranty for the machines?
A1: 1 year for free.

Q2: What is the Material?
A2: Stainless steel and carbon steel.

Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.

Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.

Q5: How to ask quotation?
A5: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you quotation as soon as we can.

Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.

Q7: Why need extraction ?
A7: If only pressed, oil residue inside cake is very high at lease 6%. But after extraction, the oil residue will be less than 1%, which greatly increases the oil yield.

Q8: Vegetable oil plants require how large of a workspace?
A8: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.

Q9: How long will it take to receive my products?
A9: As a general rule, it will take one Month for us to produce.

Q10: Do you offer oversea installation?
A10: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
