High efficiency wood pellet production line wood pellet making machines

1. Complete Wood Pellet Line can press 4-12mm diameter biomass fuel pellets and fertilizer pellets ,such as biomass waste from sawdust, rice husk, beech

wood ,coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic ect, such as

fertilizer materials from animal manure ,plant waste ect . there is knives installed nearby our pellet outlet door, whichcan adjust pellet length.

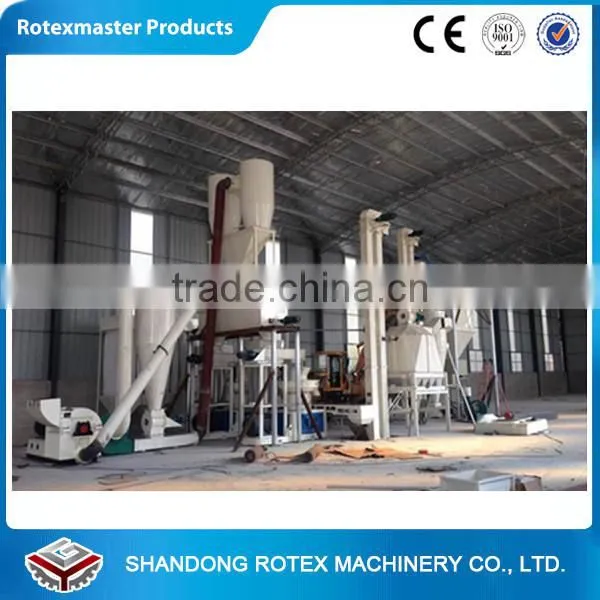

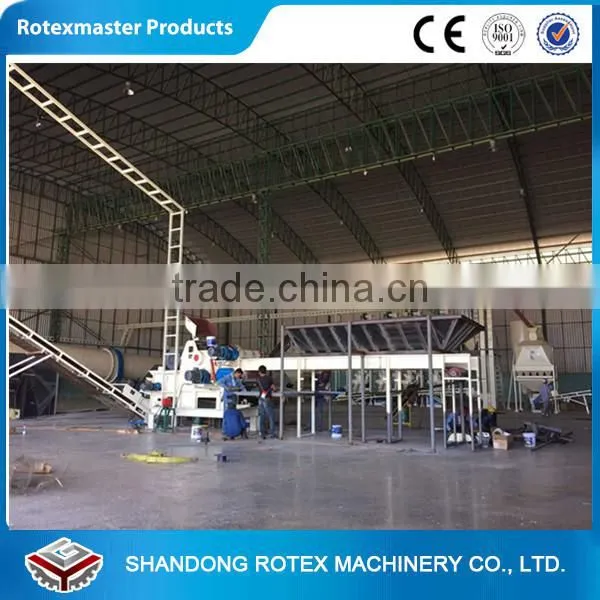

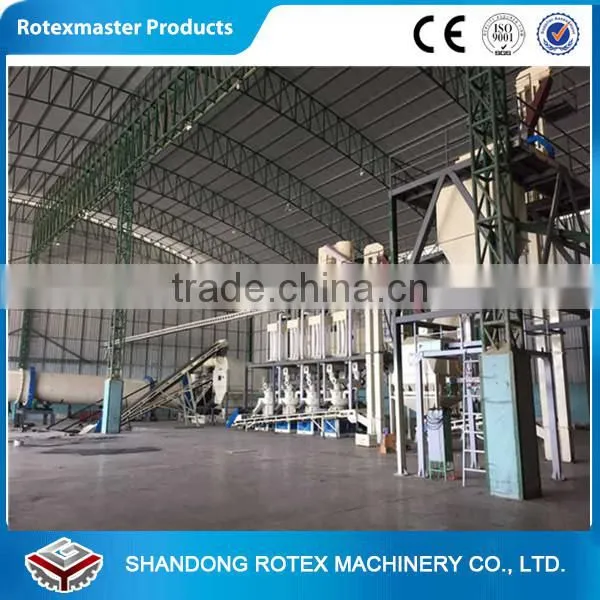

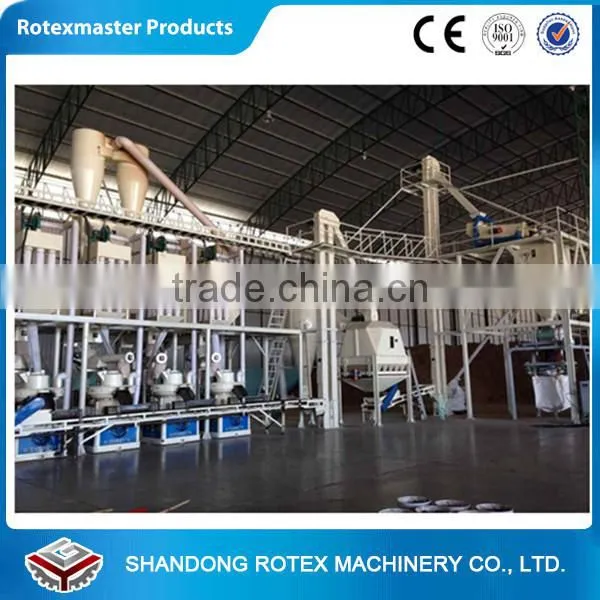

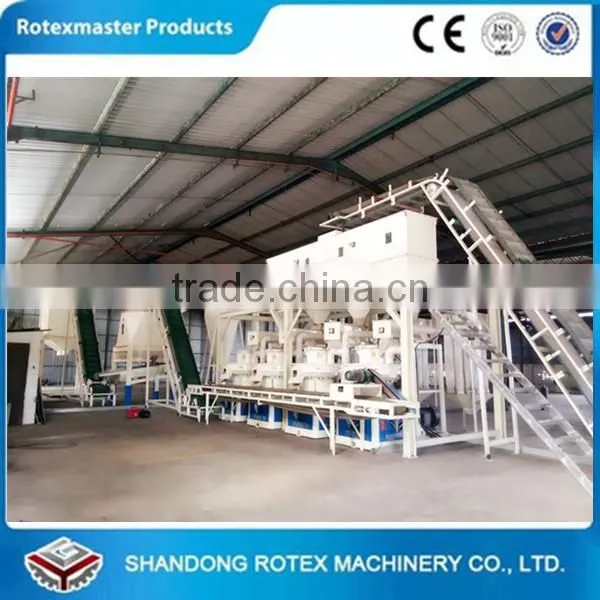

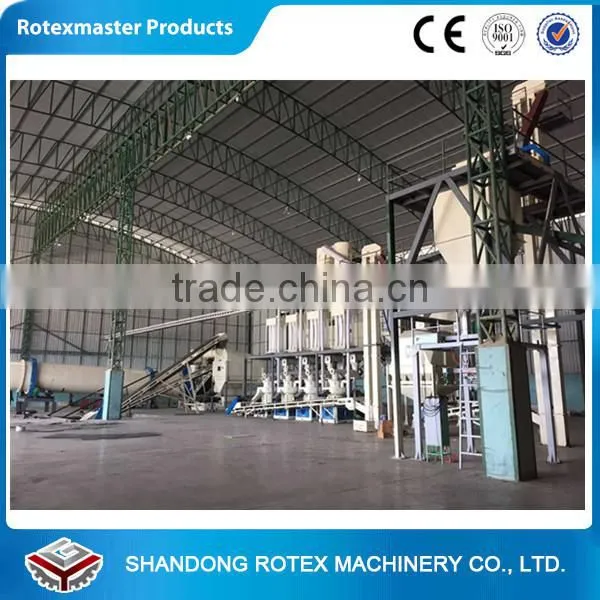

2. Complete Wood Pellet Line contains Chipping Section, Grinding Section, Drying Section,Pelletizing Section,

Cooling Section ,screening Section, PackingSection .invest price is low and working efficiency is high

 3. Complete Wood Pellet Line key pellet machine has one two layers ring die inside and roller assemble , when

works ,roller assemble will move , ring die keep stable , in this way will produce large pressure and press good

pellets . Also the two layers die :top layer and bottom layer, only bottom layer works, when ring die is broken, then

take over it and make top layer into bottom, in this way one ring die can use two times , also top layer and bottom

layer hole can be different , so one ring die also can press two dimension pellets.but other suppliers pellet machine only can press one type

  CHIPPING SECTION

    YMPJ-G 216, 218, 2113 Model Drum Wood Chipper will cut  a large number of  wood logs into  Wood Chips  (  Finished Wood Chips Size :  Less than 30mm ).  This machine  is large Output , High Efficiency,  It can crusher  the nail (less than 8mm nail ).

DRYING SECTION

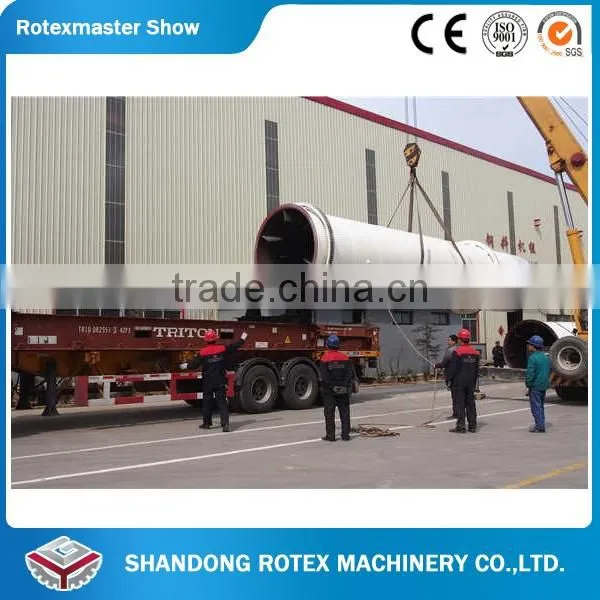

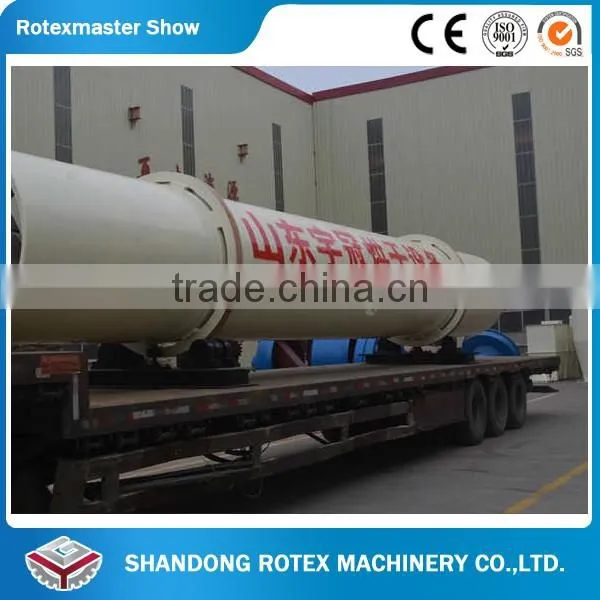

       Roatry Dryer  mainly professional dry the moisture of raw materials( such as sawdust ,  wood chips and so on )  into 13%-15% suitable moisture .  If raw materials moisture is big , it need to dry the materials by rotary dryer , because   13%-15% moisture is suitable for producing the good wood pellets .

CRUSHING SECTION

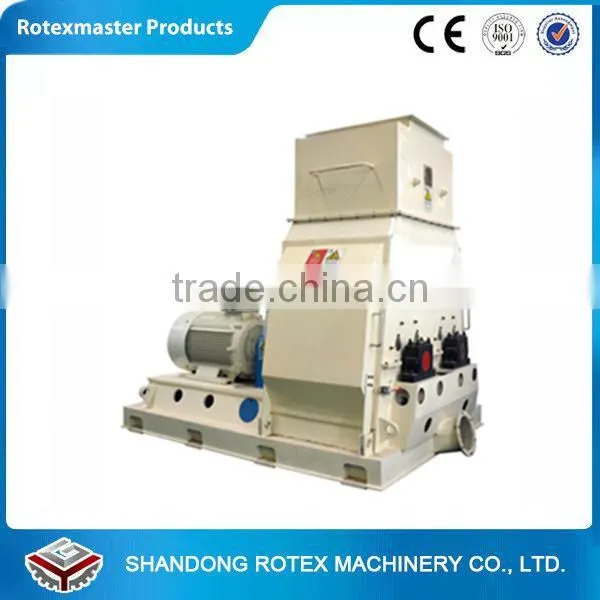

  YSCD 65*75 , 65*100, 75*100 Model Double -Rotor Hammer Mill  mainly crush wood chips into sawdust (Size : 3-5mm ),  High  Quality , Large output.

PELETIZING SECTION

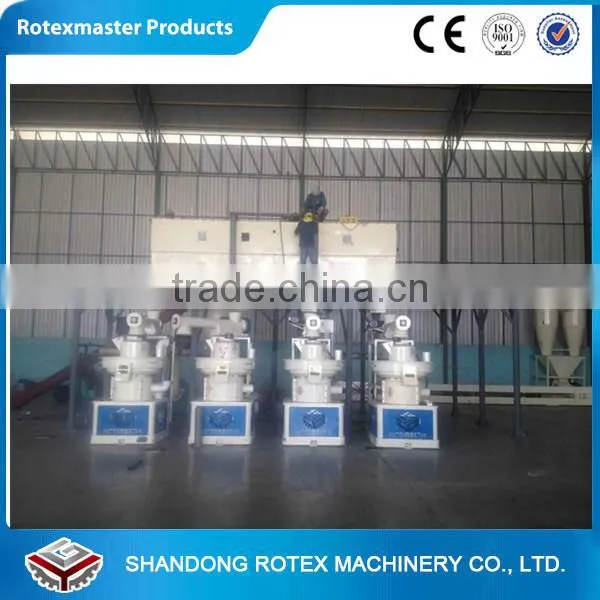

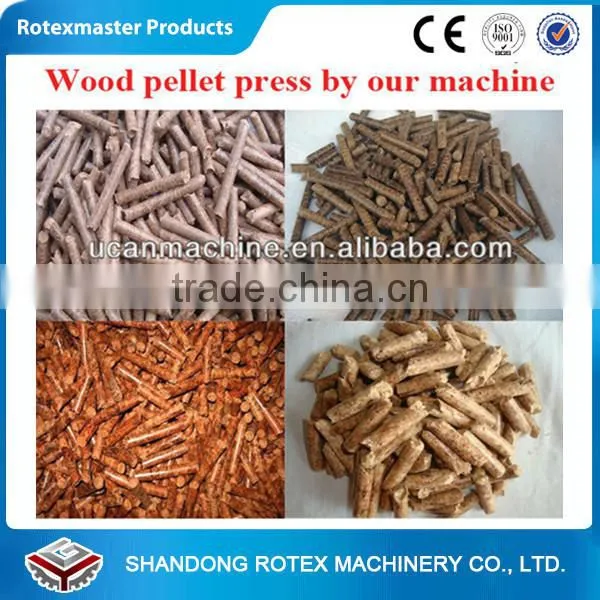

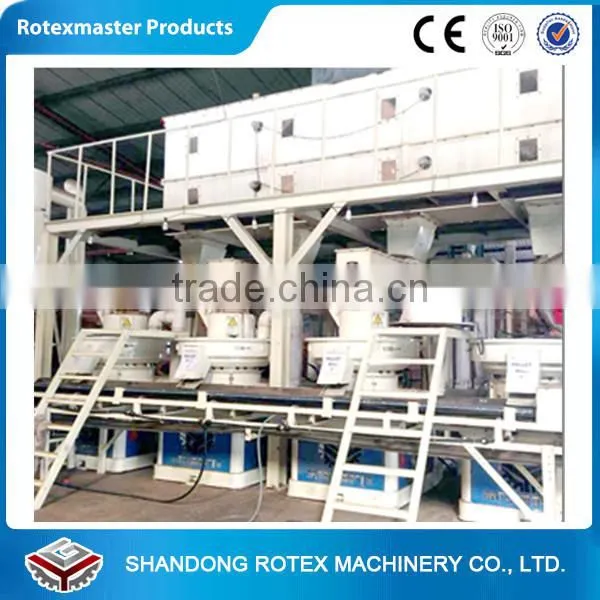

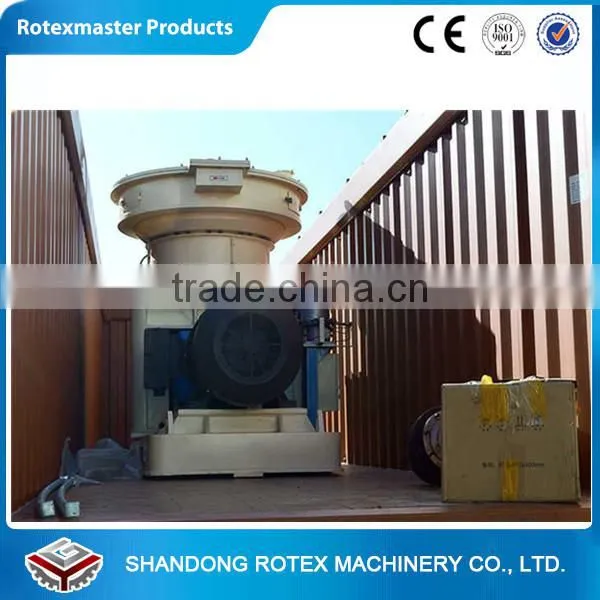

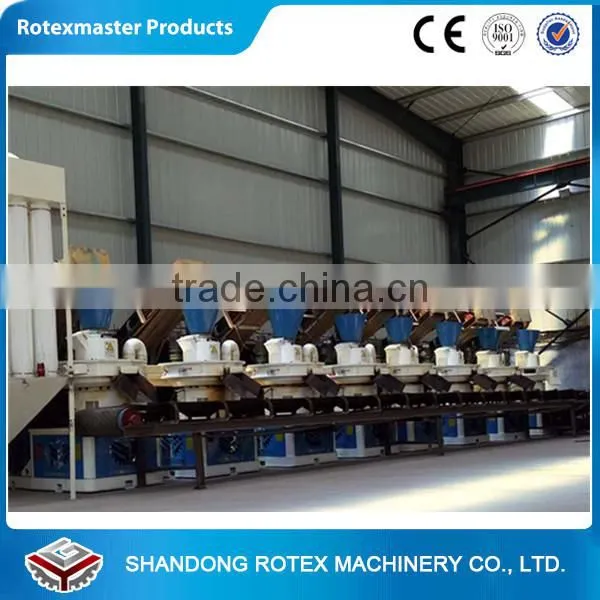

     YGKJ560,680,850 Model  Vertical Ring Die Wood Pellet Machine Produce the wood pellets , Straw pellets , EFB , Palm Shell , Rubber Pellet  , Beech Pellets and so on . Finished Wood Pellet Diameter is 6mm, 8mm, 10mm , Usually 6mm  is European  Standard , 8mm is  Asian ( such as Korea , Vietnam , Thailand , Malaysia and so on ) ,10mm is Our China Standard.

Pellet Moisture is 8%-10%, Pellets of Heat  Value : 4200-4800Kcal /h

Pellet Density :1.1

CE&ISO&SGS Certification

Cooling Section

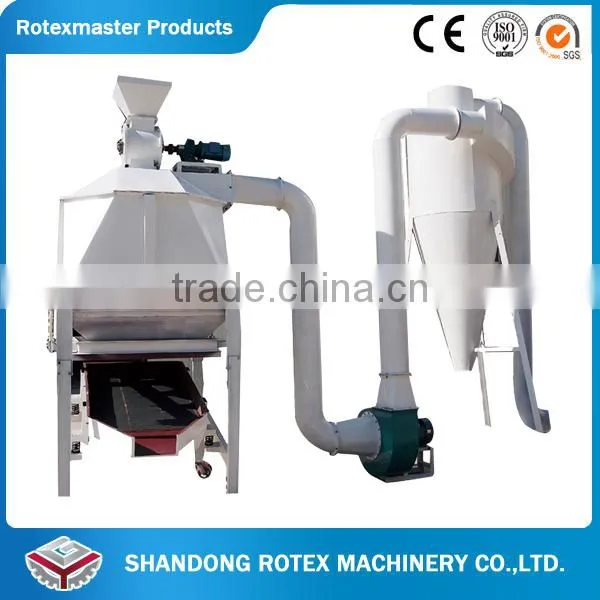

 YSKLN-1.5,2.5,4, 6  Counter Flow Cooler Machine  will cool the high temperature of wood pellets into normal temperature.  this machine can wood pellets  is better , Good storage , Hardwood ,Good Quality .

PACKING SECTION

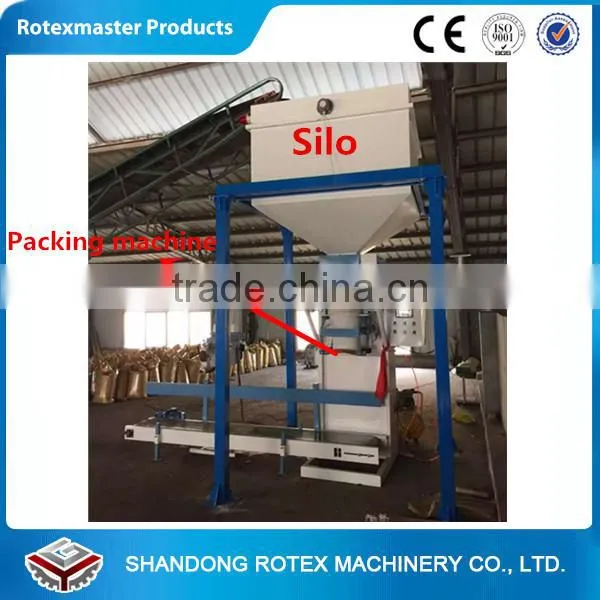

     Packing machine can packing the 2-10kg/bag ,5-20kg/bag ,20-50kg/bag wood pellets , this packing machine can pack the 300-400bags/h , if you want to Ton bag packing ,  we suggest that you use  the Ton-packing machine , Large output , High efficiency please check the following picture :

IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE CONTACT ME , WE WILL PROVIDE THE PROFESSIONAL TECHNOLOGY AND BEST MACHINE FOR YOU .
