Production Line Making Machine Aluminum Foil Pan
Product description:

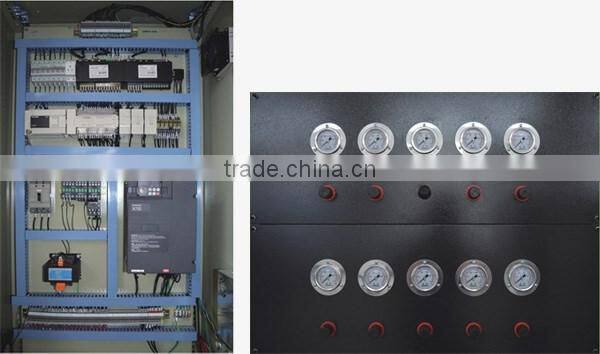

The Press which offers a large tool area is optimized for fast mould change and easy setup. The shut height is adjustable according to the mould requirement. The Press has 12PLC controlled solenoid valves with independent pressure redulators for optimal tool setup and adjustment. The press is also equipped with 4 additional pressure tanks for optimal air distribution.
The operator of the machine only has to set up the packaging requirement(pcs to count)at the touch screen and collect the finished counted and stached products on the end of the line.
Advanages:
2. Main motor is made by Siemens.
3. Adopts combined pneumatic friction clutch and brake.
4. Cluster gear adopts the flooding oil lubrication.
5. Six-face rectangle lengthen guide;
6. Equipped with hydraulic overload protecting device.
7. Electric shut height adjustment with digital display.
8. Equipped with lifting balance cylinder.
9. Duplex valves imported.
10. Electric compelling grease lubrication system.
11. Balancing cylinder adopts manual lubrication system.
12. One set of blowing device.
| Nominal force | 550KN,C-Type Press |
| Stroke time | 20-70 times/ Min. |
| MSlide block stroke(Optional Size ) | 200/220mm(Option) |
| FMax.height of mould installation | 350mm |
| Height adjustment for mould | 80mm |
| Distance from slide block center to body | 360mm |
| Adjustable work block dimension X2 | 720 (L)x200(W)x300(H)mm x2 |
| Dimension of Slide block bottom surface | 225x400mm |
| Hole Dimension Slide block bottom surface | 200x360mm |
| Size of centering hole(DiameterxDepth) | 50x60mm |
| Press Machine Type | Electric shut hight adjustment |
| Press Net Weight | 5,000KG |
| Voltage &Frequency(Optional) | 380V, 50/60Hz, 3 Phase |
| Total power | 7.5kW |
| Press dimension (LxWxH) | 1600x1000x2500mm |

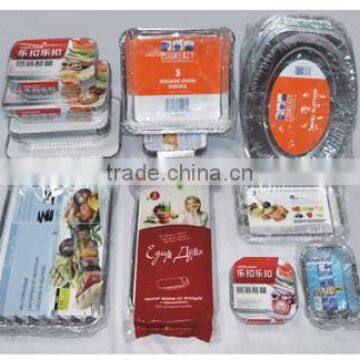

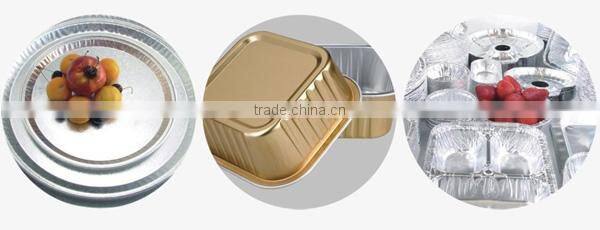

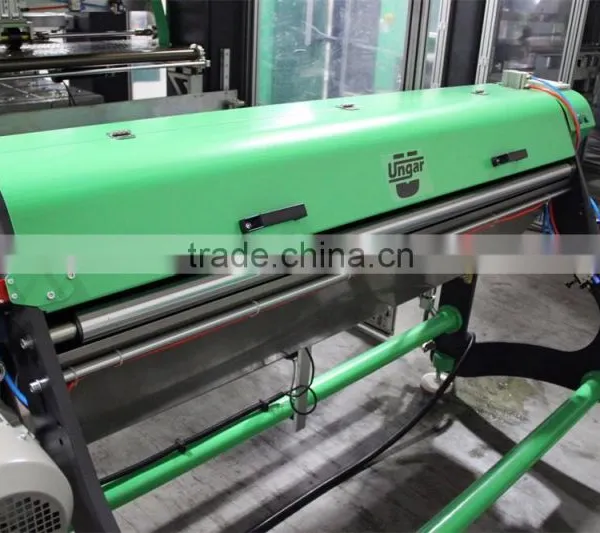

Product pictures:

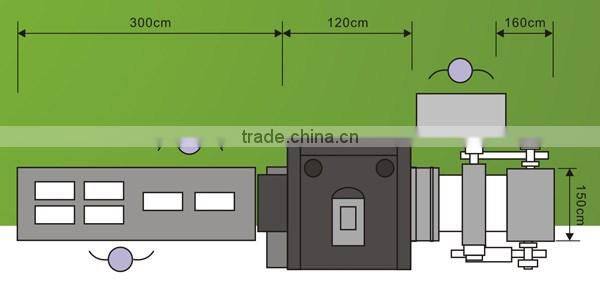

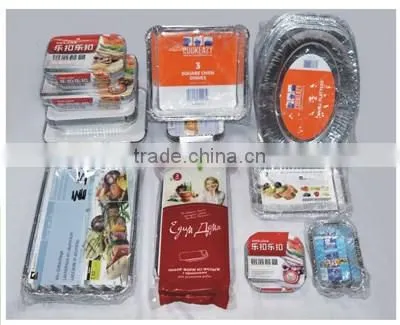

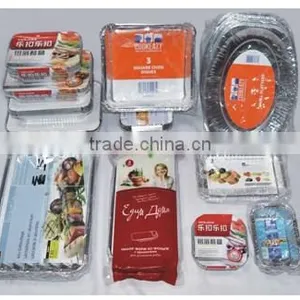

Complete Aluminum Foil Containers Production:
Company information:
UNGAR Machinery (Shanghai) Co., Ltd is an Austrian enterprise established in 2009, supplying high productive multi-cavity moulds and machines, which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap press and additional equipments.
UNGAR complete integrated production line has been specially designed and developed for the production of aluminum foil food container, plate and household foil rolls.
UNGAR Machinery (Shanghai) Co., Ltd also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
