Small capacity poultry feed making project

                                       Small capacity poultry feed making project

Poultry feed product line include 6 process section: raw material reception and cleaning, crushing section, mixing section, pelletizing section, cooling and crushing section, screening and final package section. Auxiliary equipment include oil feed system, steam supply system and air compress system.

Name: 9KLH Series Ring Die Pellet Mill

Dimensions(mm): 1155*1098*725

Power(kw): 22

Volume(m ³): 0.5-1.5

Product features
Single motor V type belt drive system, low maintenance cost, safety and stability of transmission, flexible transmission, little vibration, smooth granular, suitable for ordinary livestock and poultry feed production; Granulating machine base by the national standard steel plate welding, surface sandblasting anti-corrosion treatment, long life; The spindle is equipped with overload protection device, feeding the safe and stable; Equipped with two sets of knife components ; equipped with safety interlock device of the machine back for protect the pellet mill; With the standard Siemens (BEI ) motor and selectable force feeding equipment

Name: SFSP66 Series Wide Hammer Mill
Screen mesh diameter(mm): 0.6-8
Power(kw):55/75

Capacity(t/h): 2.8-5.0/ 6-12.5

Product features

Crushing chamber adopts advanced water body design, with a secondary crushing tooth plate, shaft end with the wind device, change the movement direction of the material, break effective circulation layer, to crush materials thoroughly, and accelerate the sieving of small particles, reduce temperature of the crushing chamber, thereby improving the output of this series of crusher; Motor integral milling, rotor dynamic balance processing, make the mill less vibration, lower noise, run more smoothly, more efficient; The open door operation and safety interlock device, to ensure open the door safe and convenient; Linkage type pressure screen, make the screen surface replacement more convenient and reliable ;Application of new material such as tungsten carbide, extend the hammer crushing service life of wearing parts; The standard Siemens (BEI) motor and the import bearings (SKF/NSK international first-line brand) Production: raw materials with corn, moisture 14% or less

Name: 9HWS-2000 Double Shaft Mixer
Dimension（mm）：3150*3040*2400

Effective volume (m³)： 4.0

Mixing amount per batch(kg)：2000

Mixing time per batch(s)：60-180

Mixing evenness CV%：≤5

Power（kw）：37

Advantages
Fast mixing speed and high mixing uniformity;

Special design discharging structure, large door-open angle, swift discharging and little residue;

 Special design sealing system of discharging door, good sealing and no leakage;

Multi-channel liquid adding system to meet multi-liquid adding demand of customer.

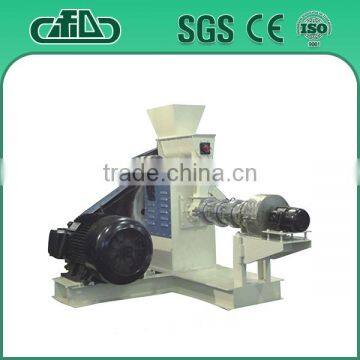

Name: 9PK-135 Single Screw Extruder
Power（kw）：75

Overall dimensions (mm) ：2150*1600*1730

Main shaft speed(r/min)：600

Screw diameter(mm)：Ø135

Capacity(kg/h)：800-1100

AdVantages

1. Screw adopts modular structure single and double thread can be combined freely.

2. The design of split screw enables quick and easy recovery after unfortunate blockage, convenient to dismounting;

3. The screw sleeve is supported by an adjustable suspension system which allows the machine to be opened and reassembled without loss of alignment.

4. The screw sleeve is supported by an adjustable suspension system which allows the machine to be opened and reassembled without loss of alignment.

5. Dry puffing process, adopts self-heating method, no need steam system, is more aligned with user’s actual needs.
