Cheap Price fish food processing machine

                                        Cheap Price fish food processing machine

1. Full automatic fish food processing machine Description:
Floating fish feed pellet machine is suitable to make fish food processing machine (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)
1). All fish feed pellet machines are made of stainless steel.
2). The fish feed pellet making machine whole line fully continuous and automatic.
3). Datong provide basic fish food receip according to your require.
4). The final fish feed shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials for fish food pellet:
Most fish feed pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.
3.Full automatic floating fish food pellet making machine Main Features:
1. floating fish feed making machine adopting international advanced technology, the pellets are very even.
2.we can adjust the cutter to get the different diameter and the length
3.The Electric heating device improve the food expansion rate.
4.High temperature and high pressure can kill the salmonellosis andbacterial infections.
5. floating fish feed making machine can get the higher-protein animal feed.
6.The product of floating fish food machine can floating in water about 12 hours.
7.The pellets no pollution and easy for working members to observe.
8. floating fish feed making machine novel design, unique, simple structure, easy to install and easy to operate.
a. Raw Materials: adopts corn flour, fish meal as raw materials
b. Products: different shapes are made by adjusting the dies from extruder
c. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---2ton/h

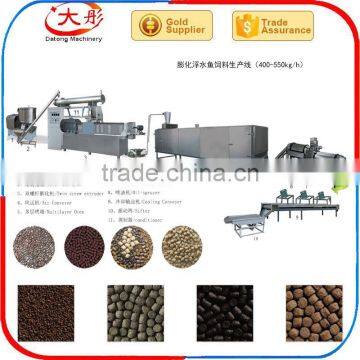

d. Full automatic floating fish feed pellet making machine Flow chart:
  Mixing system---Extrusion system---Drying system---Flavoring system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

Mixer

1.Main motor: 3.0kw 2. Size: 1.0×0.7×1.0(m)
3. Output: 20kg-30kg/time
Functions:
Mixer makes the raw material which adding water and liquid chemical additive fully mixed equally. the machine mixes the flour and prepares them ready to be used in the next step.

Screw Conveyor

Output: 0-150kg/h
Main motor:1.1kw
Size: 2500*600*2300mm
Function:
Screw conveyor can not only convey on the level but also by any angel these materials can be conveyed in the stainless steel roller without leaking, dust pollution.

SLG65 Fish feed extruder

Installed Capacity:35.0kw Drive Motor:22.0kw;
Feeding:0.75kw; Oil-pump: 0.37kw;
Cutting: 0.75kw; Output: 100-150kg/h
Dimension: 2400*850*1750mm

Air conveyer

Main Motor:1.1kw

Size:2.5x0.5x2.5 (m)
Functions:
1.Air conveyor conveys the food relying on the wind-force from the blower.
2.It is more suitable for the long distance conveying.

3 Layers dryer (5.4m)

Size:5.4x1.3x2.0 (m)

Output:100-150kg/h
Heat Type:Electricity heater

Intall power: 27.0kw
Functions:
This dryer can be used to bake and dry the food. It can bake all kinds of the inflating food,pet food, TVP/TSP food, peanut, nut, chew nut and so on.

Hoister &Single Drum&Oil sprayer

Hoister: Food safte belt for material touch place
Main Motor:0.74kw Size:2.5x0.6x1.7(m)
Convey the product from dryer to roller.
Single Drum: Surface: Stainless steel Output:100-150kg/h
Size:2.3x0.7x1.5(m) Main power: 0.75kw
Oil sprayer: Surface: Stainless steel Output:100-150kg/h
Size:0.7x0.6x0.8(m) Main heat power:3kw Main motor:0.37kw
