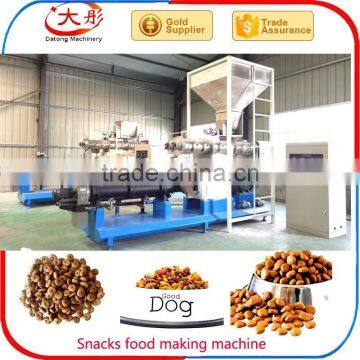

Hot selling dog food pellet making machine

                      Hot selling dog food pellet making machine

1. dog food pellet making machine Description:
dog food making machine  is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)
1). All pet food equipments are made of stainless steel.
2). Thepet  food whole line fully continuous and automatic.
3). Datong provide basic fish food receip according to your require.
4). The fina pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials for pet food pellet:
Most pet food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.

dog food pellet making machine  Main Features:

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double screw extruder produce all kinds of pet food by changing the mold.
4) Running in a high automatization and intellectualization,no pollution
5) Mxier-extruder-dryer-flavoring machinery-cooling machinery-packing machinery .

6)Various models to meet different output capacity requirements.
7)Flexible configurations to meet different produce, budget and workshop layout requirement.
8)Vast raw material range to produce different final products by only one production line.
9)Different shapes and appearances of final products can be made by changing different modules in extruder.
10)High automation and accurate control system to save labor cost and improve the quality of final products.
11)Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
12)Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
13).Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
14).Food-grade stainless steel. Neatness and easy clean.

Machine Parts

Name: Food shapes die/mould

Brand: Datong

Original: China

We can design the mould according to customer require.

 High quality stainless steel; high-chromium alloy steel; wearable carbon steel.

Hardness: HRC 52-56
Die hole processing: Germany gun drilling
Heat treatment: Vacuum quenching

Main Features

Name: dog food making machine
Brand: DATONG

1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed φ1.2-φ12 can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.

Machine Parts

Belt width1300mm & above
Drying length10m~140m Applied temperature(℃)30~240
Drying time5~30 mins   Number of fans3~ 16 pcs
Drying capacity(TPH)0.4~10.0 ton  OVerall dimension8000*2200*3400 ~ 22500*3900*4500mm

Weight5~20 ton  StructureMultiple stainless steel  belt
Feeding speed0.05-0.5 m/s    Installed power13.5~126Kw
Steam consumption (t/h)0.4~4.0
Application scopeFood industry,Feedstuff,Agricultural Products, ApplicationGrain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc

Main Features

Name: Flavouring system
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.
