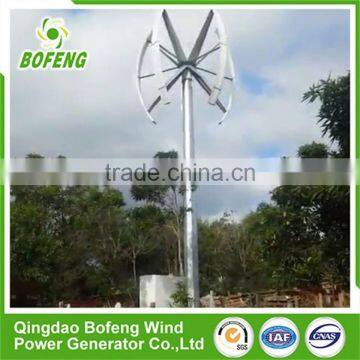

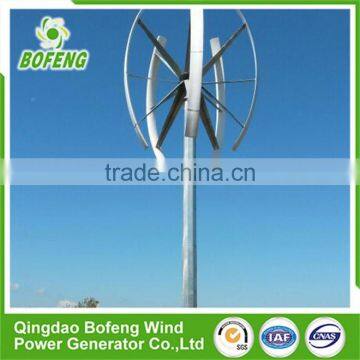

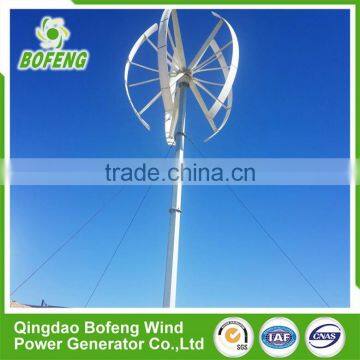

China Exporter Korea Style maglev 5kw vertical wind generator home

Power(w)

5000

Rated wind speed (m/s)

11

Rotor diameter(m)

4

Start-up wind speed (m/s)

3

Height of blade(m)

3.8

Range of working wind speed(m/s)

3-25

Material of blades and numbers

Glass Fiber Reinforced Plastic/3

Survival wind speed (m/s)

50

Rated rotor speed (m/s)

170r/min

Output Voltage

AC110/220V

Speed regulation method

Electromagnetic control

Stop method

Electromagnetic brake

Wind energy utilized   efficient

30%-40%

Sweep wind area

12.56m2

Range of working temperature

-45℃-60℃

Suggested supporting battery

18pcs12v120ah

Top weight (kg)

485kg

Tower type and height

Free standing tower/8m

 (W)Rated out power

5KW

 (RPM)Rated Rotation Speed

170

 (A)Recified DC current at Rated Output

15

 (N.M)Requied Torque Ar Rated Power

<115

 (Ohms)Phase Resistance

12

 (mm)Output Wire Square  Section

80

 Insultation:

F

 Generator configuration

Three phase star conected output

 Design Lifetime:

>20  Year

 (Kgs)Weight

120

 (NM)Starting Torque

≤9.6

 Bearing Type:

High standard NSK Bearing

 Shaft Material

High standard Stainless steel

 Outer Frame Material

spheroidal-graphite cast iron

 Fasteners(nuts and bolts)

High standard Stainless steel

 Winding Temperature Rating:

180 Degarees Celsius

Product Model

5Kw

Rated Battery Voltage

220V

Rated Wind Turbine Maximum Power

5KW

45A

Rated Wind Turbine Maximum Instantaneous Input Power

10KW

Unload Voltage(factory default)

252V

Unload Current (factory default)

25A

Rated PV Power

1500W

Control Mode

PWM

Display Mode

LCD

Display Parameters

Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc

Range of working Temperature &Humidity

-20~+55℃/35~85%RH(Without Condensation)

Quiescent Current

≤30mA

In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.

Rated Output Capacity

5kVA

Rated Battery Voltage(V)

220

Over Voltage Point(V)

306

Over Voltage Recovery Point(V)

297

Under Voltage Point(V)

189

Under Voltage Recovery Point(V)

216

Waveform Distortion Rate

≤5%

Output Frequency(HZ)

50±0.05

Inverter Efficiency

90%

Display Parameters

Battery Voltage ,Output Voltage, State Parameters

Over-load Capacity

120% 1minute

Working Mode

Continuous, Intelligent

Cooling Mode

Fan Cooling

In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement.
